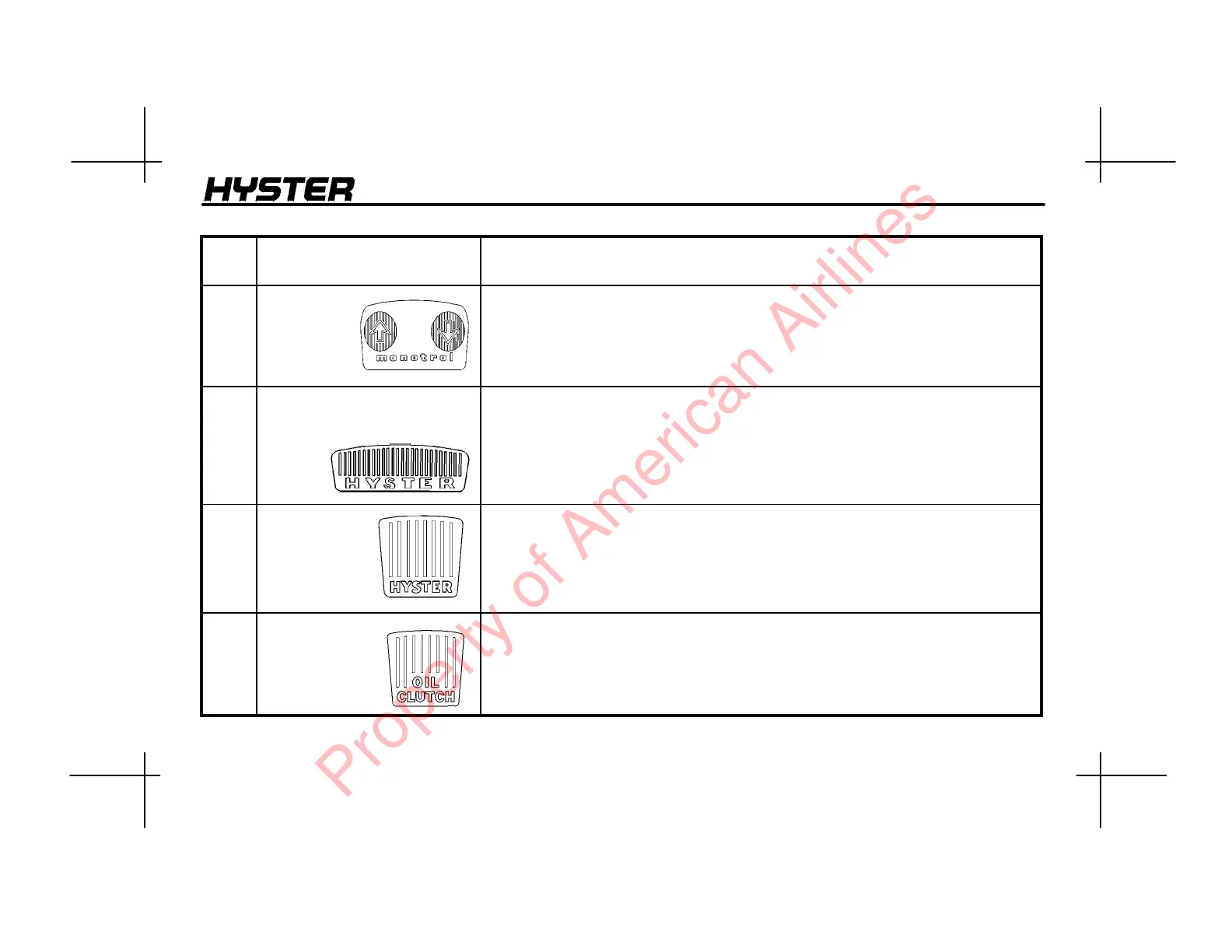

MODEL DESCRIPTION
21
ITEM
NO.
ITEM FUNCTION
19 MONOTROL
Pedal
(Powershift
Transmission
Only)
The MONOTROL pedal controls the speed and direction of the lift truck.
Pushing on the right side of the pedal causes the lift truck to move in
REVERSE. Pushing on the left side of the pedal causes the lift truck to move in
FORWARD. The speed of the engine increases as the pedal is depressed.
20
Inching/Brake Pedal
(Powershift Transmission)
By varying the position of the inching/brake pedal, the operator can move the
lift truck slowly while a high engine speed is used for lifting loads. Completely
depressing the pedal disengages the transmission and applies the service
brakes. The engine can be started when the inching/brake pedal is fully
depressed.
21
Brake Pedal
(Manual
Transmission)
(S135--155XL
Only)
This pedal, controlled by the operator’s right foot, controls the application of the
service brakes.
22
Clutch Pedal
(Manual
Transmission)
(S135--155XL
Only)
The clutch pedal is located to the left of the brake pedal. This pedal, controlled
by the operator’s left foot, controls clutch engagement for the transmission and
inching operations.
