MAINTENANCE
54
2. Use a hydraulic jack to raise the steering tires. Make
sure that the jack has a capacity of at least 2/3 of the total
weight of the lift truck as shown on the Nameplate.
3. Put the jack under the steering axle or frame to raise
the lift truck. Put blocks under the frame to support the lift
truck.

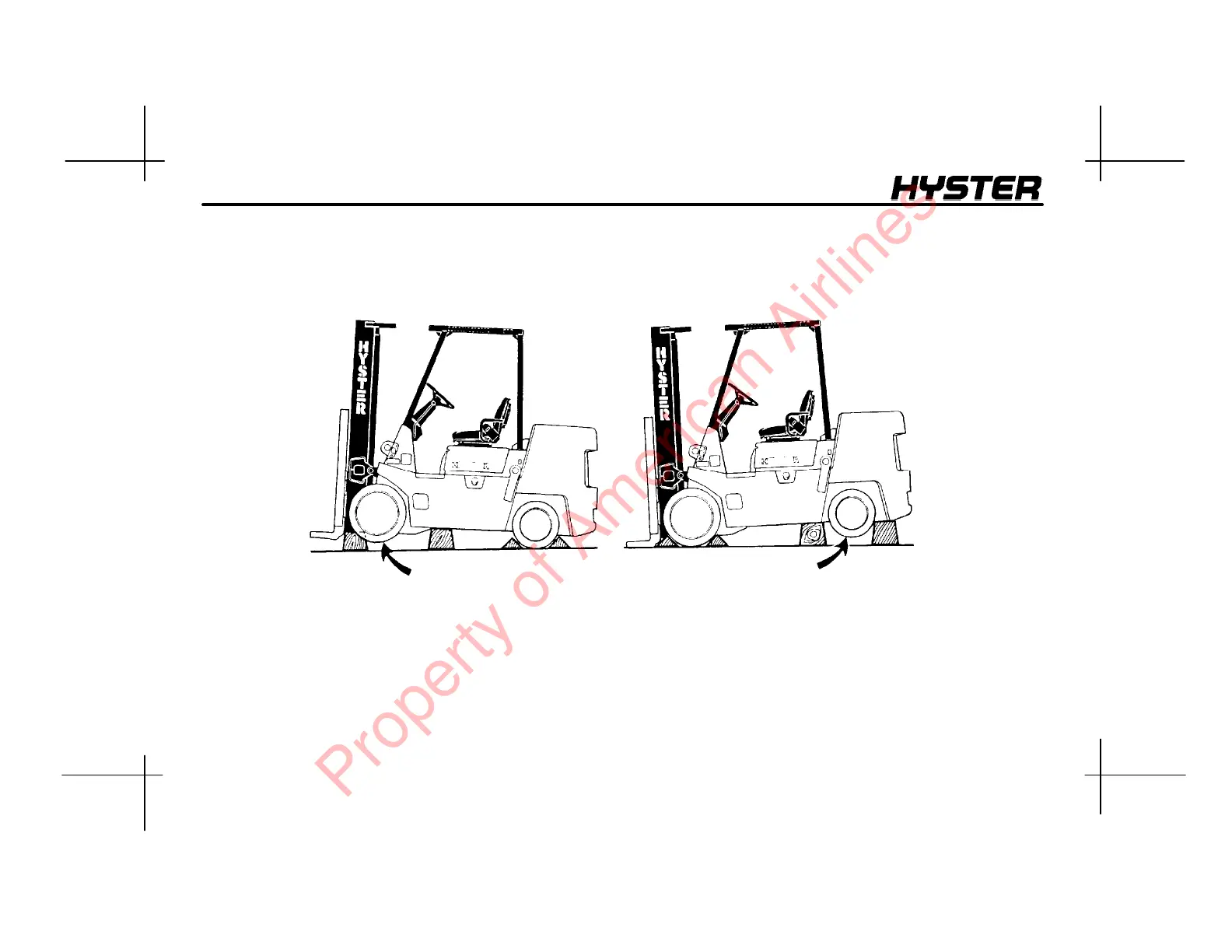

FIGURE 6. PUT THE LIFT TRUCK ON BLOCKS
12177
DRIVE TIRES
STEERING TIRES
