MAINTENANCE
88

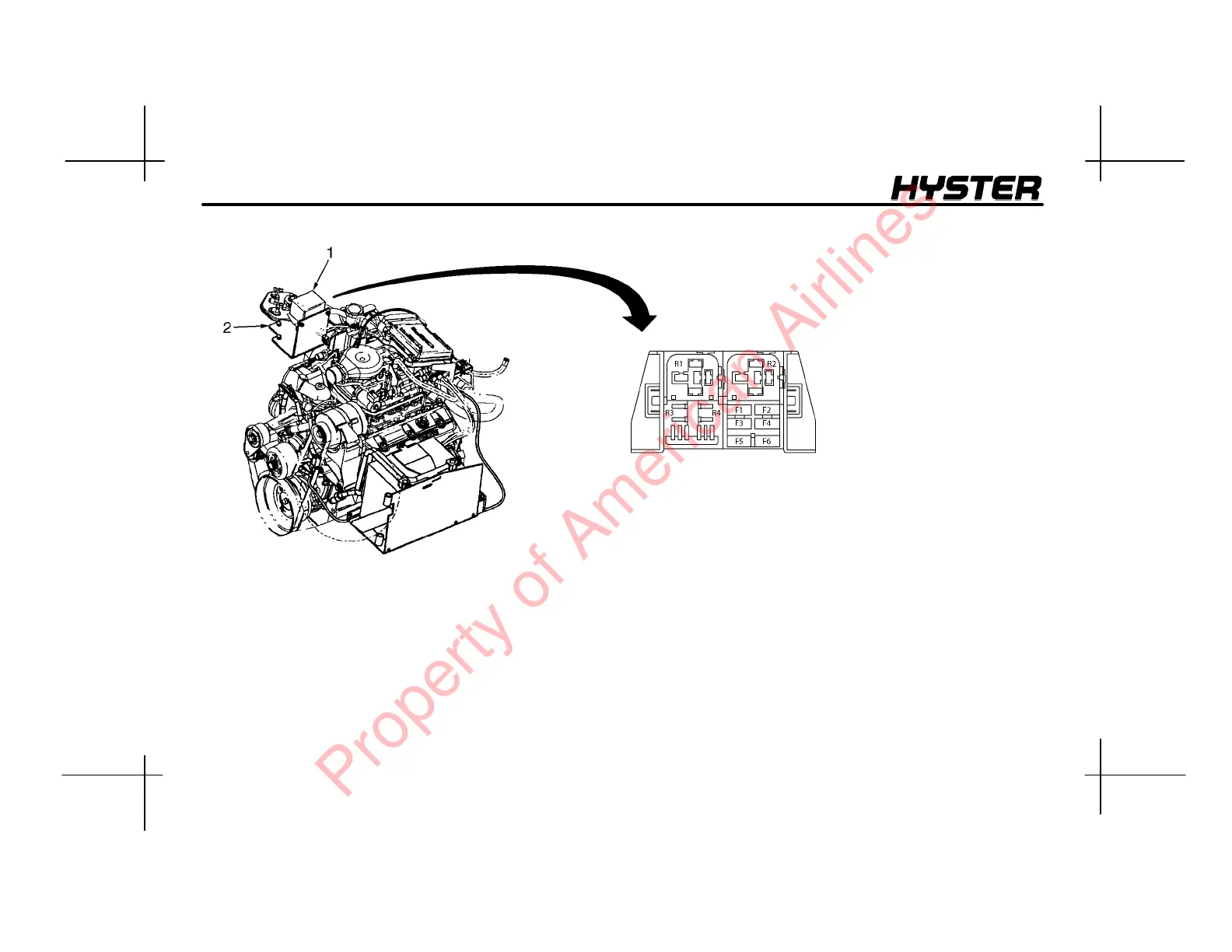

FIGURE 21. ENGINE COMPARTMENT FUSES AND RELAYS, GM 4.3L ENGINE
(S135--155XL, S135--155XL
2
AND S135XLS [C024] TRUCKS ONLY)
HO190288
1. FUSE PANEL
2. MOUNTING BRACKET
F1. 20 AMPS
F2. 5 AMPS
F3. 15 AMPS
F4. 15 AMPS
F5. SPARE
F6. SPARE
R1. STAR TER RELAY
R2. POWER RELAY
R3. FUEL PUMP RELAY
R4. SPARE
