Hyster H90FT - Page 17

See Figure 16 for lift truck models
• H4.0FT5/FT6; H4.5FTS5, H4.5FT6,
H5.0-5.5FT (H80, 90, 100, 110, 120FT)
(R005, S005, U005)
1. OUTBOARD BEARING CONE
2. OUTBOARD BEARING CUP
3. WHEEL HUB
4. INBOARD BEARING CUP
5. INBOARD BEARING CONE
6. SEAL
7. WHEEL BEARING SUPPORT

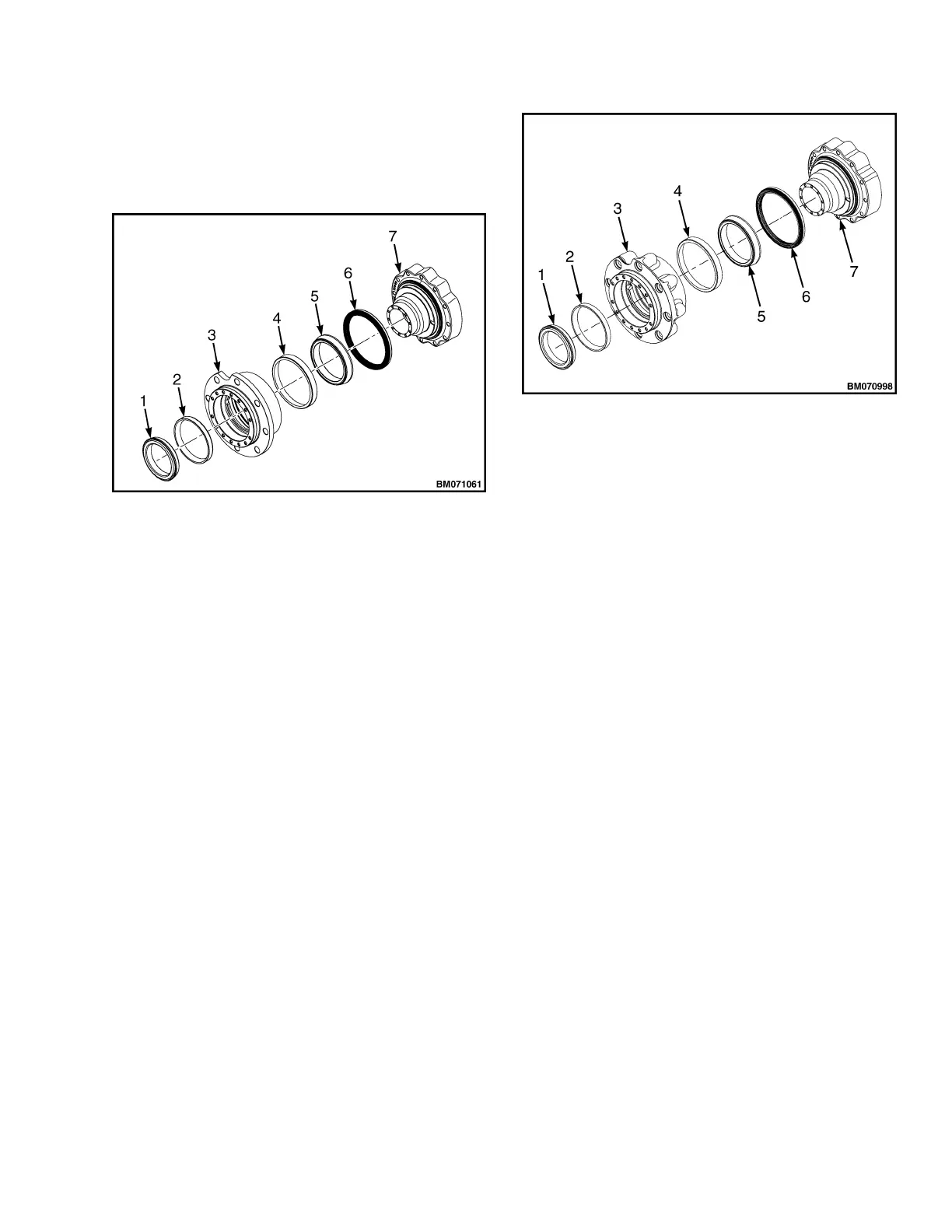

Figure 15. Wheel Hub Bearings, Seal, and Bearing
Support for Lift Truck Models S4.0, 4.5, 5.5FT,
S5.5FTS (S80, 100, 120FT; S80, 100FTBCS;
S120FTS; S120FTPRS) (H004, J004)
1. OUTBOARD BEARING CONE
2. OUTBOARD BEARING CUP
3. WHEEL HUB
4. INBOARD BEARING CUP
5. INBOARD BEARING CONE
6. SEAL
7. WHEEL BEARING SUPPORT
Figure 16. Wheel Hub Bearings, Seal, and Bearing
Support for Lift Truck Models H4.0FT5/FT6;
H4.5FTS5, H4.5FT6, H5.0-5.5FT (H80, 90, 100, 110,
120FT) (R005, S005, U005)
1400 SRM 1582 Reduction Gear Assembly
11
