NOTE: Perform Step 14 only if necessary. If wheel
studs are removed they will need to be replaced
with new wheel studs. It is recommended to place
an oversized socket or spacer under wheel stud be-
ing removed to support wheel hub's flange and pre-
vent warping during wheel stud removal.
14.
For lift truck models S4.0, 4.5, 5.5FT, S5.5FTS
(S80, 100, 120FT; S80, 100FTBCS; S120FTS;
S120FTPRS) (H004, J004), remove wheel studs
from wheel hub with a hammer or press. See
Figure 17.
Wheel studs for lift truck models H4.0FT5/FT6;
H4.5FTS5, H4.5FT6, H5.0-5.5FT (H80, 90, 100,
110, 120FT) (R005, S005, U005) can be removed
with correct size socket. See Figure 18.
1. WHEEL HUB
2. WHEEL STUD

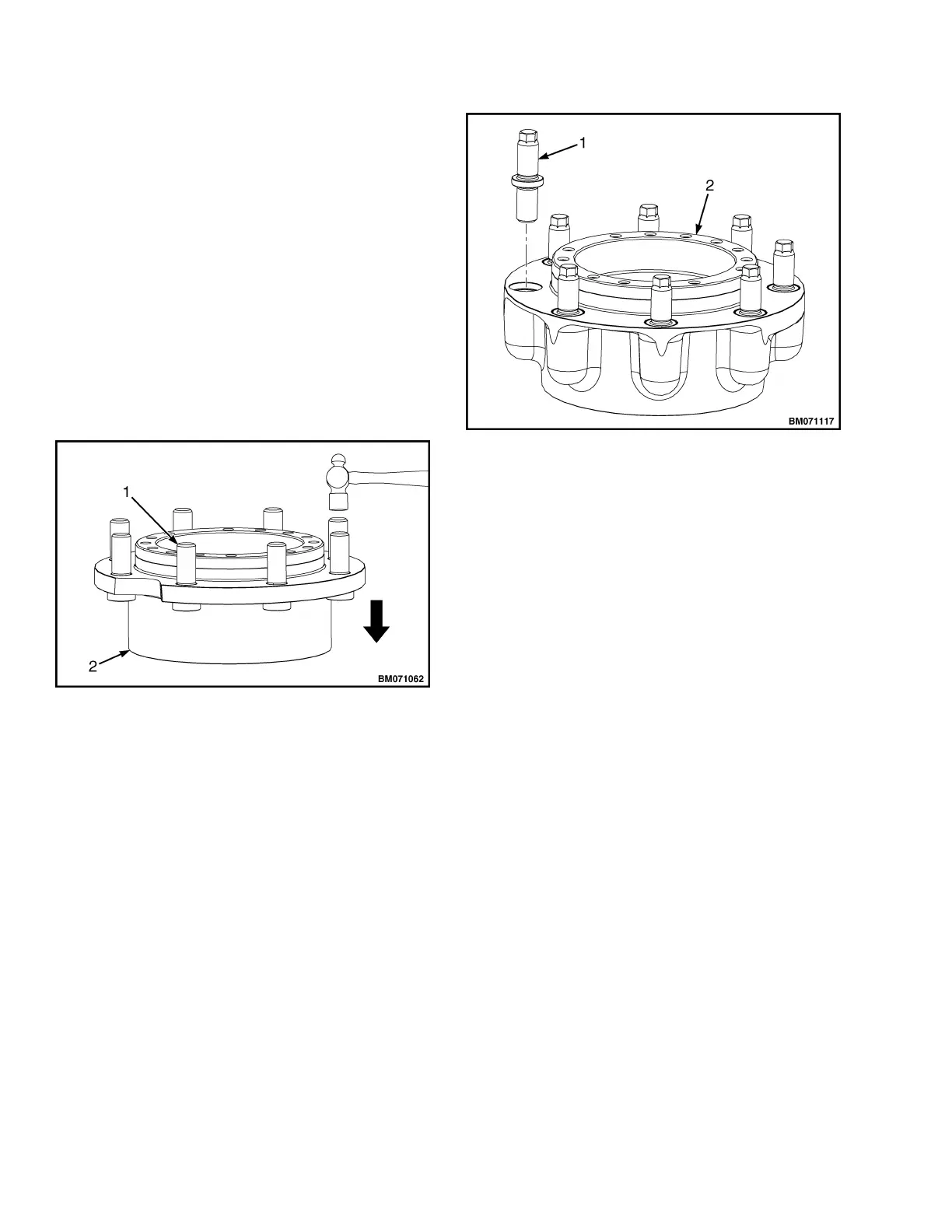

Figure 17. Wheel Studs Removal for Lift Truck
Models S4.0, 4.5, 5.5FT, S5.5FTS (S80, 100, 120FT;
S80, 100FTBCS; S120FTS; S120FTPRS) (H004,
J004)
1. WHEEL STUD
2. WHEEL HUB
Figure 18. Wheel Studs Removal for Lift Truck
Models H4.0FT5/FT6; H4.5FTS5, H4.5FT6,
H5.0-5.5FT (H80, 90, 100, 110, 120FT) (R005, S005,
U005)
Reduction Gear Assembly 1400 SRM 1582
12
