General
This manual covers the repair of the drive axle,
differential, and wet disc brakes.
IDENTIFICATION PLATE
See Figure 1.

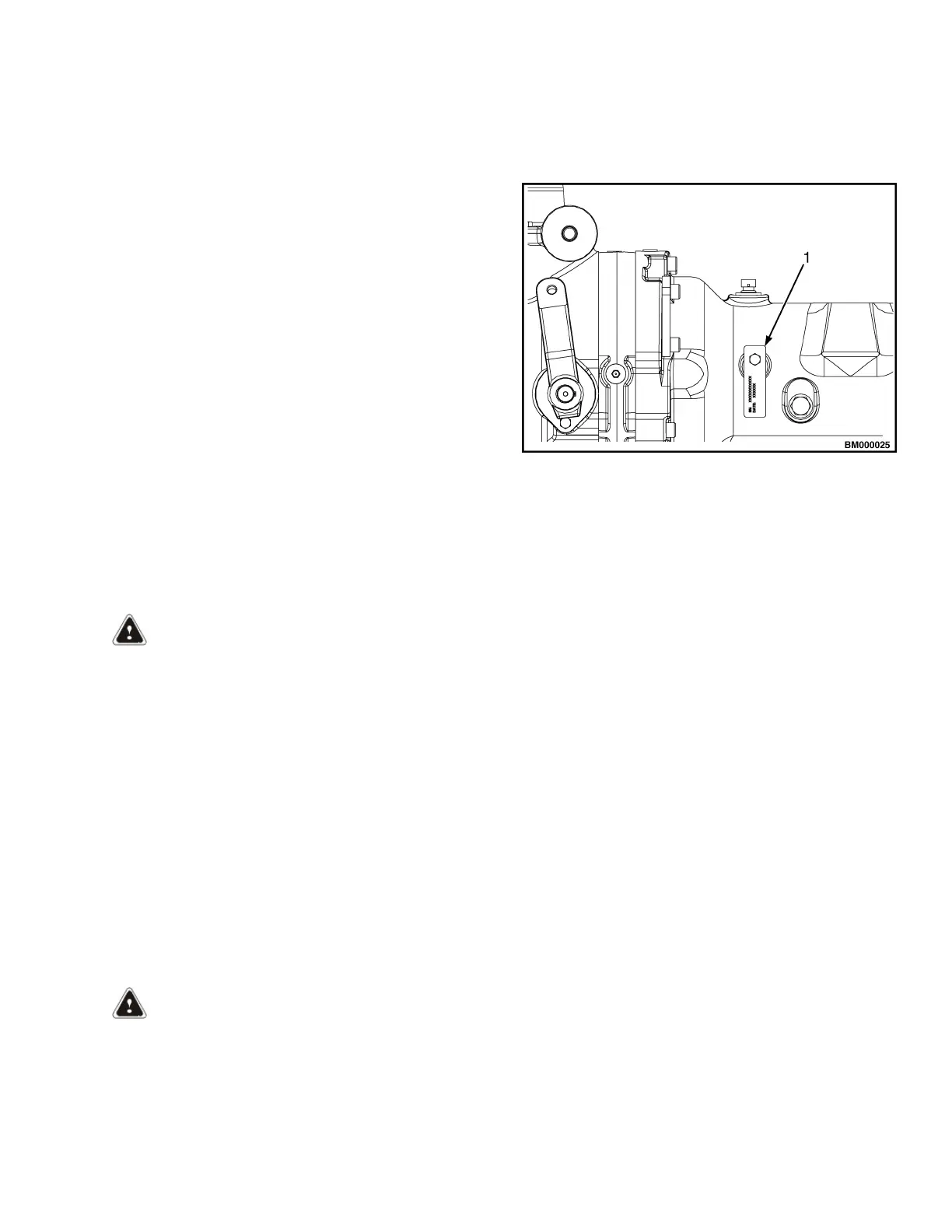

1. IDENTIFICATION PLATE
Figure 1. Identification Plate
Drive Axle Removal
WARNING
When putting the lift truck on blocks, make sure
the surface is solid, even, and level. Any blocks
used to support the lift truck must be solid, one-
piece units.
1.
Put blocks on each side (front and back) of
steering tires to prevent movement of lift truck.
2.
Raise lift truck and put blocks under frame so
that drive wheels do not touch floor. Put blocks
under counterweight for stability.
3.
Remove mast assembly as described in section
Mast Repairs (S/N A513, A514, A613, A614,
A702, A703, A704, A705, A706, A707, A751,
A752, B513, B514, B586, B587, B588, B589,
B590, B591, B749, B750, B751, B752, B753,
B754) 4000SRM1250.
WARNING
On lift trucks with pneumatic tires, completely re-
move air from tires before removing them from lift
truck. Air pressure in tires can cause tire and rim
parts to explode, which can cause serious injury
or death. Never loosen nuts that hold together in-
ner and outer wheel halves when there is air pres-
sure in tire.
4.
Remove wheels.
5.
Remove fill plugs on both sides of drive axle.
See Figure 2 for lift truck models
• S4.0, 4.5, 5.5FT, S5.5FTS (S80, 100,
120FT; S80, 100FTBCS; S120FTS;
S120FTPRS) (H004, J004)
See Figure 3 for lift truck models
• H4.0FT5/FT6; H4.5FTS5, H4.5FT6,
H5.0-5.5FT (H80, 90, 100, 110, 120FT)
(R005, S005, U005)
6.
Remove the drive axle trumpet arm (right side)
fill/level plug.
See Figure 2 for lift truck models
• S4.0, 4.5, 5.5FT, S5.5FTS (S80, 100,
120FT; S80, 100FTBCS; S120FTS;
S120FTPRS) (H004, J004)
1400 SRM 1582 General
1
