See Figure 3 for lift truck models
• H4.0FT5/FT6; H4.5FTS5, H4.5FT6,
H5.0-5.5FT (H80, 90, 100, 110, 120FT)
(R005, S005, U005)
7.
Remove the drain plugs to drain the oil into a
suitable container.
See Figure 2 for lift truck models
• S4.0, 4.5, 5.5FT, S5.5FTS (S80, 100,
120FT; S80, 100FTBCS; S120FTS;
S120FTPRS) (H004, J004)
See Figure 3 for lift truck models
• H4.0FT5/FT6; H4.5FTS5, H4.5FT6,
H5.0-5.5FT (H80, 90, 100, 110, 120FT)
(R005, S005, U005)
8.
Remove the parking brake cable. Refer to the
section Wet Brakes - NMHG 1800SRM1597.

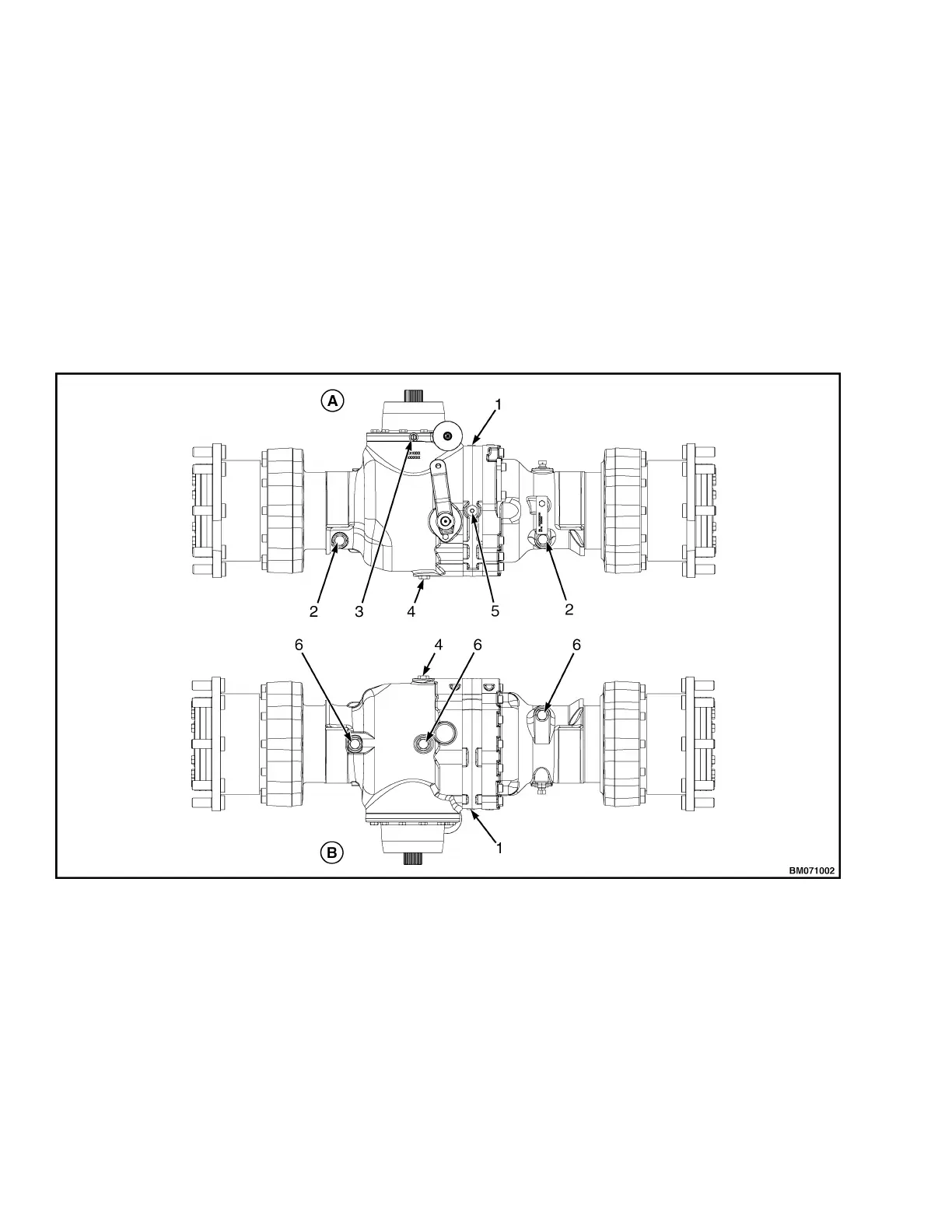

A. TOP VIEW SHOWN B. BOTTOM VIEW SHOWN
1. SERVICE BRAKE PORT
2. FILL PLUG
3. OIL BREATHER
4. FILL/LEVEL PLUG
5. BRAKE BLEEDER VALVE
6. DRAIN PLUG
Figure 2. Drive Axle Drain and Fill/Level Plugs for Lift Truck Models S4.0, 4.5, 5.5FT, S5.5FTS, (S80, 100,
120FT; S80, 100FTBCS; S120FTS; S120FTPRS) (H004, J004)
Drive Axle Removal 1400 SRM 1582
2
