A.
TOP VIEW
B.
LEFT VIEW
1.
DRIVE END
2.
FORK END
3.
STRAP

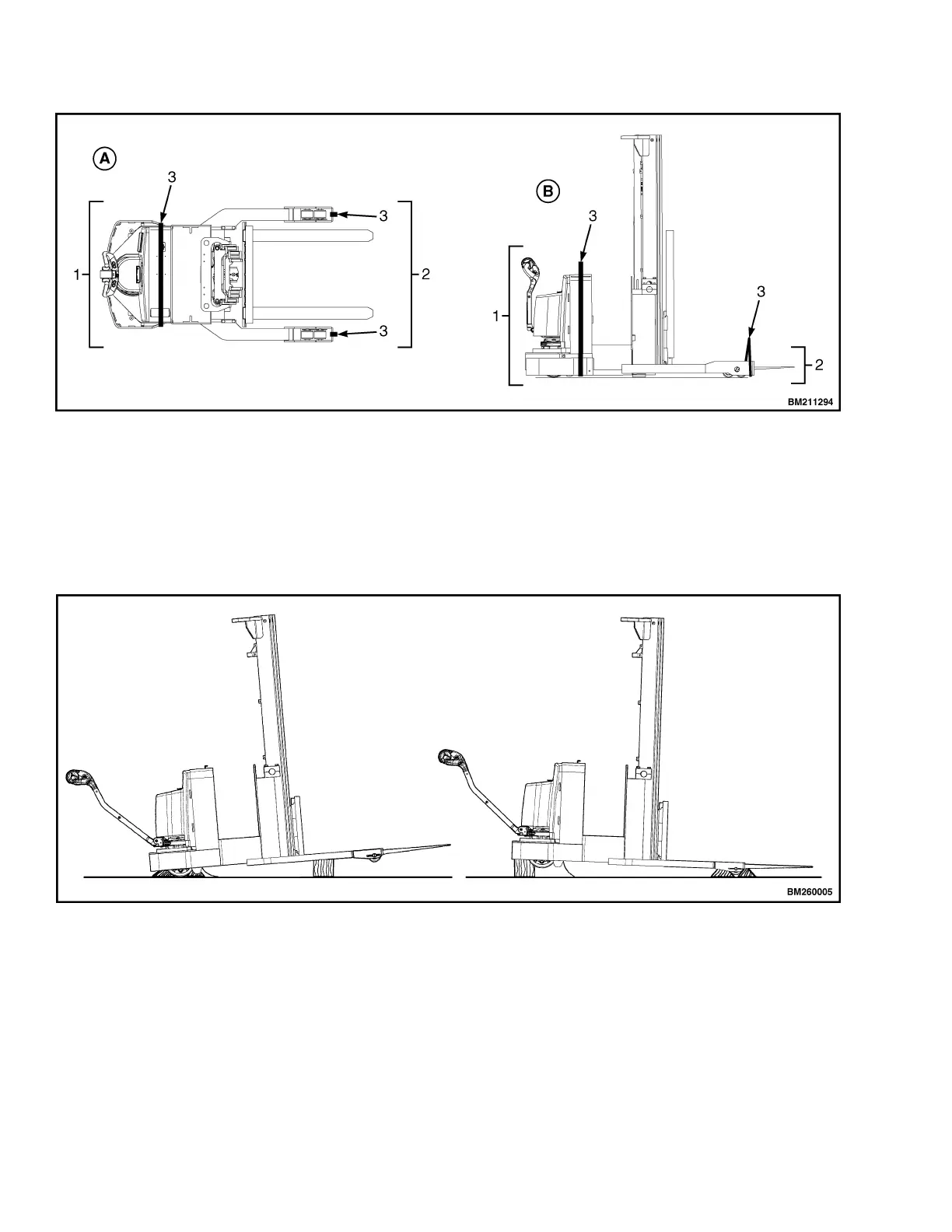

Figure 2. Lifting Points (W30-40ZA, W20-30ZR)
4.
Install additional blocks under the frame near
the drive tire. See Figure 3 and Figure 4.
Figure 3. Putting Lift Truck on Blocks (W30-40ZA and W20-30ZR)
General
8000 SRM 1027
4
9
11
Table of Contents
Table of Contents
4
General
7
How to Move a Disabled Lift Truck
7
How to Tow a Lift Truck
8
How to Put the Lift Truck on Blocks
9
How to Raise the Drive/Steer Tire
9
How to Raise the Load Wheels
11
How to Raise the Load Wheels (W25-30-40ZC)
11
Safety Procedures When Working Near Mast
12
Maintenance Schedule
14
Maintenance Procedures Every 8 Hours or Daily
21
Checks before Operation
21
How to Make Checks with Key Switch off
22
Safety Labels
22
Battery
23
Brake
24
Tires and Wheels
24
Mast, Forks, and Lift Chains
24
Reach Mechanism (W20/30ZR)
26
Other manuals for Hyster N30XMXDR3
Manual
48 pages
Safety Precautions Maintenance And Repair
14 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Hyster N30XMXDR3 and is the answer not in the manual?
Ask a question
Hyster N30XMXDR3 Specifications
General
Brand
Hyster
Model
N30XMXDR3
Category
Lifting Systems
Language
English
Related product manuals
Hyster H80FT
21 pages
Hyster W30-40ZA
48 pages
Hyster W20-30ZR
48 pages
Hyster W25-30-40ZC
48 pages
Hyster H90FT
25 pages
Hyster C454
48 pages
