Antenna Charger Power Adapter
Radio Battery Belt clip
Strap Documentation Kit
Documentation Conventions
For your better understanding of this manual, please
read the following conventions rst.
Instructional Icons
Icon Description
Note
Indicates references that can further
describe the related topics.
Caution
Indicates situations that could cause
data loss or equipment damage.
▼
Indicates that the function is unavailable
on PD70X TL digital portable radio.
Indicates functions that are available
on digital channel only.
Indicates functions that are available
on analog channel only.
Functions marked with no function
icons are available on both analog and
digital channels.
Notational Conventions
Convention Description
“ ”
The quotation marks enclose the name
of a software interface element. For
example, click “OK”.
Bold
The text in boldface denotes the name
of a hardware button. For example,
press the PTT key.
->
The symbol directs you to access a
multi-level menu. For example, to select
“New” from the “File” menu, we will
describe it as follows: File -> New.
Key Operation
Operation Denition
Short press To press a key and release it quickly.
Long press
To press a key for the preset time (2s
by default) and release it.
Hold To press a key and do not release it.

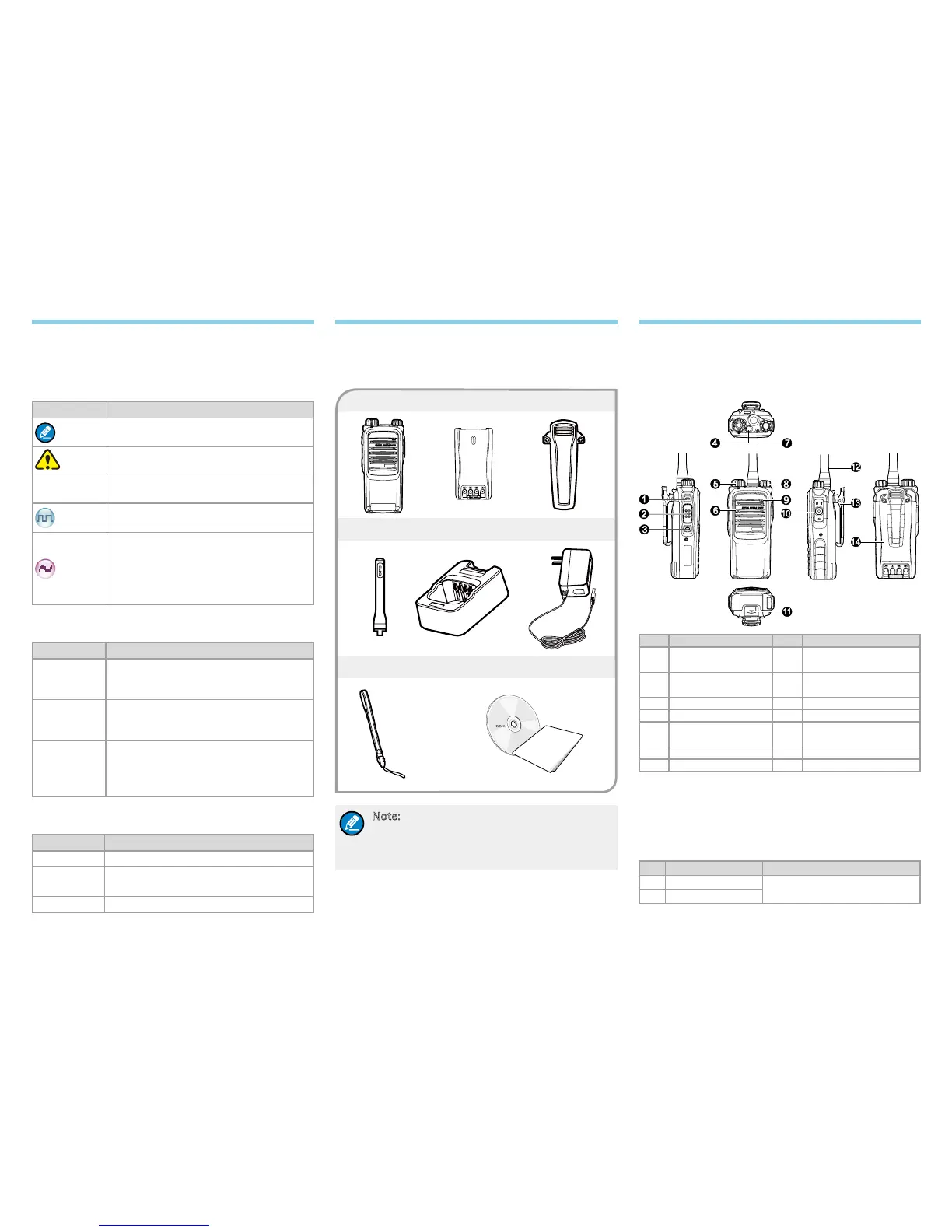

Items in the Package
Please unpack carefully and check that all items listed
below are received. If any item is missing or damaged,
please contact your dealer.
Note: The frequency band of the antenna is
marked on the label of the antenna; if not, refer
to the label on the radio for frequency band
information.
Product Overview
This section introduces the mechanical structure and the
programmable key features of this radio.
Product Controls
No. Part Name No. Part Name
1 SK1 (Side Key 1) 8
Power On-Off/Volume
Control Knob
2
PTT (Push-to-Talk)
Key
9 Microphone
3 SK2 (Side Key 2) 10 Accessory Jack
4 TK (Top Key) 11 Battery latch
5
Channel Selector
Knob
12 Antenna
6 Speaker 13 Belt clip
7 LED Indicator 14 Battery
Programmable Keys
For enhanced convenience, you may request your dealer
to program the keys SK1, SK2 and TK as shortcuts to
the functions listed below.
No. Shortcut Key Description
1 Zone Up
To select a zone quickly
2 Zone Down
To Next Page
