3-149

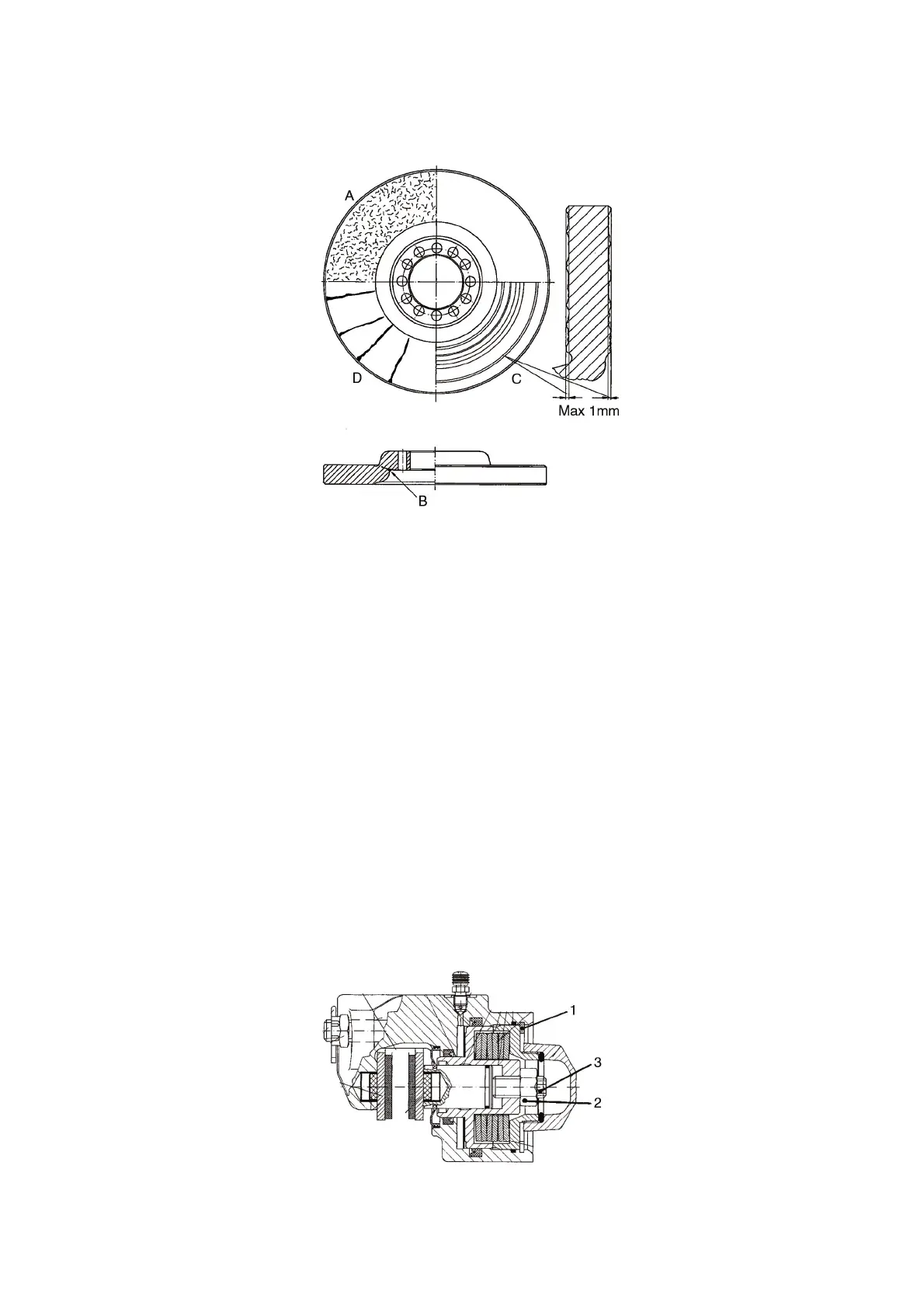

Brake disk
(9)
100D7XL78
A
Network - like formation of cracks admissible
B
Radially shaped crack not admissible
C
Uneven brake surface characteristics below 1.0mm admissible
D
Continuous cracks not admissible
Spring - loaded sliding caliper brakes
Safety notes :
·
Warning
Before commencing work on the parking brake, ensure that no unintended machine movement
can happen when the braking effect is removed.
·
·
Danger
The parking brake is under spring tension. Parts could become loose and fly out suddenly if
improper brake opening. Therefore release the lock nut(2) and turn the adjusting screw(3)
counter - clockwise until the spring set is released before disassembly of the circlip(1).
(10)
100D7XL79
