Hyundai 130D-7E User Manual

5-36

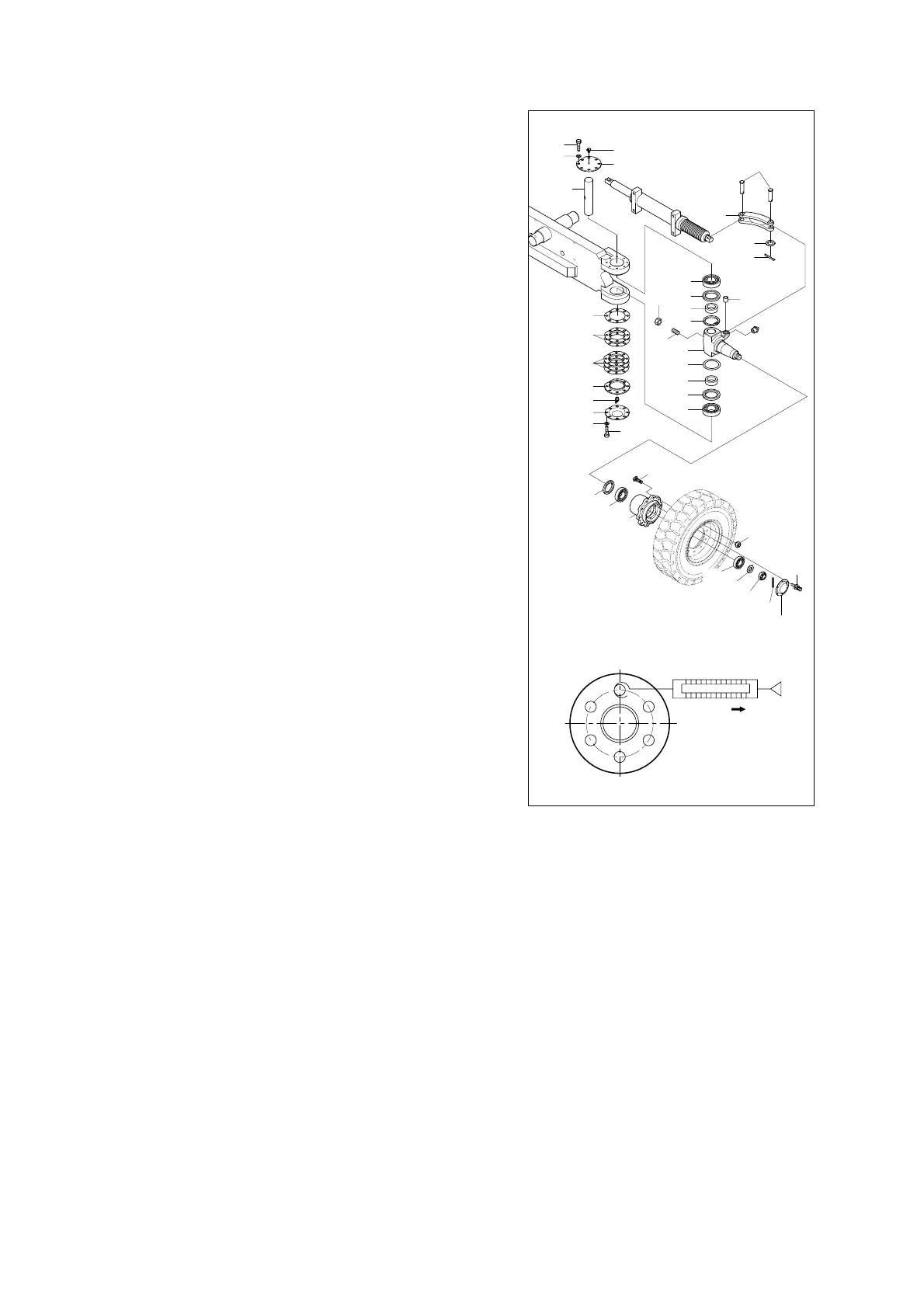

ASSEMBLY
In reassembling, have all parts washed, grease
applied to lubricating parts, and all expendable
items such as oil seal and spring washers
replaced by new ones.
Perform the disassembly in reverse order.
Tighten the set screw(1-8) of king pin(1-6).
There is a notch in the middle of the king pin
(1-6), make sure that this notch is on the set
screw side.
Do not hammer to drive in taper roller bearing
(1-3) because it will break.
Always use drive-in tool.
Hub
Mount oil seal(1-18) and inner race of tapered
roller bearing(1-19) on the knuckle.
The bearing should be well greased before
assembling.
Install the outer race of the bearing(1-3) in the
wheel center and assemble to the knuckle.
Put washer(1-20) in place, tighten with nut(1-21)
and locked with split pin(1-22). In locking with
split pin, locate the hole for the split pin by
turning the nut back 1/6 of a turn. Adjust the
preload of bearing.
Mount the hub cap(1-23).
Bearing should be well greased before assem-
bling.
4)
※
(1)
(2)
(3)
(4)
①
②
③
④
1-3
1-4
1-7
1-47
1-2
1-8
1-9
1-5
1-7
1-4
1-3
1-28
1-27
1-26
1-29
1-30
1-6
1-46
1-16
1-15
1-14
4
1-24
1-23
1-22
1-21
1-20
1-3
1-18
1-19
1-25
1-17
4~6kgf
1-48
1-16
1-15
1-14
1-10
1-11
1-12
1-13
110D7ESS28
