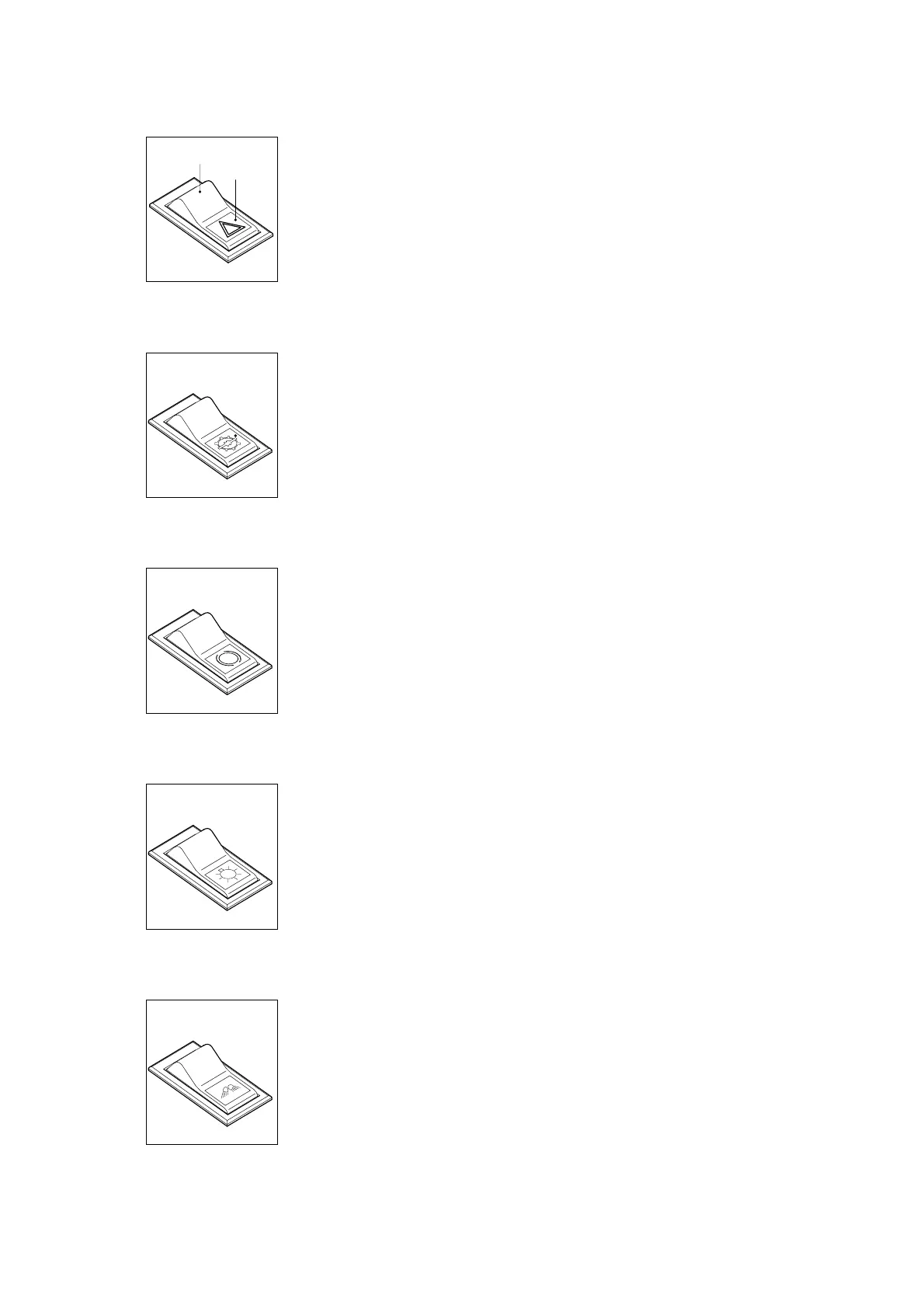

HAZARD SWITCH
Use for parking, or loading truck.
If the switch is left ON for a long time, the battery may be
discharged.
ON
OFF
2)
(1)
※
160D7CD42
INCHING SWITCH
If this switch is pressed, inching operation is applied to inching
pedal.
Also, inching lamp on the cluster is illuminated.
3)
(1)
(2)
160D7CD43
PARKING BRAKE SWITCH
If this switch is pressed, the parking brake is applied and the gauge
panel warning lamp will comes ON.
When operating the gear selector lever, be sure to release the
parking brake. I
f the truck is operated with the parking brake
engaged, the brake will overheat and may cause the brak
e
system to go out of order.
P
4)
(1)
※
160D7CD44
MAIN LIGHT SWITCH
This switch is used to operate the clearance lamp and head light by
two steps.
·
First step : Clearance lamp and cluster illumination lamp comes
ON. Also, all of the indicator lamps of switches
come ON.
·
Second step : Head light comes ON.
5)
(1)
160D7CD45
WORK LAMP SWITCH
This switch is used to operate the front and rear work lamps by two
steps.
·
First step : Front work lamp comes ON.
·
Second step : Rear work lamp comes ON.
6)
(1)
160D7CD46
