3-2
·

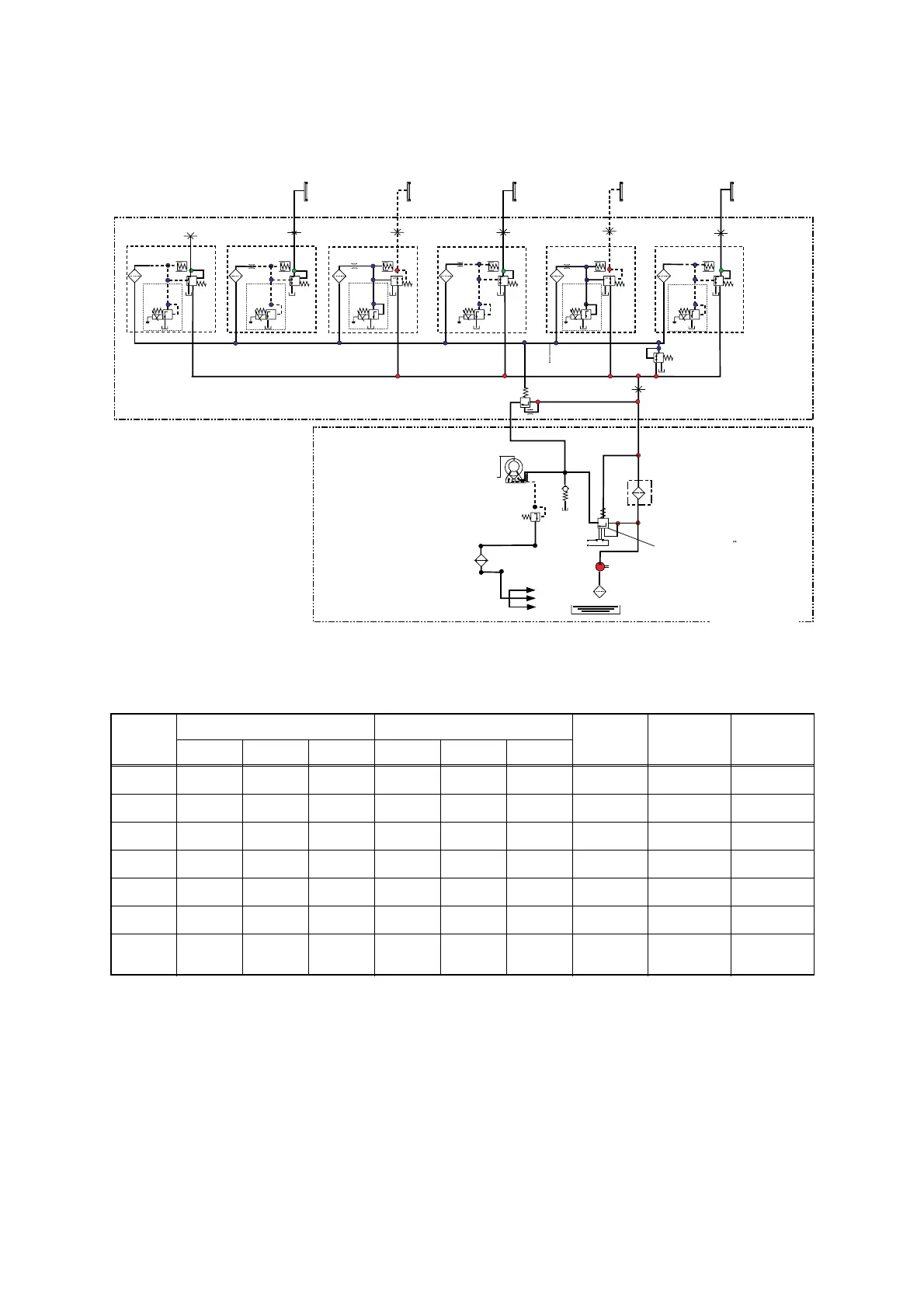

HHydraulic circuit
KR
K1
K3
KV
K2
P2
P3
P4
P5
P6
B
D
NFS
Y1
Oil sump
Pump
Filter
Lubrication
Converter
Con.
safety
valve
Main pressure
valve 16+2.5bar
Pressure
reducing
valve
Temp
sensor
Main oil circuit
Valve block control circuit
B
D
NFS
Y2
B
D
NFS
Y3
B
D
NFS
Y4
B
D
NFS
Y5
B
D
NFS
Y6
16+2 bar
4.3+3 bar
11+2 bar
A 57
C 58
D 56
F 60
P1
E 55
B 53
Back
pressure
valve
K 65
9 bar
By pass valve
5.5 bar
D507PT31
Speed
KV, K1 KV, K2 KV, K3 KR, K1 KR, K2 KR, K3 - - -
Clutch
engaged
Y1
Y2
Y3
Y4
Y5
Y6
NFS Follow-on slide
D Vibration damper
B Orifice
P1 Not used
P2 Proportional valve KR
P3 Proportional valve K1
P4 Proportional valve K3
P5 Proportional valve KV
P6 Proportional valve K2
Y1~Y6 Pressure regulators
●
●●
●
●
●
●
●
●
●
●
●
-
-
-
-
-
-
60
55
56
58
53
57
F
E
D
C
B
A
Neutral
No. of
measuring
points
Positions
on the
valve block
F1 F2 F3 R1 R2 R3
Forward Reverse
