8-16
Emergency Situations
OAI3079009

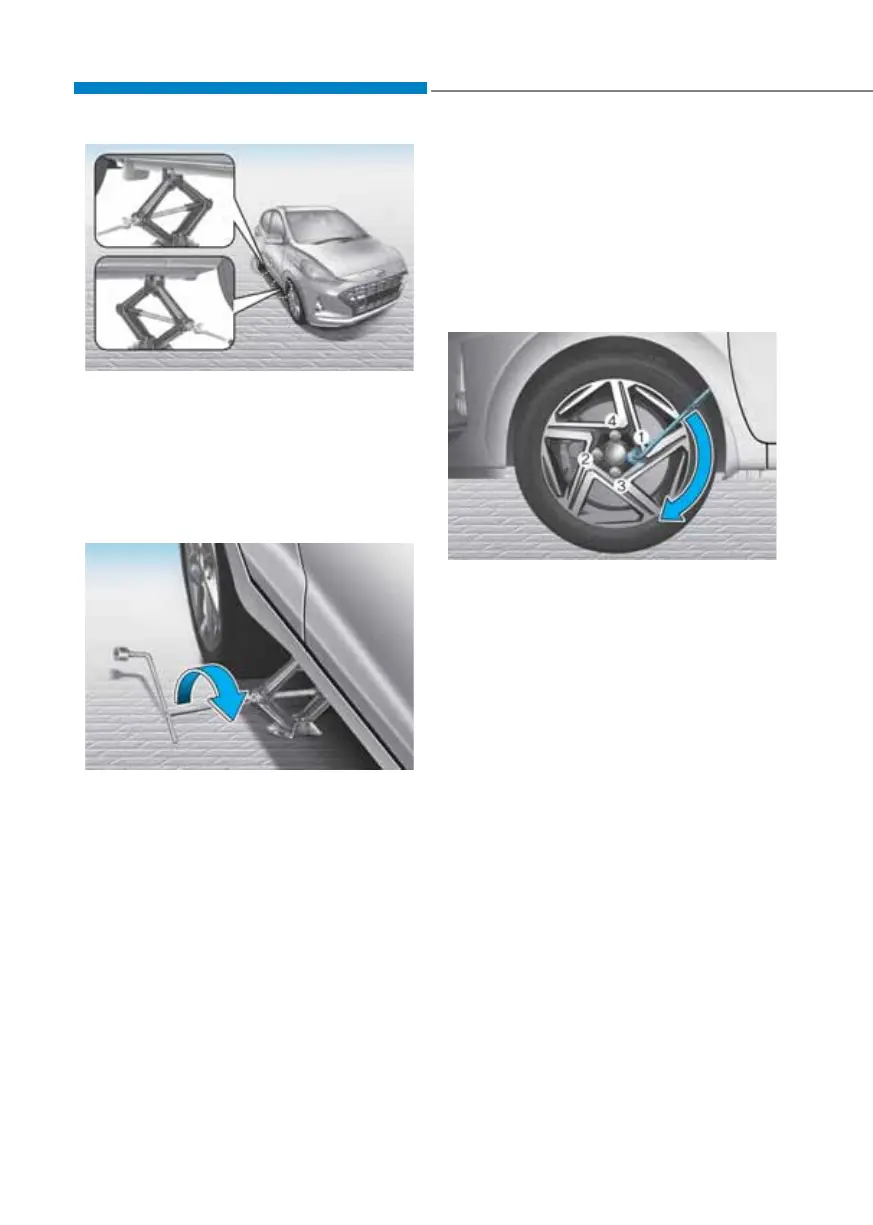

7. Place the jack at the designated
jacking position under the frame
closest to the tire you are changing.
The jacking positions are plates
welded to the frame with two tabs
and a raised dot. Never jack any other
position or part of the vehicle.
OAI3I071021
8. Insert the jack handle into the jack and
turn it clockwise, raising the vehicle
until the tire clears the ground. Before
removing the wheel lug nuts, make
sure the vehicle is stable on the jack.
9. Loosen the lug nuts with the wheel
lug nut wrench and remove them with
your fingers. Remove the wheel from
the studs and lay it flat on the ground
out of the way. Before removing the
wheel lug nuts, make sure the vehicle
is stable on the jack.
10. Install the spare tire onto the studs of
the hub.
11. Tighten the lug nuts with your fingers
onto the studs with the smaller end of
the lug nuts closest to the wheel.
12. Lower the vehicle to the ground
by turning the jack handle
counterclockwise.
OAI3082103
13. Use the wheel lug nut wrench to
tighten the lug nuts in the order
shown. Double-check each lug nut
until they are tight. After changing
tires, we recommend that an
authorized HYUNDAI dealer tighten
the lug nuts to their proper torque as
soon as possible. The wheel lug nut
should be tightened to 11~13 kgf.m
(79~94 lbf.ft).
