SECTION 3 POWER TRAIN SYSTEM
GROUP 1 STRUCTURE AND OPERATION
40
51 52
41
33
A
A
43
B
42
VIEW B
11
12
25
1
39
10
2
14
15
37
44
13
7
34
45
49
48
47
22
29
5150
20
21
23
6
3
36
19
18
38
52 51
33
32
9
4
17
28
35
27
31
51 50
8
26
16
30
50
51
46
49
48
24
5
SECTION A - A
BR147DU100

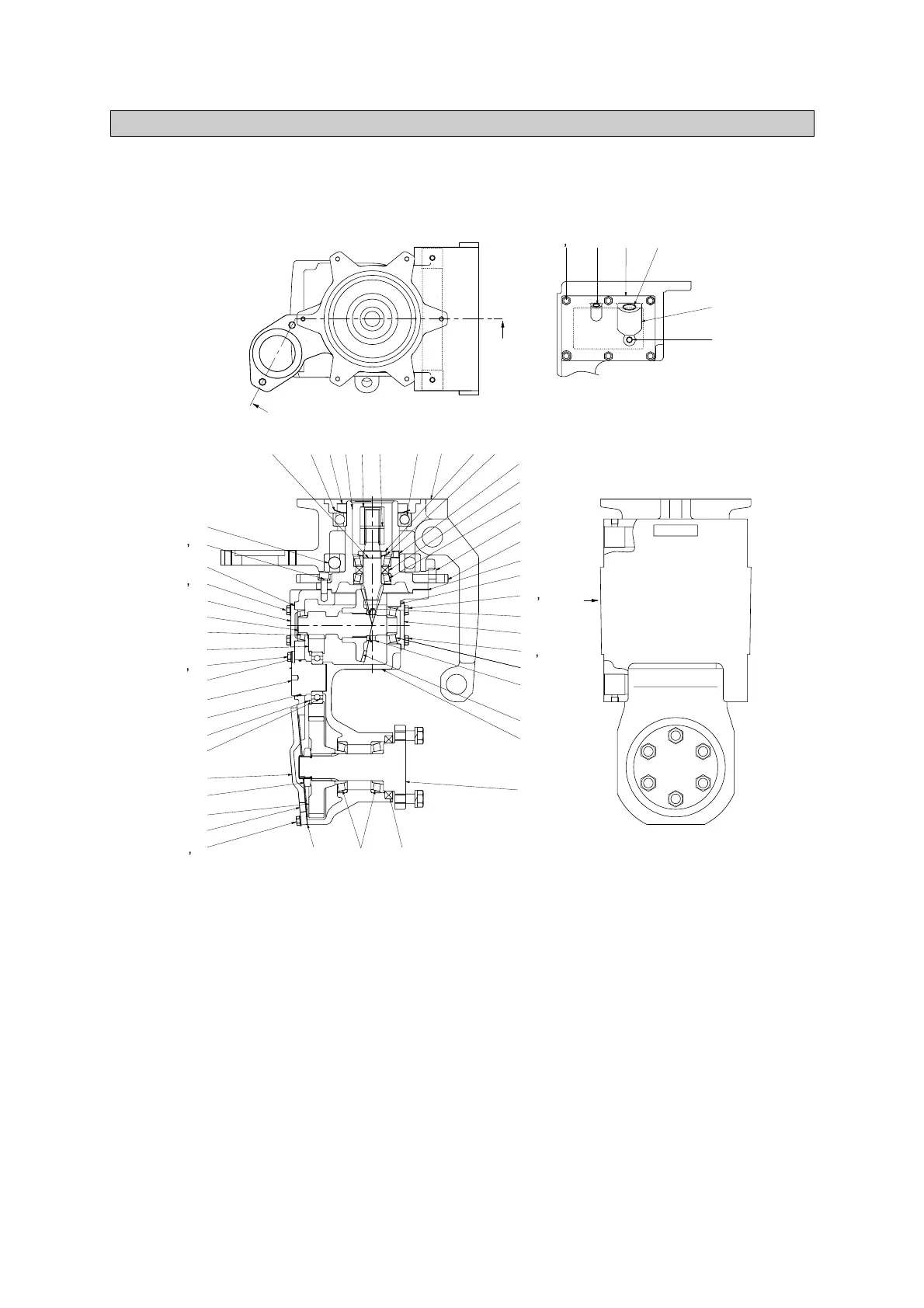

1. DRIVE AXLE UNIT
STRUCTURE
HBR14/15/18-7
1)
(1)
1 Gear case cover
2 Drive bracket
3 Gear box case
4Cover
5 Spiral pinion
6 Spiral bevel gear
7 Steering gear
8 Idle gear
9 Gear
10 Bearing
11 Washer
12 Bearing lock nut
13 Taper roller bearing
14 Bearing lock nut
15 Bearing lock washer
16 Bearing
17 Bearing
18 Bearing
19 Seal
20 Taper roller bearing
21 Bearing lock nut
22 Bearing lock washer
23 Gear spacer
24 Bearing
25 Sleeve
26 Pinion shaft
27 Idler gear shaft
28 Snap ring
29 Cover
30 Cover
31 Lock plate
32 Drive shaft nut
33 Taper plug
34 Spring pin
35 O-ring
36 Drive wheel shaft
37 Taper plug
38 Gasket
39 Spring pin
40 Case
41 Gasket
42 Taper plug
43 Air breather
44 Oil seal
45 Shim
46 Shim
47 Shim
48 Socket bolt
49 Spring washer
50 Hexagon bolt
51 Spring washer
52 Hexagon bolt
