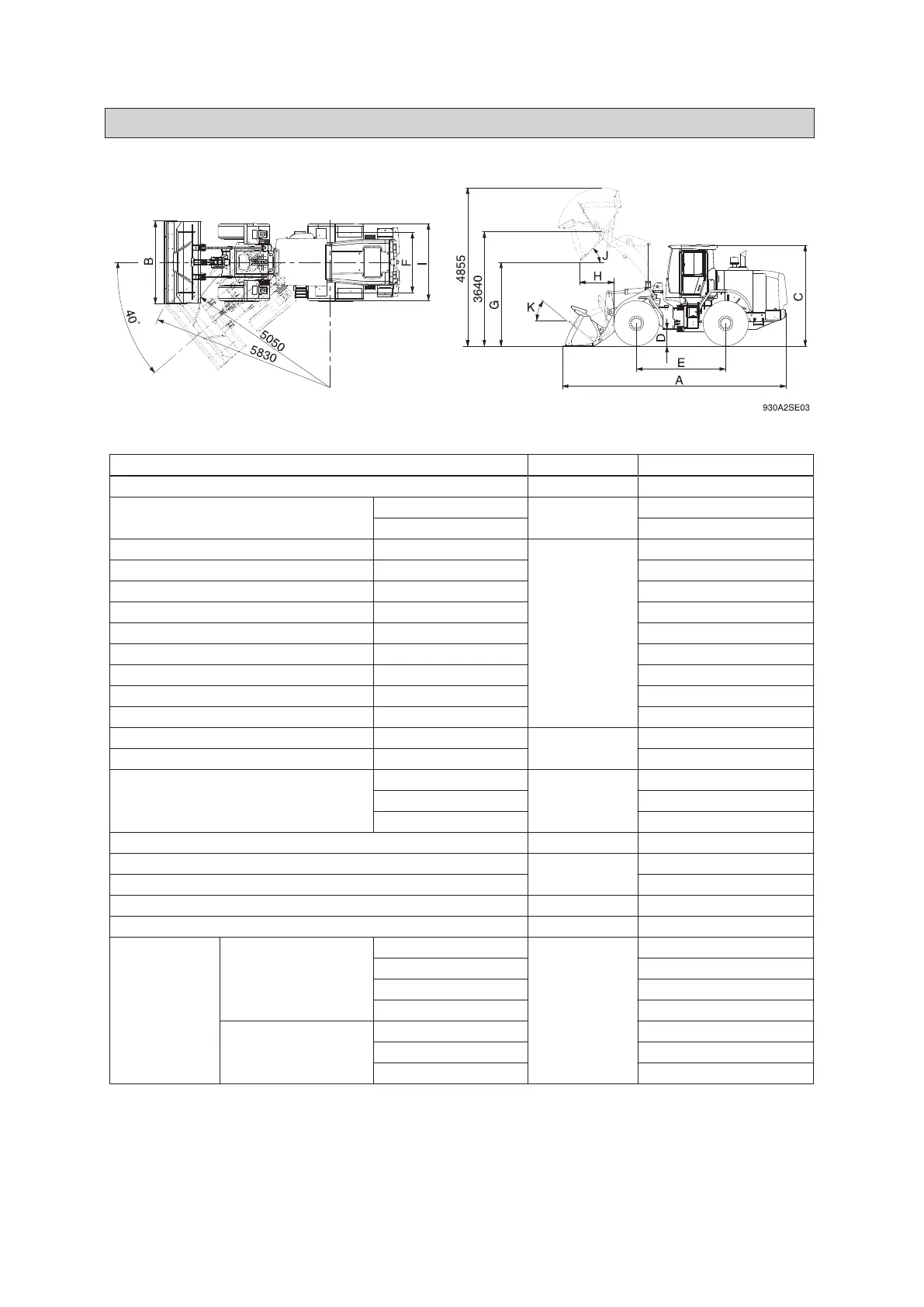

2. SPECIFICATIONS
1) WITH BOLT-ON CUTTING EDGE TYPE BUCKET (HL930A)
Description Unit Specification
Operating weight kg (lb) 11500 (25355)
Bucket capacity
Struck
m
3
(yd
3
)
1.6 (2.1)
Heaped 1.9 (2.5)
Overall length A
mm (ft-in)
7125 (23' 5")
Overall width B 2450 (8' 0")
Overall height C 3170 (10' 5")
Ground clearance D 370 (1' 3")
Wheelbase E 2900 (9' 6")
Tread F 1930 (6' 4")
Dump clearance at 45˚ G 2700 (8' 10")
Dump reach (full lift) H 1065 (3' 6")
Width over tires I 2375 (7' 10")
Dump angle J
degree (°)
48
Roll back angle (carry position) K 47
Cycle time
Lift (with load)
sec
5.8
Dump (with load) 1.5
Lower (empty) 3.6
Maximum travel speed km/hr (mph) 39.5 (24.5)
Braking distance
m (ft-in)
13.0 (42' 8")
Minimum turning radius (center of outside tire) 5.05 (16' 7")
Gradeability degree (°) 30
Breakout force kg (lb) 9150 (20065)
Travel speed
Forward
First gear
km/hr (mph)
6.6 (4.1)
Second gear 12.1 (7.5)
Third gear 23.6 (14.7)
Fourth gear 39.5 (24.5)
Reverse
First gear 7.0 (4.3)
Second gear 12.7 (7.9)
Third gear 24.8 (15.4)
2-2
