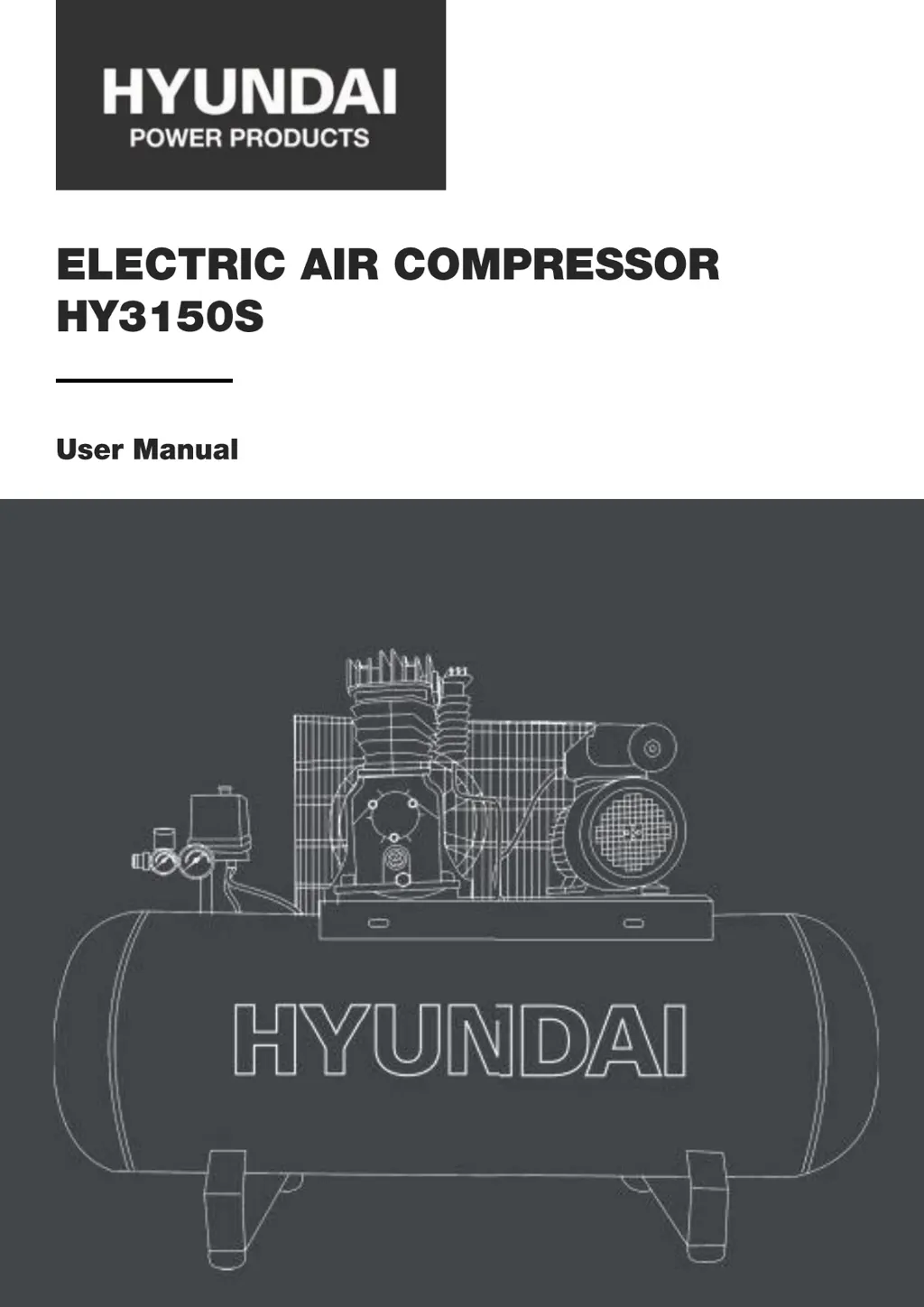

Hyundai HY3150S - User Manual

Hyundai HY3150S
20 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
1

Table of Contents

Questions and Answers

  • J
    Jeffrey MendozaAug 14, 2025
    What to do if my Hyundai Air Compressor motor does not start or starts slowly?
    • M
      Michele PerkinsAug 14, 2025
      If the motor isn't starting or is starting slowly, it could be due to a low voltage supply. Check that the main voltage corresponds to the air compressor's specifications. Also, an extension cord that is under-rated or too long can cause a voltage drop. Try using a heavy-duty extension cord and ensure the air compressor is plugged into a fully functioning power outlet.
  • K
    Kathleen BarreraAug 18, 2025
    What to do if my Hyundai Air Compressor stopped and won’t restart?
    • L
      Lori JohnsonAug 18, 2025
      If your compressor has stopped and won’t restart, it could be that the thermal protector turned on because the motor is overheating. Check that the main voltage corresponds to the air compressor specifications. An extension cord that is under rated or too long can cause the motor to overheat. Allow the motor to cool down. If the motor windings have burnt out, it is recommended to contact your service dealer.
  • H
    Haley DunnAug 21, 2025
    Why my Hyundai HY3150S does not reach maximum pressure?
    • S
      scott72Aug 21, 2025
      If the compressor does not reach maximum pressure, the compressor head gasket or reed valve could be faulty. Stop the compressor and contact your service dealer.
  • D
    Darryl ColemanAug 25, 2025
    Why is there a pressure drop in my Hyundai Air Compressor tank?
    • C
      Christian RoachAug 25, 2025
      A pressure drop in the tank could be due to air leaks at the connections. To resolve this, let the compressor build up pressure in the tank to the maximum if possible. Brush soapy water on the air connections and look for air bubbles. Tighten any leaky connections you find. If the problem persists, it is recommended to contact your service dealer.
  • A
    Anita SandovalAug 27, 2025
    What to do if my Hyundai HY3150S Air Compressor tank is full of water due to condensation?
    • M
      Mark SmithAug 27, 2025
      If the tank is full of water due to condensation, open the drain valve and release the water from the tank.
  • C
    Charles WeaverAug 30, 2025
    Why is my Hyundai HY3150S Air Compressor so noisy?
    • D
      drogersAug 31, 2025
      If the compressor is noisy, the compressor head gasket or reed valve could be faulty. Stop the compressor and contact your service dealer.
  • L
    Laura BranchSep 3, 2025
    What to do if Hyundai Air Compressor motor pump unit does not stop when the tank pressure reaches maximum working pressure?
    • J
      Jamie GregorySep 3, 2025
      If the motor pump unit does not stop when the tank pressure reaches maximum working pressure, the pressure switch may be defective or require adjustment. Stop the compressor and contact your service dealer.
  • P
    perezcarlaSep 7, 2025
    Why my Hyundai Air Compressor does not deliver as much air as when new?
    • M
      mossjacquelineSep 7, 2025
      If the compressor does not seem to deliver as much air as it did when new and/or shuts off with a much shorter time period, the pressure switch may need adjusting. Stop the compressor and contact your service dealer.
  • D
    dustinschultzSep 10, 2025
    How to fix a leaking unloader valve on a Hyundai HY3150S Air Compressor?
    • J
      Jeffrey TaylorSep 10, 2025
      If the unloader valve leaks when the compressor is idle, it could be because the unloader valve seal is defective. Let the air in the air tank flow out until all the pressure is released. Then, remove the unloader valve plug and clean the valve seal. If necessary, replace the seal and then reinstall.

Summary

1. SAFETY

General Safety Notes and Symbols

Covers general safety notes, warning symbols (DANGER, WARNING, CAUTION, NOTE), and PPE pictograms.

Carbon Monoxide Hazards

Details hazards, symptoms, and precautions related to carbon monoxide.

General Fuel Safety

Safety precautions related to fuel handling and flammability.

Fueling and De-fueling Safety

Specific safety guidelines for fueling and defueling the compressor.

Electrical Safety Measures

Safety measures for electrical connections and maintenance.

Cable Routing and Wet Condition Safety

Hazards related to trailing cables and working in wet conditions.

Battery Handling Safety

Safety advice for handling batteries and electrolyte.

Vibration Risks and Prevention

Risks from vibrations (white finger, carpal tunnel) and mitigation methods.

Noise Exposure and Hearing Protection

Importance of hearing protection and managing noise exposure.

2. MACHINE SPECIFIC SAFETY

General Machine Operation Rules

Specific safety rules for operating the air compressor and avoiding hazards.

Prohibited Operations and Tank Safety

Rules against misuse, tampering, and tank safety measures.

PPE and Electrical Connection Details

Required PPE and guidelines for electrical connections and RCD use.

3. PREPARATION

Setup and Pre-Operation Checks

Positioning, siting, oil level checks, and general setup procedures.

Air Supply and Valve Connection

Instructions for connecting the air supply and setting valves correctly.

Power Connection and Test Run

Voltage checks, power cord connection, and initial test run procedures.

4. STARTING PROCEDURE

Compressor Start-up Steps

Step-by-step guide to starting the compressor and operating tools.

5. STOPPING PROCEDURE

Safe Shutdown Process

Procedures for turning off the compressor and releasing pressure.

6. USING THE MACHINE

Operation and Daily Draining

Guidance on pressure, airflow, regulators, and daily tank draining.

7. MAINTENANCE

Draining the Tank

Detailed instructions for daily draining of moisture from the tank.

Air Filter Maintenance

Procedures for cleaning, inspecting, and replacing the air filter element.

Leak Testing and Cleaning Procedures

Methods for leak testing with soapy water and general cleaning.

Storage Guidelines

Recommendations for proper storage to protect the compressor.

8. TROUBLESHOOTING

Problem Diagnosis and Solutions

Common issues, their causes, and recommended solutions for compressor problems.

9. SPECIFICATION

Technical Specifications Overview

Key technical data including model, power, pressure, and dimensions.

10. RECYCLING AND PRODUCT DISPOSAL

WEEE and Battery Disposal

Guidance on proper disposal of electrical waste and batteries.

Recycling Information and Resources

Explanation of recycling symbols and resources for further advice.

11. DECLARATION OF CONFORMITY

CE Directives and Conformity Details

Details on CE directives, noise emissions, and conformity procedures.

12. CONTACT DETAILS

Company Contact Information

Postal address, telephone, fax, email, and website for support.

13. WARRANTY

Warranty Registration and Terms

Information on registering the machine and accessing warranty terms.

14. MANUAL UPDATES

Manual Review and Online Access

Process for reporting errors and accessing updated manuals online.

Hyundai HY3150S Specifications

General IconGeneral
Power - kw/hp2.2 / 3
Displacement - L/min300
CFM10.6
Pressure – bar/psi10 / 115
Rotating Speed – rpm1050
Tank Capacity – L150
Weight and Dimensions IconWeight and Dimensions
Dimensions - mm (LxWxH)1310 x 500 x 880
Weight – kg117
