Hyundai HYM40P User Manual

28 pages

To Next Page

To Next Page

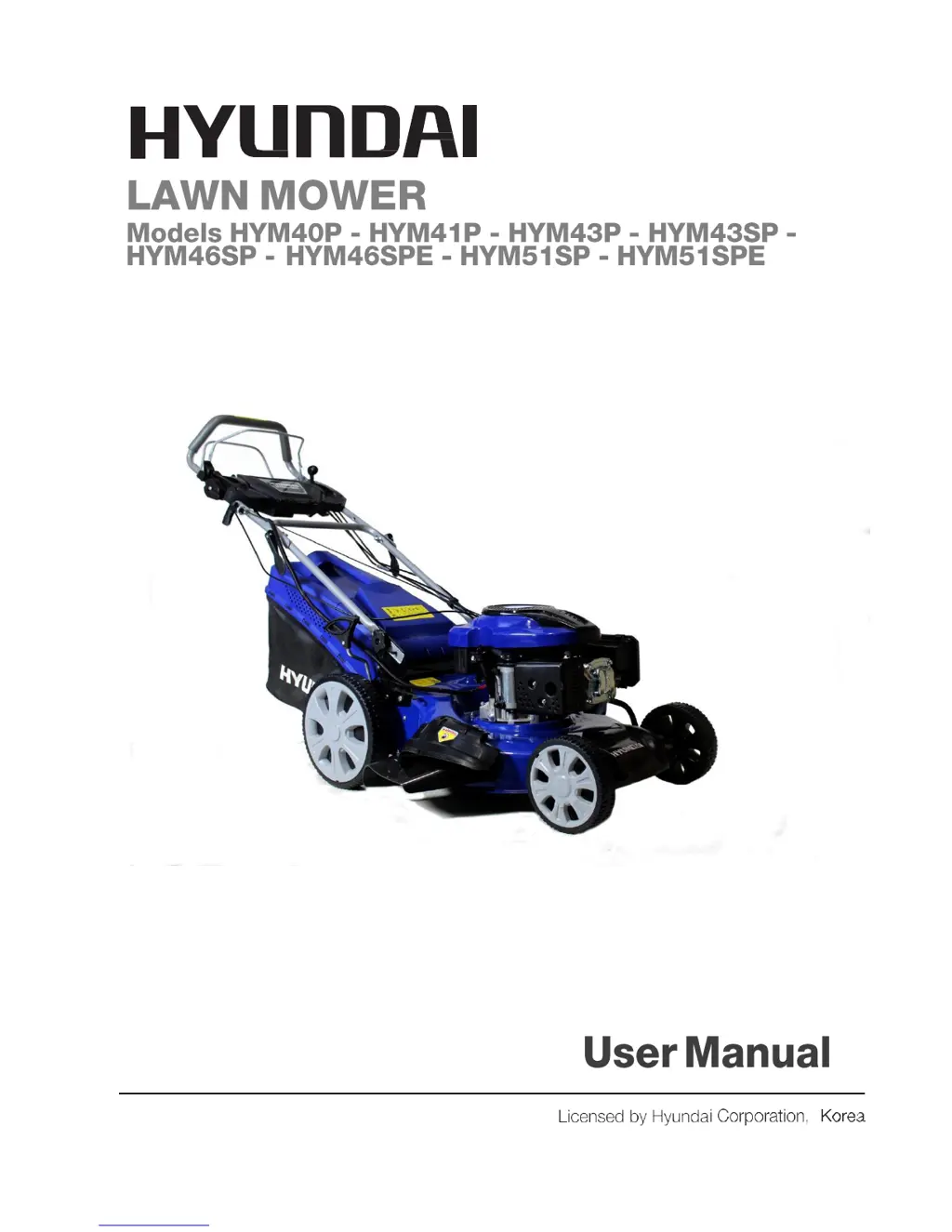

Page #1 background image

Loading...

Page #1 background image

Table of Contents

Other manuals for Hyundai HYM40P

Operator's Manual28 pages

Questions and Answers:

C
cunninghamtoddJul 30, 2025
Why my Hyundai HYM40P Lawn Mower engine does not start?
- J
  jonathan64Jul 30, 2025
  If your Hyundai Lawn Mower engine won't start, several factors could be at play. First, ensure the throttle lever is correctly positioned. Next, check the fuel tank and fill it if empty. Inspect the spark plug: tighten it to 25-30Nm if loose, ensure the spark plug cap is correctly installed, and verify the gap between electrodes is set to 0.7 to 0.8mm. If the carburetor is flooded, remove the air cleaner element and pull the starter rope until it clears. If none of these steps work, the ignition module may be faulty, and you should contact the service dealer.
U
ugonzalezAug 4, 2025
What to do if Hyundai HYM40P Lawn Mower engine is difficult to start or loses power?
- A
  Andrew BridgesAug 4, 2025
  If your Hyundai Lawn Mower engine is hard to start or loses power, the issue might stem from a few causes. One possibility is contaminated fuel; in this case, drain the old fuel, clean the tank, and refill with fresh fuel. Another potential problem is a blocked vent hole in the fuel tank cap, which you should clean or replace. If the air cleaner element is dirty, refer to the Engine Owner’s Manual for cleaning instructions.
A
Amy BridgesAug 8, 2025
Why does my Hyundai HYM40P engine overheat?
- D
  Donna ThomasAug 8, 2025
  If your Hyundai Lawn Mower engine is overheating, it could be due to restricted cooling airflow. Remove any debris from the slots in the shroud, blower housing, and air passages to ensure proper ventilation. Also, verify that you are using the correct spark plug and replace it if necessary.
C
carlrayAug 12, 2025
What to do if my Hyundai HYM40P Lawn Mower engine operates erratically?
- Q
  qgarzaAug 13, 2025
  If your Hyundai Lawn Mower engine is running erratically, there are a few potential causes. A defective spark plug could be the culprit, so refer to the Engine Owner’s Manual for instructions on installing a new, correctly gapped plug. Also, ensure the spark plug gap is correctly set between 0.7 and 0.8mm. Another potential issue is a dirty air cleaner element, so refer to the Engine Owner’s Manual for cleaning instructions.
B
Brandon GreeneAug 16, 2025
How to fix a Hyundai HYM40P Lawn Mower that idles poorly?
- S
  stevengoodAug 17, 2025
  If your Hyundai Lawn Mower engine idles poorly, several factors could be responsible. A dirty air cleaner element might be the cause, so refer to the Engine Owner’s Manual for cleaning instructions. Additionally, check for blocked air slots in the engine shroud and remove any debris. Finally, clear any obstructions from the cooling fins and air passages under the engine housing.
J
Johnny AllenAug 21, 2025
Why does my Hyundai HYM40P Lawn Mower vibrate abnormally?
- L
  Linda LongAug 21, 2025
  If your Hyundai Lawn Mower is vibrating abnormally, the issue might be a loose cutting assembly. Try tightening the blade. If the vibration persists, the cutting assembly might be unbalanced, and it should be taken to a service dealer.
J
Joseph SwansonAug 26, 2025
What causes a Hyundai HYM40P Lawn Mower engine to skip at high speed?
- R
  Robert BarnesAug 26, 2025
  If your Hyundai Lawn Mower engine skips at high speed, it may be due to the gap between the spark plug electrodes being too close. Adjust the gap to be between 0.7 and 0.8mm.

Hyundai HYM40P Specifications

General

Engine Size	139cc
Engine Displacement	139cc
Cutting Width	40 cm
Cutting Height Adjustment	Central
Cutting Heights	25-75mm
Grass Box Capacity	45L
Engine Type	4-Stroke OHV

Summary

Safety Precautions

Personal Protective Equipment (PPE)

Lists essential protective gear for safe operation of the lawnmower.

Warning Signs and Symbols

Explains the meaning of various safety signs and symbols used in the manual.

Carbon Monoxide and Fuel Safety

Guidelines for avoiding CO poisoning and safe fuel handling practices.

Battery and Machine Operation Safety

Precautions for battery handling and safe machine operation.

Machine Parts Identification

General Model Parts List

Identifies common machine parts for various Hyundai lawnmower models.

HYM40P Specific Parts

Assembly Procedures

Catcher Assembly

Handle Assembly

Recoil Starter and Height Adjustment

Electric Start and 4-in-1 Setup

Operating Procedures

Recoil Starting Methods

Electric Start Model Operation

Maintenance and Care

Blade and Spark Plug Maintenance

Air Filter and Fuel System Care

Troubleshooting Guide

Engine Problems and Solutions

Common engine issues and their corrective actions.

Product Specifications
