CLIMATE CONTROL AIR FILTER
Filter inspection
If the vehicle is operated in the severely
air-polluted cities or on dusty rough
roads for a long period, it should be
inspected more frequently and replaced
earlier. When you, the owner, replace
the climate control air filter, replace it
performing the following procedure,
and be careful to avoid damaging other
components.
Replace the filter according to the
Maintenance Schedule.
Filter replacement

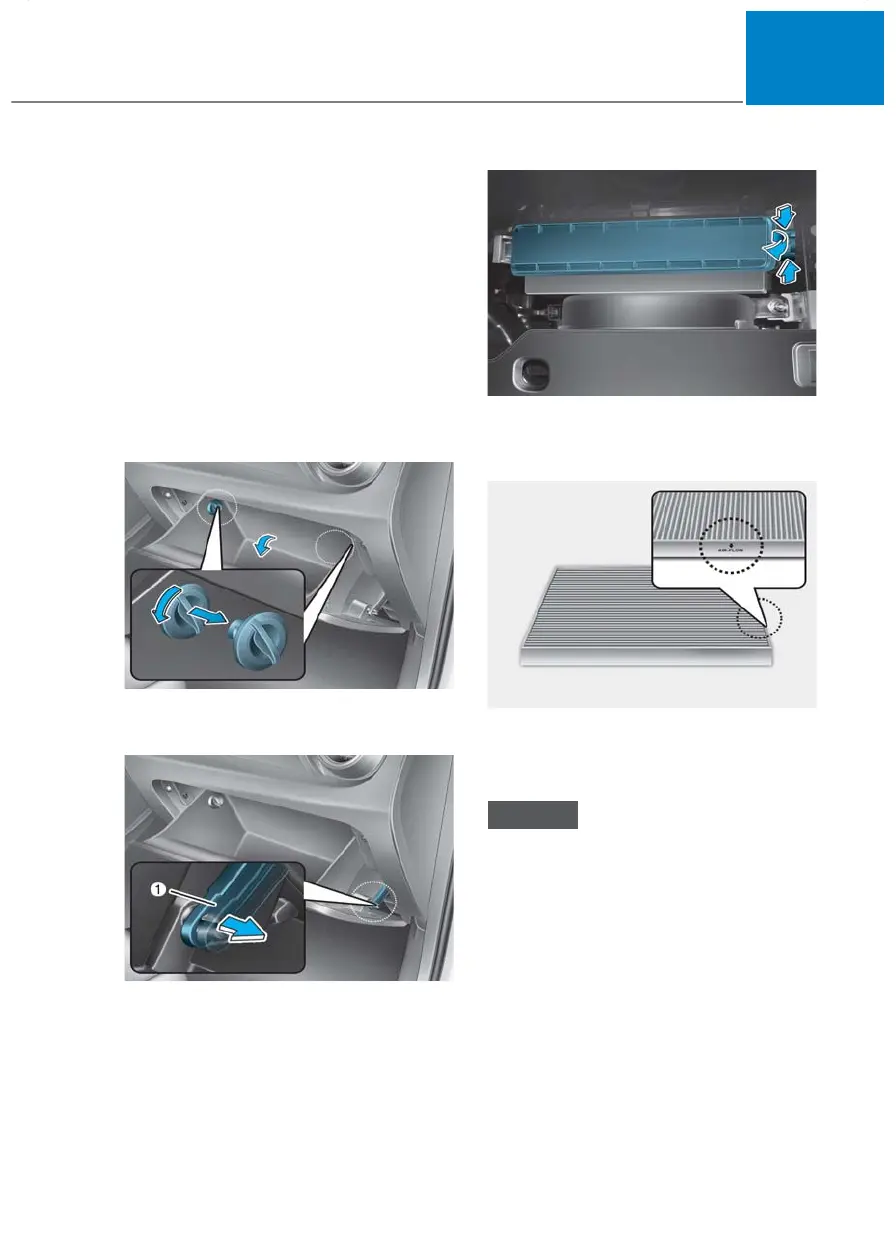

OOS077018
1. With the glove box open, remove the
stoppers on both sides.
OOS077017
2. Remove the support strap (1).
OOS077019
3. Remove the climate control air filter
case while pressing the lock on the
right side of the cover.
OPD076026
4. Replace the climate control air filter.
5. Reassemble in the reverse order of
disassembly.
NOTICE
Install a new climate control air filter
in the correct direction with the
arrow symbol (↓) facing downwards,
otherwise, it may be noisy and the
effectiveness of the filter may be
reduced.
