01
1-35

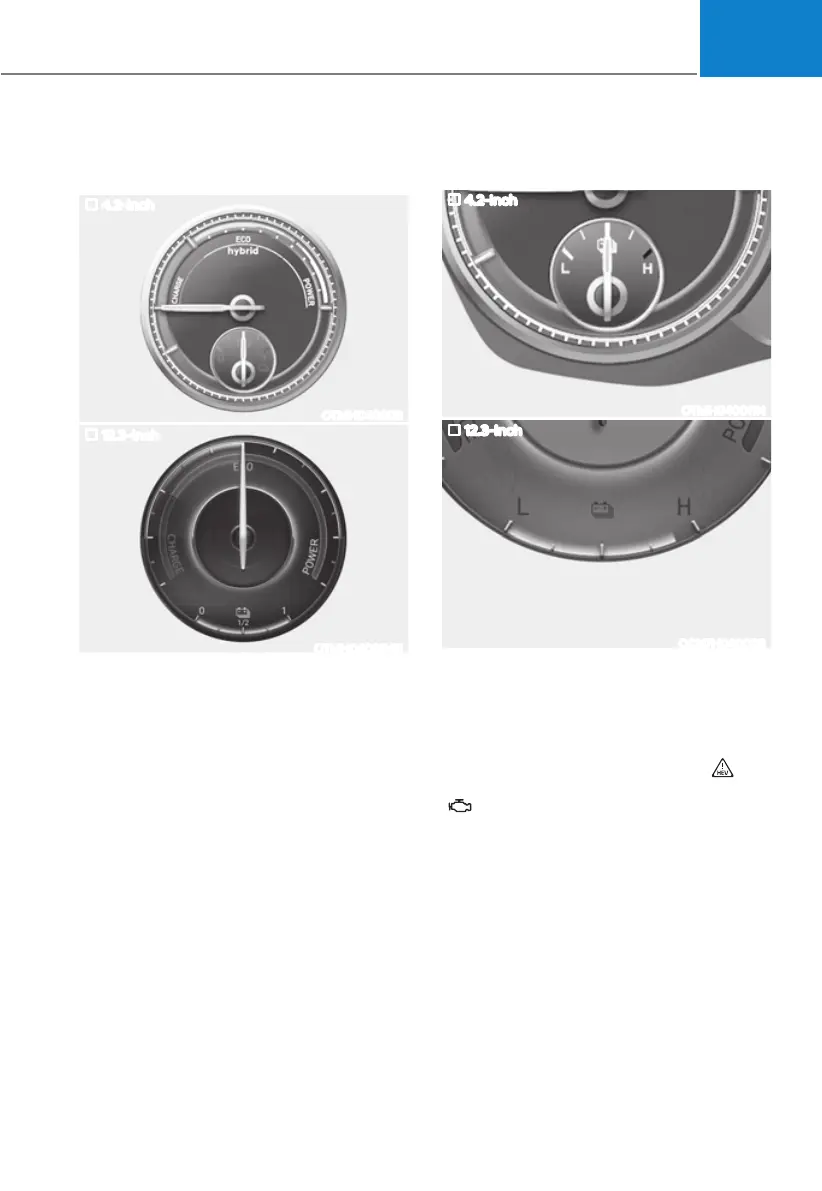

Hybrid System Gauge
Power gauge
4.2-Inch
OTMH040003
12.3-Inch
OTMH040004E
The hybrid system gauge indicates
whether the current driving condition is
fuel efficient or not.
ś CHARGE:
Shows that the energy made by the
vehicle is being converted to electrical
energy. (Regenerated energy)
ś ECO:
Shows that the vehicle is being driven
in an Eco-friendly manner.
ś POWER:
Shows that the vehicle is exceeding
the Eco-friendly range.
Hybrid battery SOC (State of Charge)
gauge
4.2-Inch
OTMH040011N
12.3-Inch
OCN7H040003
This gauge indicates the remaining
hybrid battery power. If the SOC is near
the “L (Low) or O” level, the vehicle
automatically operates the engine to
charge the battery.
However, if the Service Indicator (
)
and Malfunction Indicator Lamp (MIL)
(
) turn on when the SOC gauge is
near the “L (Low) or O” level, the vehicle
be checked by an authorized HYUNDAI
dealer.
