26
■ Interfaces (see Section 4.7 for more information)
Type, Status, Downlink and Uplink speed of the Physical Link
to ISP
Status, speed, and mode of the WAN interface
Status of LAN interfaces and connected ports
Status and Network names (SSID) for 2,4 & 5 GHz Wi-Fi inter-
faces
■ System (see Section 4.8 for more information)
■ Security (see Section 4.9 for more information)
■ Diagnostic (see Section 4.10 for more information)
When clicked, the Menu icon shown in the Home page
upper left corner (see section 3) opens a list box containing a
number of actions, including e.g., session logout, language selec-
tion, password change, router reboot, Wizard configuration,
firmware upgrade (see Figure 13).
More information about Menu actions are provided in Section
4.

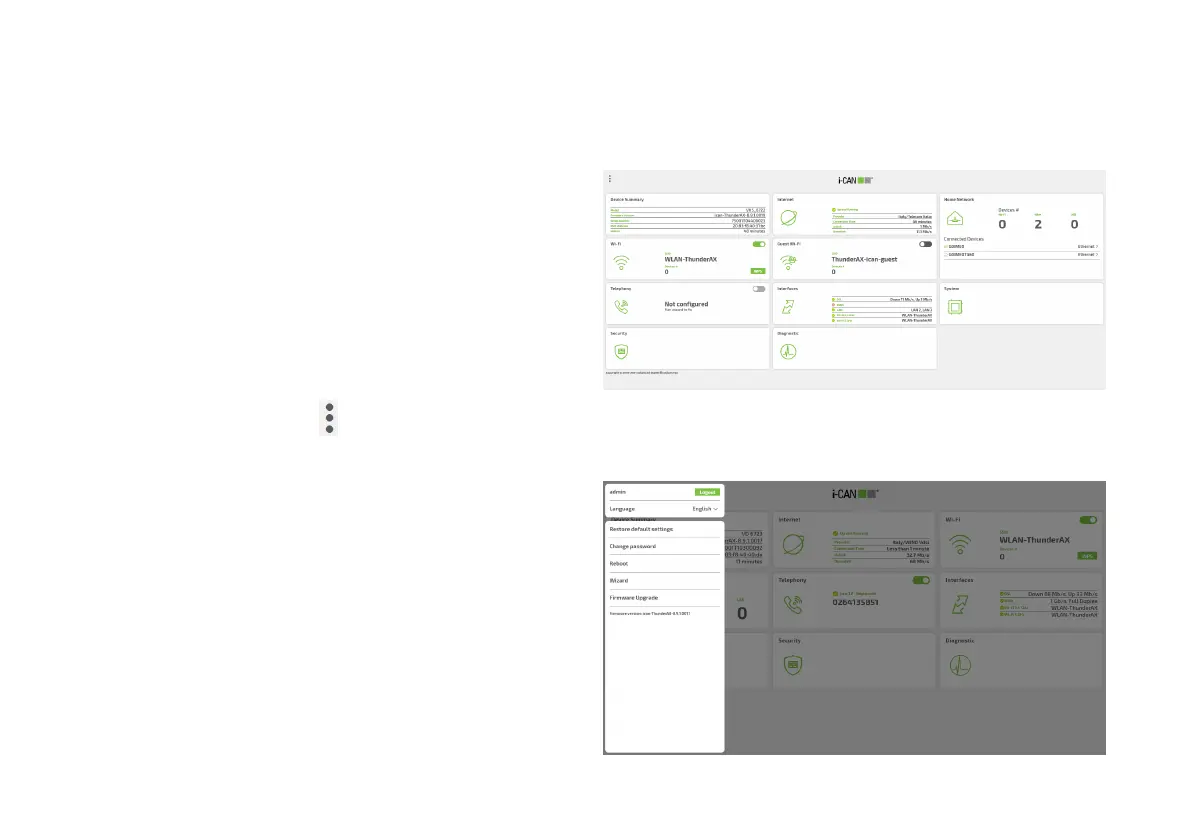

Figure 12. Home Page
Figure 20. Home - Menu Displayed
