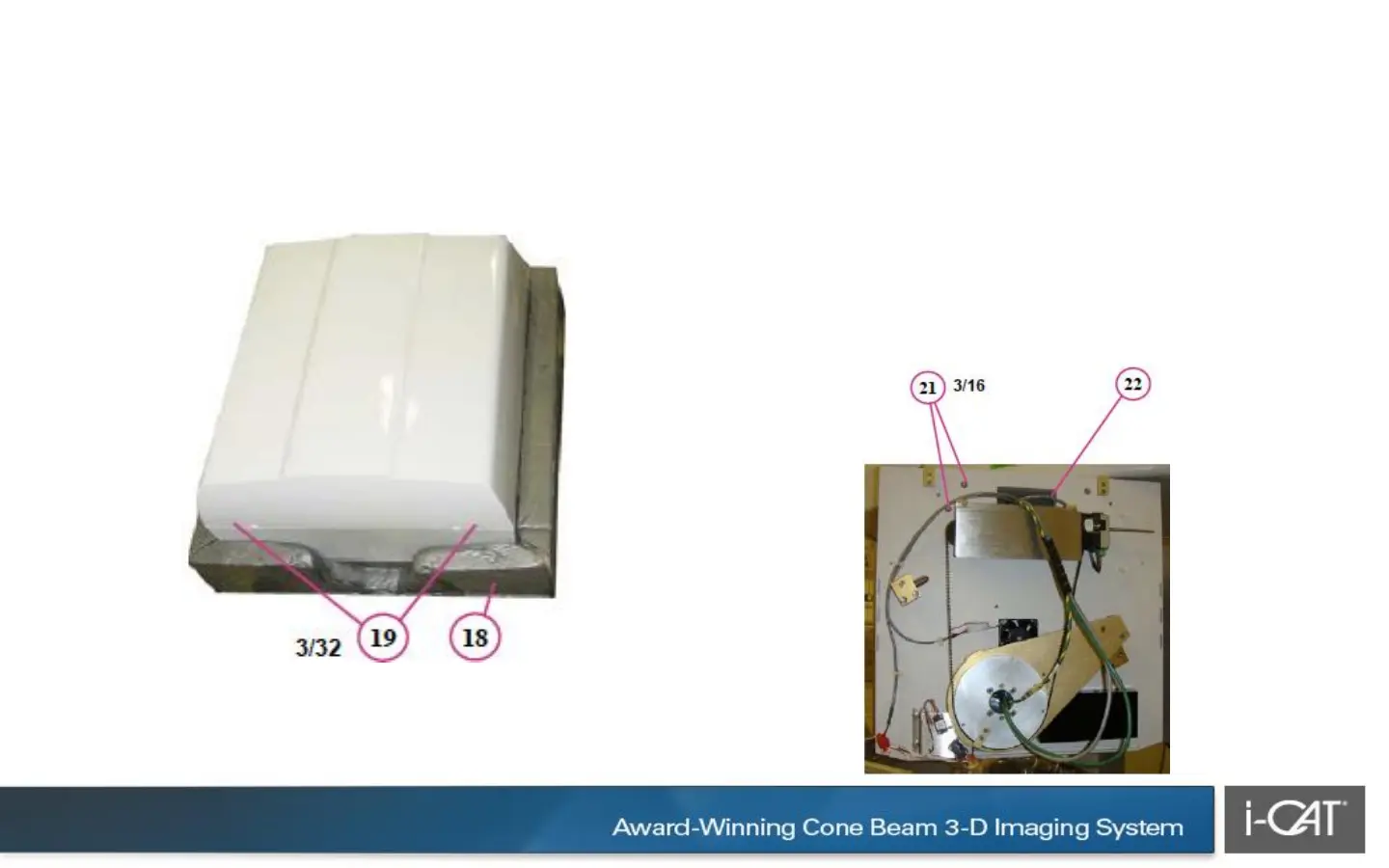

18. Locate receptor assembly and remove
packing material.
19. Remove assembly cover from scanner (2
screws).
20. With an assistant, mount the receptor
assembly by aligning the mounting pins.
21. Attach assembly with four long mounting
screws acquired from red shipping plate. Once
secured, remove remaining screws from
shipping plate and save for later use. Remove
shipping plate.
22. Feed cabling through receptor assembly (6
wires).
WARNING The receptor assembly requires a two
person lift. Failure to comply may cause bodily injury.
To Next Page
