User’s Manual
INSTALLATION INSTRUCTIONS
INSTALL REMOVE

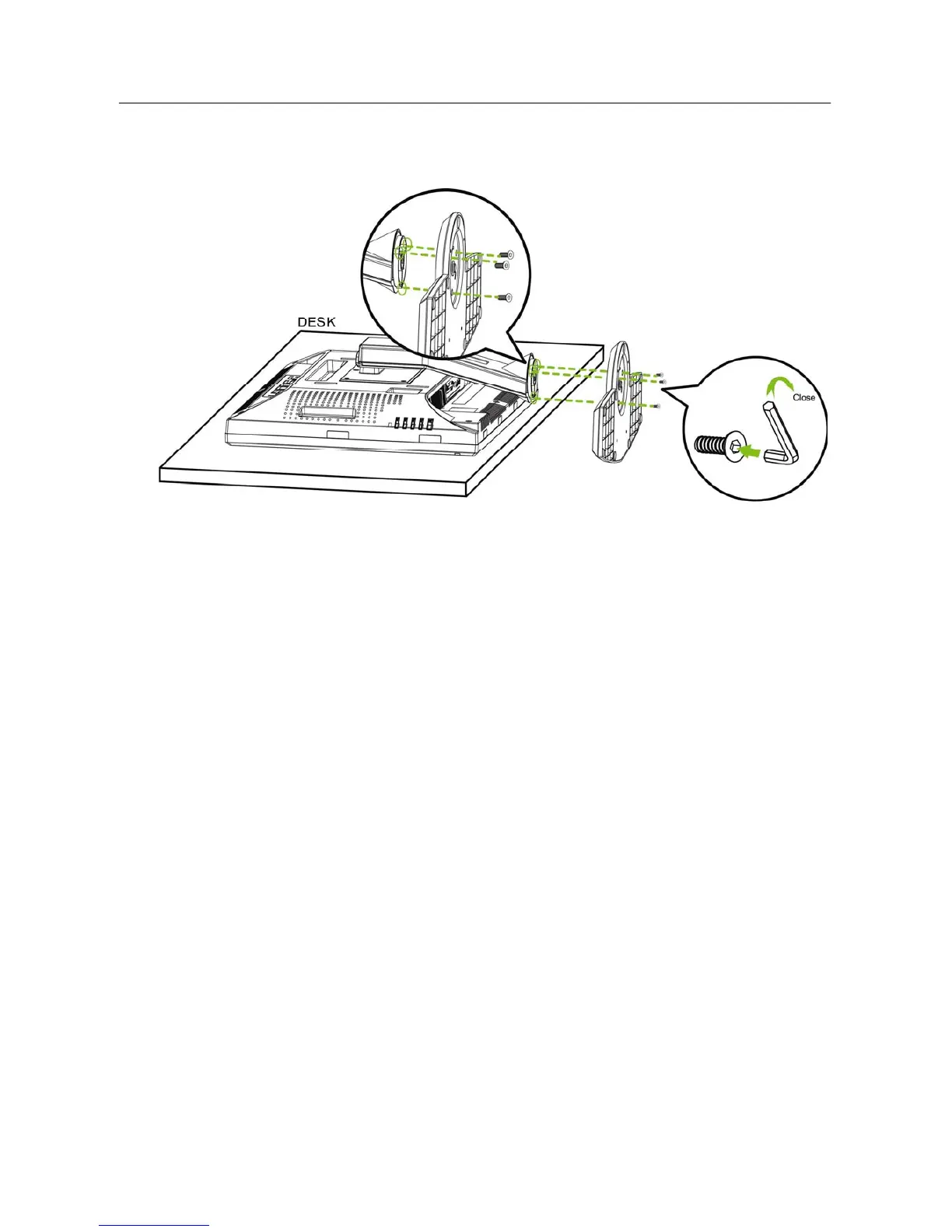

Figure.1. Installing and Removing the Base
INSTALLATION:
1. Turn the monitor over and set it upside down.
2. Align the monitor to the slots on the stand.
3. Please note that the longer edge of the stand should be facing forward.
4. Securely mount the monitor onto the stand using the supplied screws and Allen key.
5. Check the underside of the stand to ensure that the monitor has been firmly installed to the stand
and that the screws do not loosen.
6. Please keep the Allen (hex) key.
REMOVAL:
1. Turn the monitor over and set it upside down.
2. Loosen the screws by turn them counterclockwise, using the supplied Allen key.
3.
Detach the stand from the monitor.
POWER
POWER SOURCE
1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an Internal universal power supply that allows operation in either
100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the AC-power cord one end to your LCD monitor’s AC-input socket, the other end to
wall-outlet.
7
