ATTACHING THE PISTONS TO THE FRAME
FF=
x2
Secure the longer metal ends of the pistons to the frame.
G=
x2
FF
This end
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Start from this side.

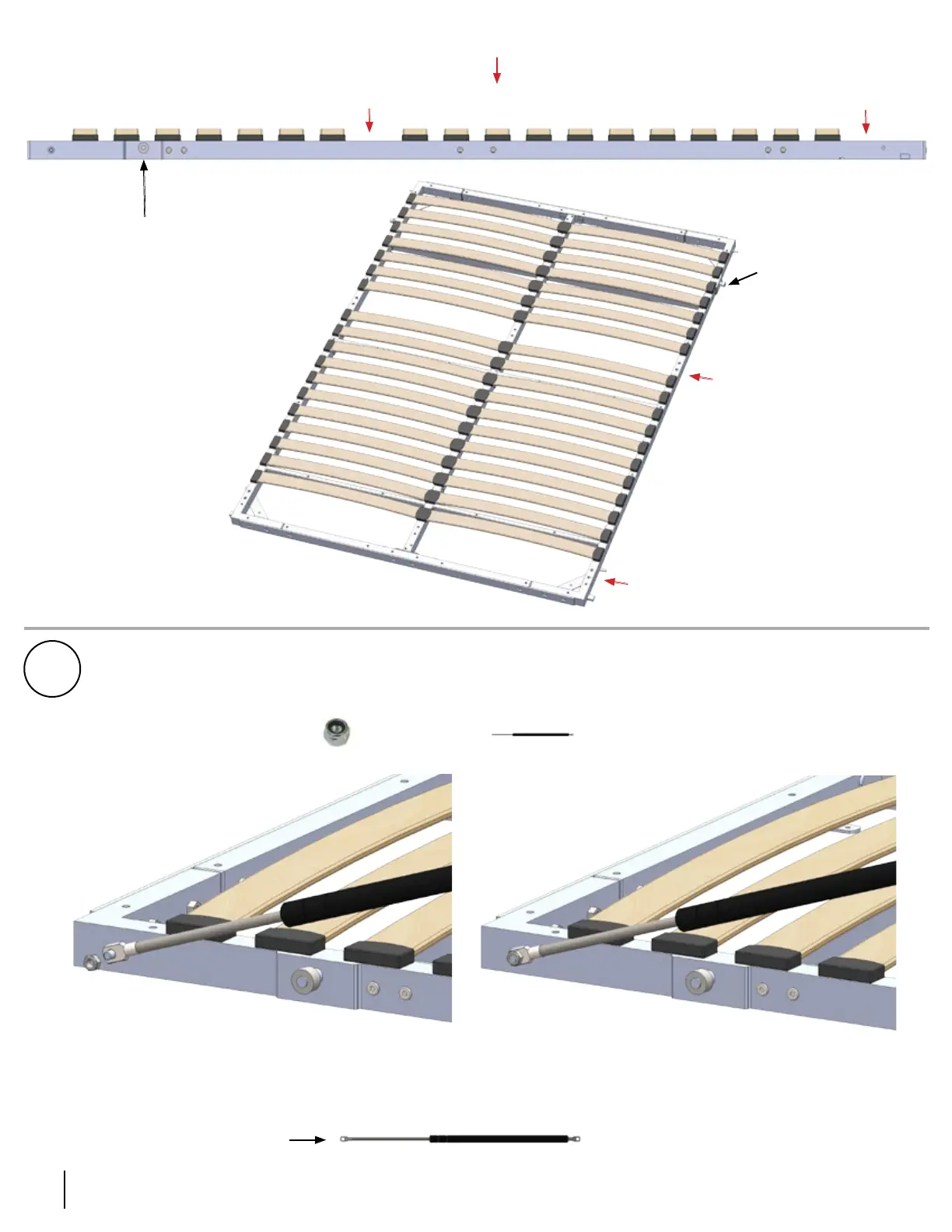

For each bed size, do not insert
slats in row #8, or the slats in the
last row. For the queen size, please
do not insert slats in row #11 as
well.
Example below works for both
single and double.
#8
Last
Pivot point
Pivot point
Please do not insert slats in row 11 for the queen
