Connection and Setting
7

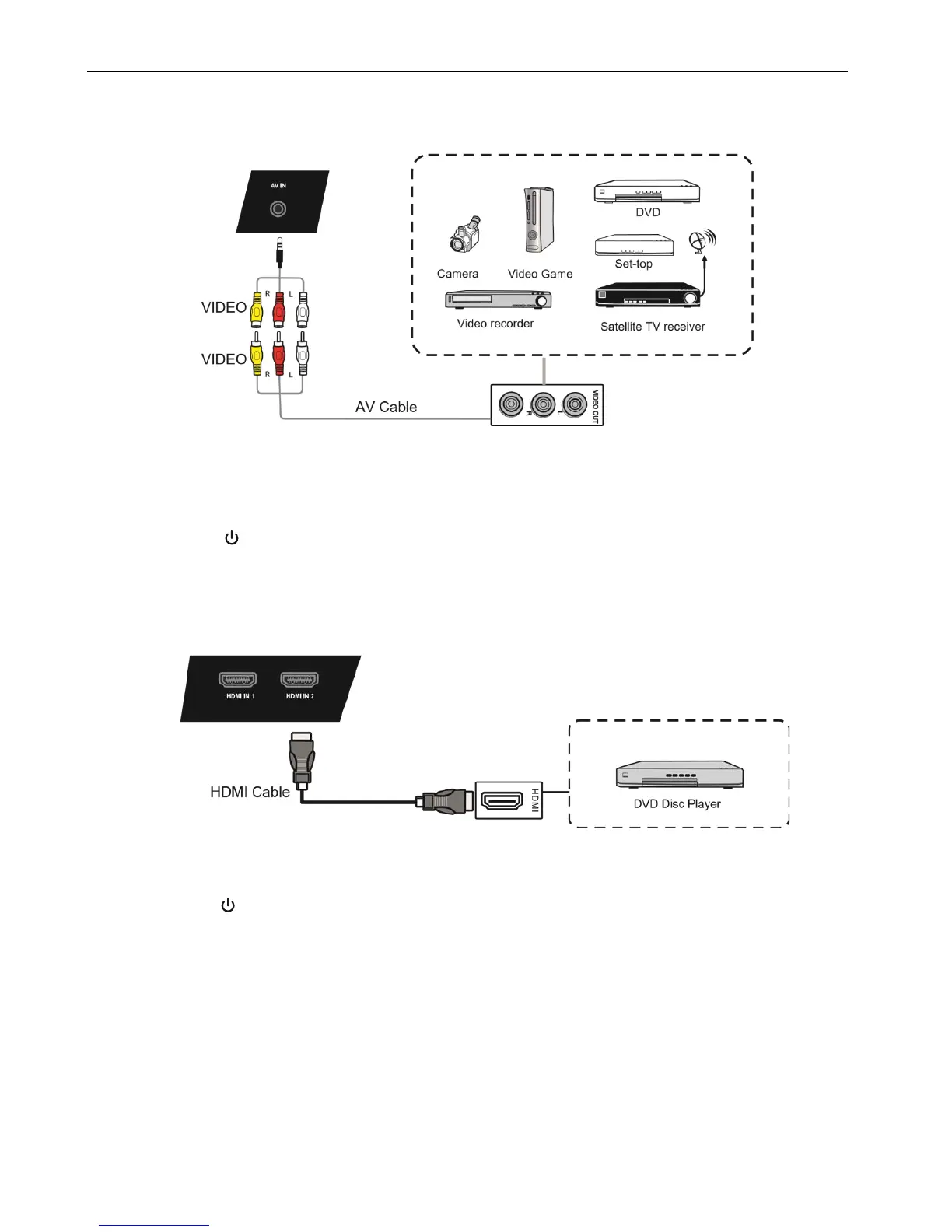

2. Audio and Video Equipment
1) AV IN
(1) Use AV audio and video cables to connect audio and video equipments with AV output (yellow for video, red
for right sound channel, and white for left sound channel)
(2) After cable connection, plug in power cord, and switch power on
(3) Press to turn equipment on
(4) Press INPUT key to switch to AV port
2) HDMI IN
(1) Use HDMI cable to connect audio and video equipment with HDMI output
(2) After cable connection, plug in power cord, and switch power on
(3) Press to turn equipment on
(4) Press INPUT key to switch to HDMI port
