10.3.5.1 "General" tab

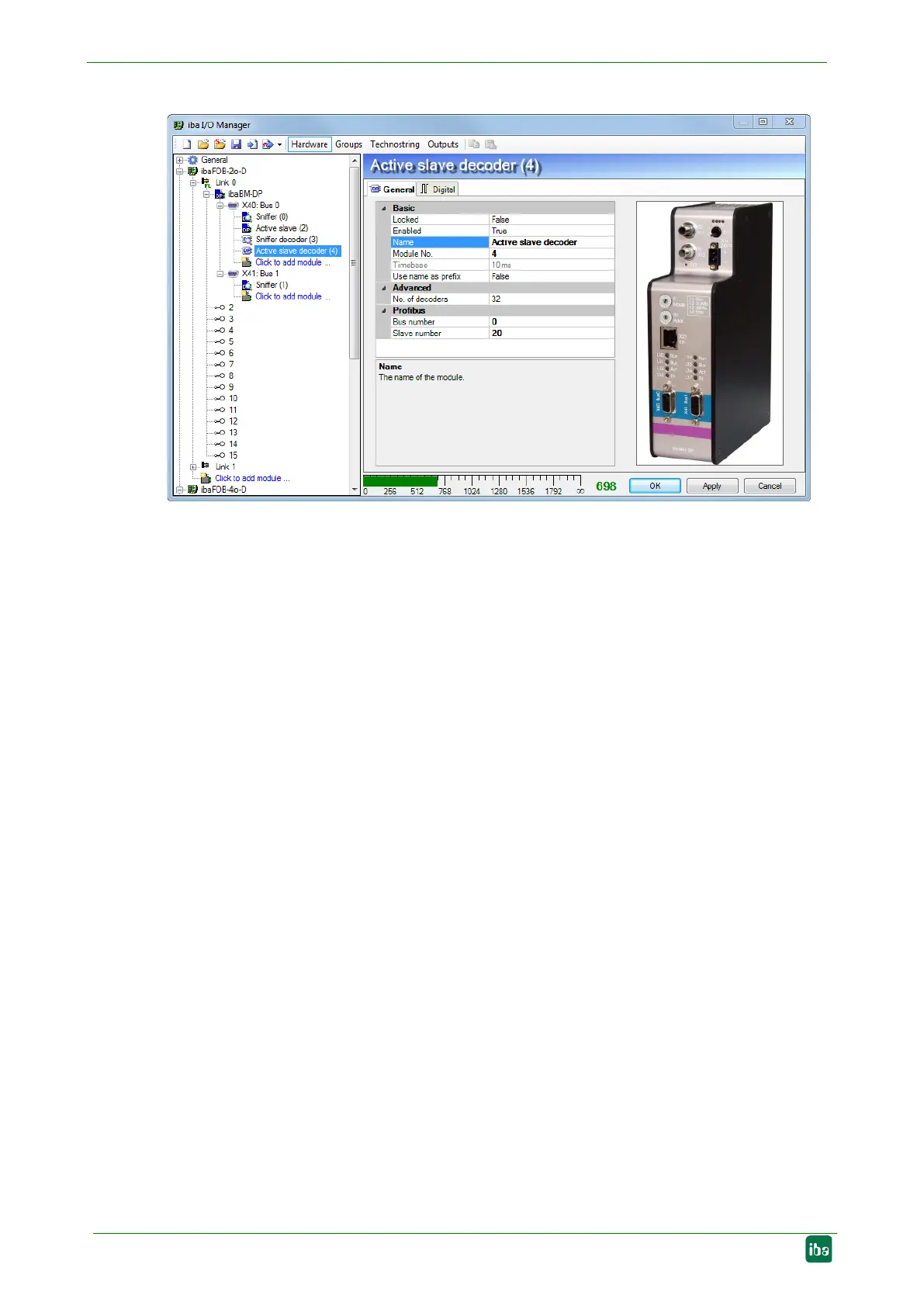

Fig. 50: "Active slave decoder" module– "General" tab
Basic settings
Locked, Enabled, Name, Module No., Timebase (only display), Use name as
prefix
see chapter 10.3.1.1.
Advanced
No. of decoders
Definition of the number of decoder modules (words) for this module, max. 122,
(corresponds to the maximum size of a PROFIBUS slave of 244 Bytes).
Profibus
Bus number
The bus number corresponds to the PROFIBUS connection in the module tree. You
can change the bus number. The decoder module is then displayed under the rele-
vant PROFIBUS connection
Slave number
Define the slave number, the active slave generated with the module, should have.
10.3.5.2 "Digital" tab
The declaration of the digital signals is done in the same way as for the module "Sniffer
decoder", see chapter 10.3.4.2.
The "slave" column is not available here, as the number of the associated slave has been
defined on the "General" tab.
