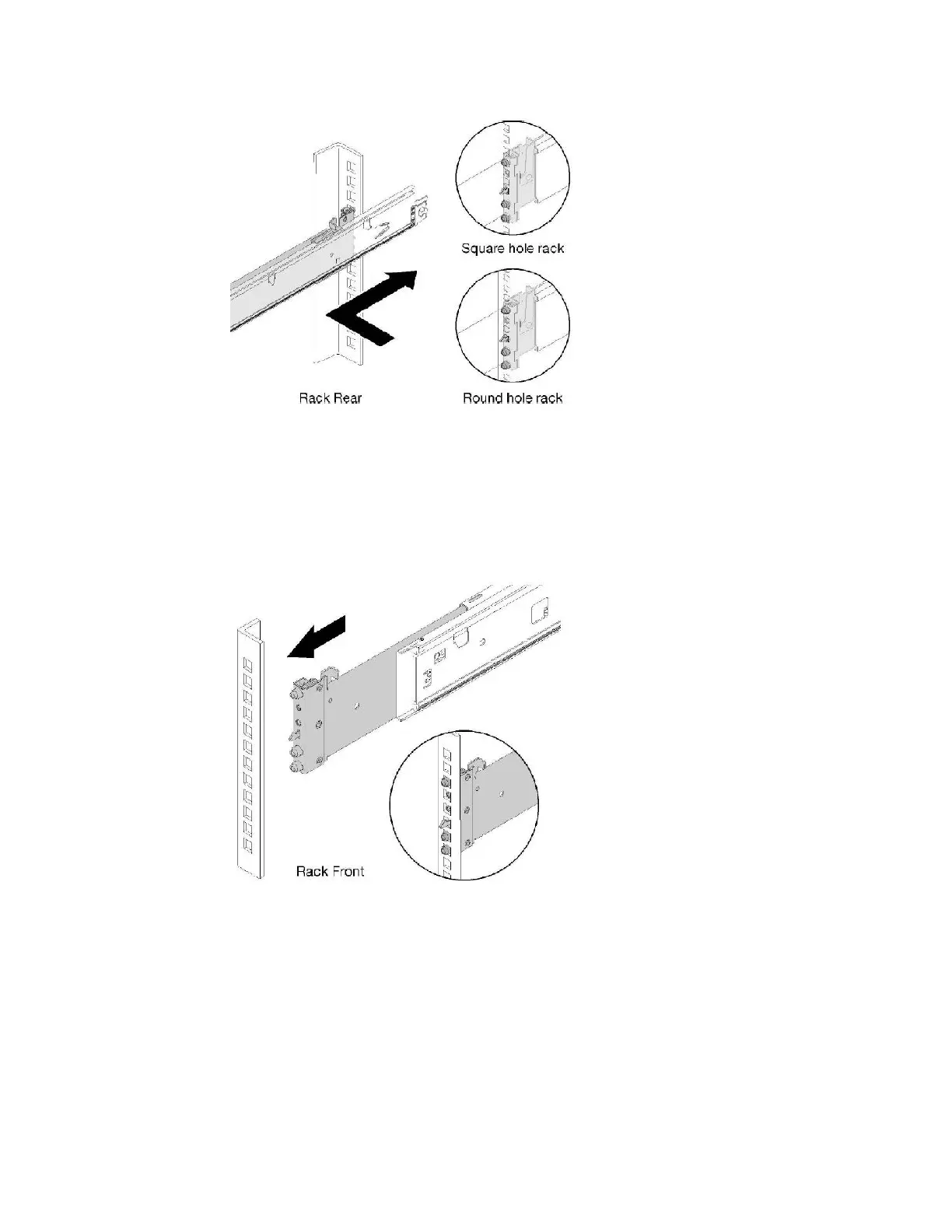

Figure 5. Left slide rear installation
5. Pull the slide forward and insert the pins and the latch into the EIA flange
holes at the front of the rack. Figure 6
Note: The holes on the rack will either be square-shaped or round-shaped.
Figure 6. Left slide front installation
6. Repeat steps 2 to 5 to install the other slide rail. Make sure that each slide rail
is securely engaged in the flange by inspecting that the hook has caught and by
sliding back and forward to ensure the slide does not pop out.
