© Copyright IBM Corporation 2019, 2020, 2021. Customer Install Guide, 2U Chassis 24

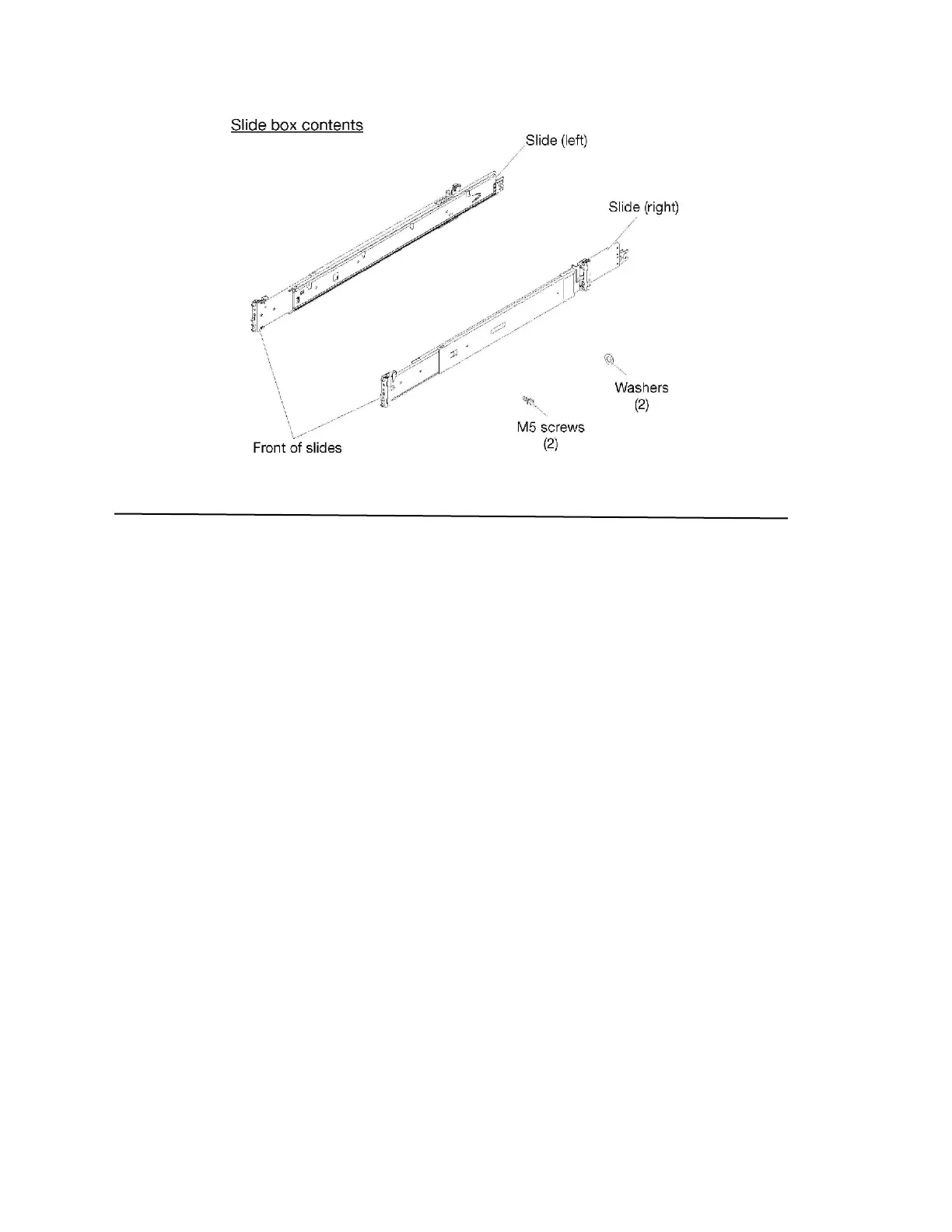

Figure 4. Slide box contents
Install slide rails into the rack
About this task
Use this information to install slide rails into the rack.
Note: The slide rails are extensible as shown in the following illustration.
Procedure
1. Select the first slide rail you want to install. Figure 4
2. Make sure the slide rail is shortened to the shortest position.
3. From the front of the rack cabinet, line up the pins on the rear of the slide rail
with the flange holes at the rear of the rack. Figure 5
4. Push the slide rail so that the pins and the latch go into the place.
Note: The holes on the rack will either be square-shaped or round-shaped.
To Next Page
