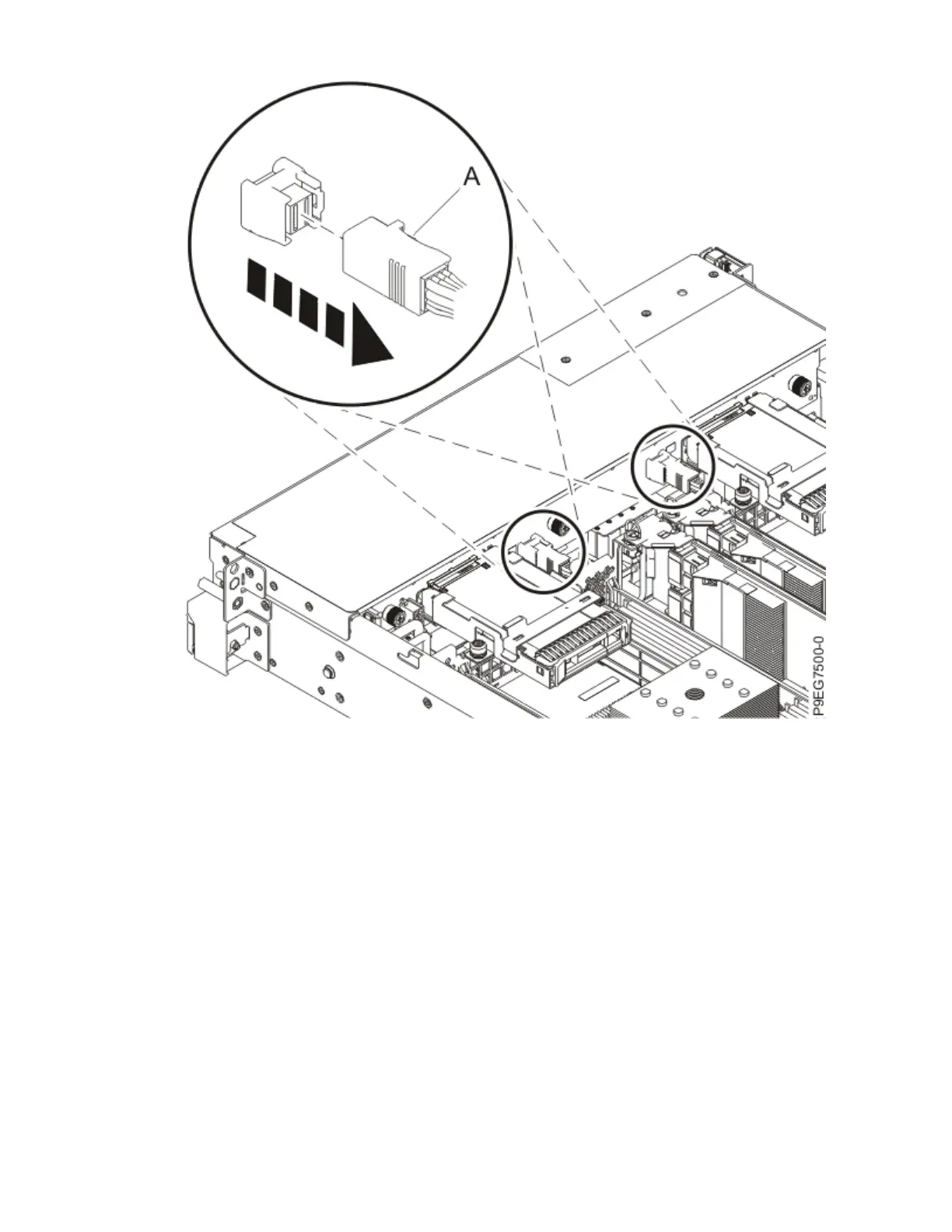

Figure 22. Unplugging the front SAS cables
g) Twist the screws (A) counterclockwise to release the SAS RAID adapter. Lift both the SAS RAID
adapter and the front SAS cable (or cables) out of the slot. Ensure that the front SAS cable does
not catch on any components while you are lifting the SAS RAID adapter out of the slot.
See the following gure.
Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H,
or 9223-22S 25
