Figure 23. Removing the SAS RAID adapter
h) Place the SAS RAID adapter on an appropriate ESD surface.
i) If a second SAS RAID internal adapter is present, repeat steps “9.a” on page 22 through “9.h” on
page 26.
10. Remove the NVMe M.2 carrier cards, if present. Otherwise, continue with the next step.
a) Twist the screws (A) counterclockwise to release the NVMe M.2 carrier card.

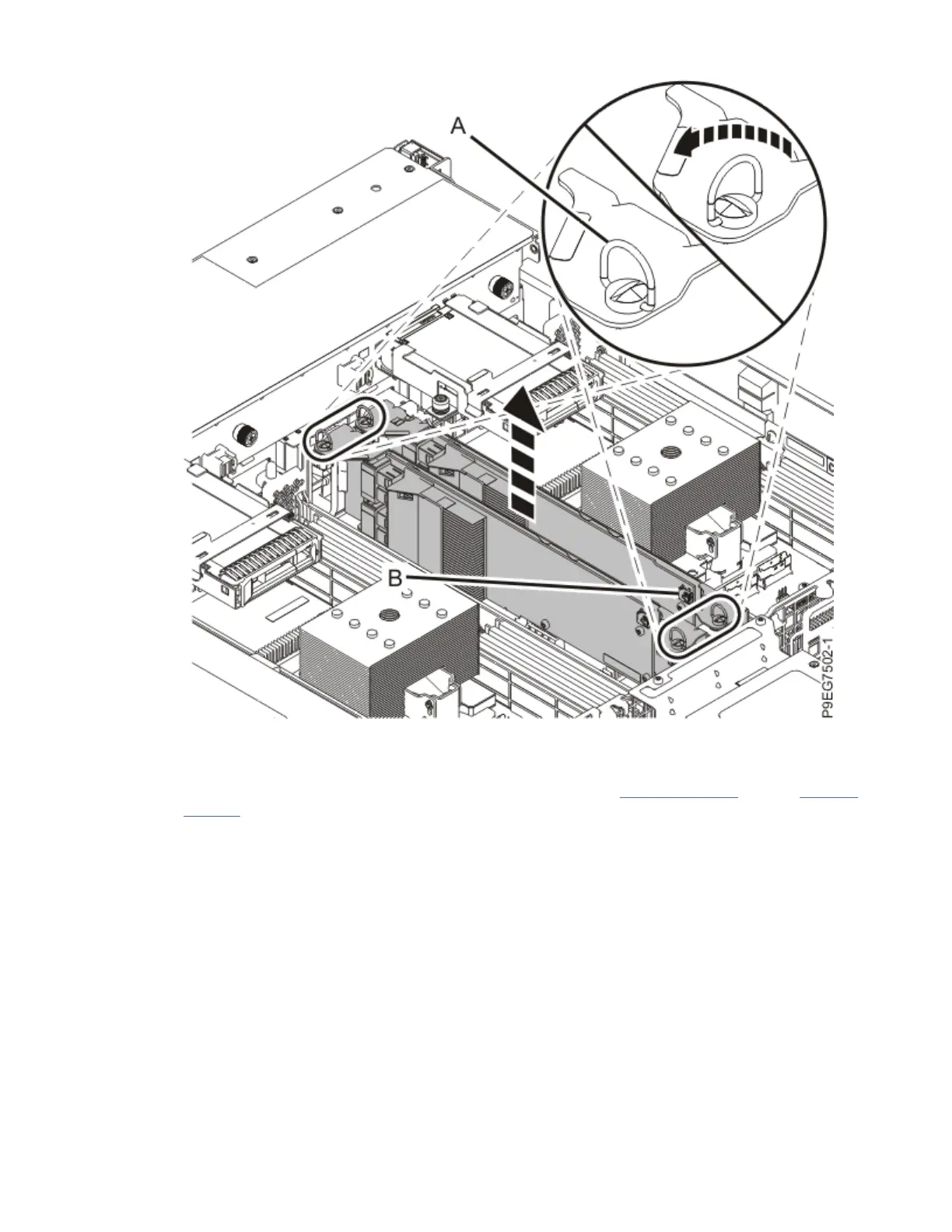

b) Lift the NVMe M.2 carrier card out of the slot as shown in the following gure.
26
Power Systems: System backplane
