• 4 Thick washers [6.4 mm (¼”)]
• 4 Spacers

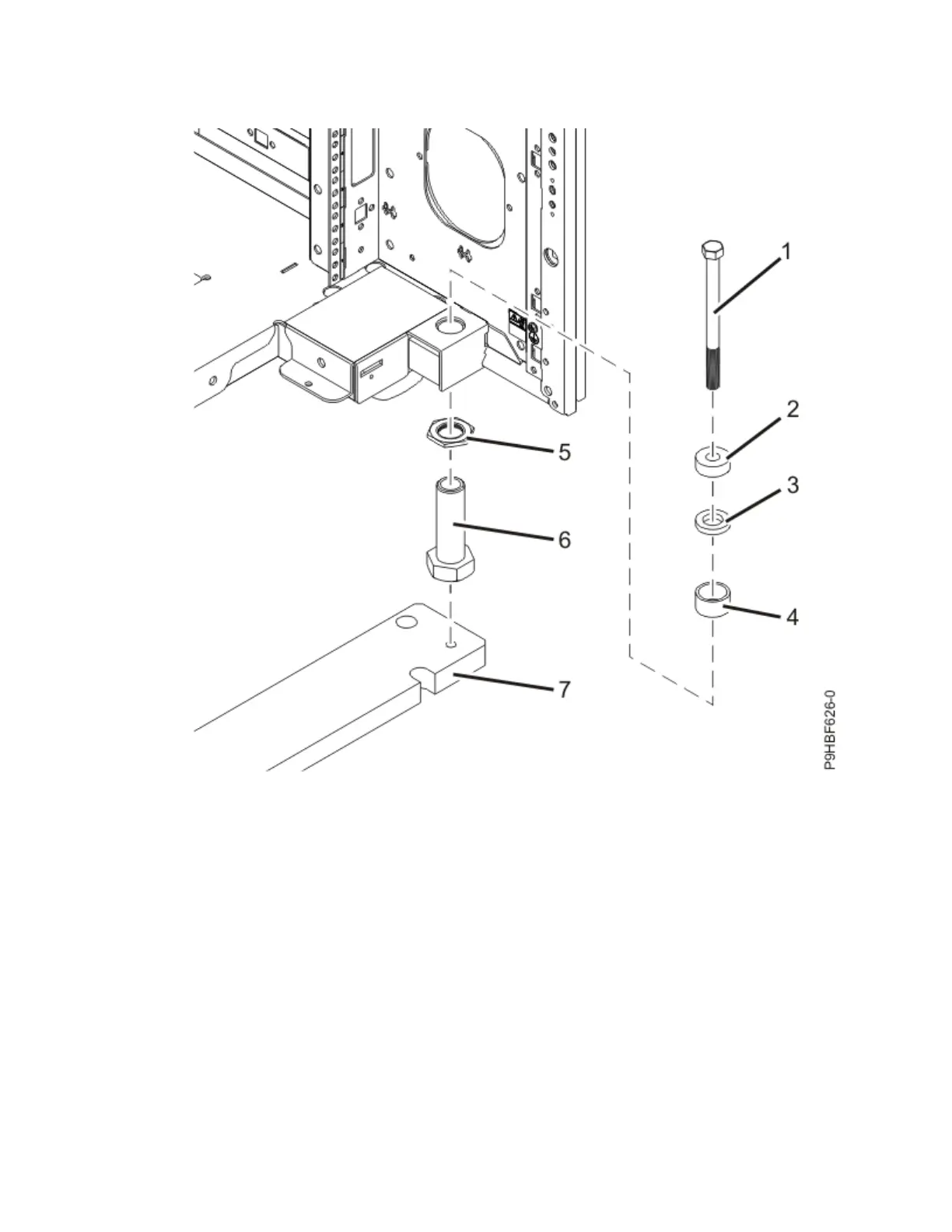

Figure 69. Rack bolt-down hardware
1
Rack-mounting bolt
2
Thick washer (12.7 mm)
3
Thick washer (6.4 mm)
4
Spacer
5
Jam nut
6
Leveling foot
7
Mounting plate
4. Position the two mounting plates in the approximate mounting location under the rack.
