3. Locate the hardware mounting kit and the two mounting plates. Refer to the following illustration
when reviewing the contents of the hardware mounting kit. The hardware mounting kit contains the
following items:
• 4 Rack-mounting bolts
• 4 Thick washers [12.7 mm (½”)]
• 4 Thick washers [6.4 mm (¼”)]
• 4 Spacers

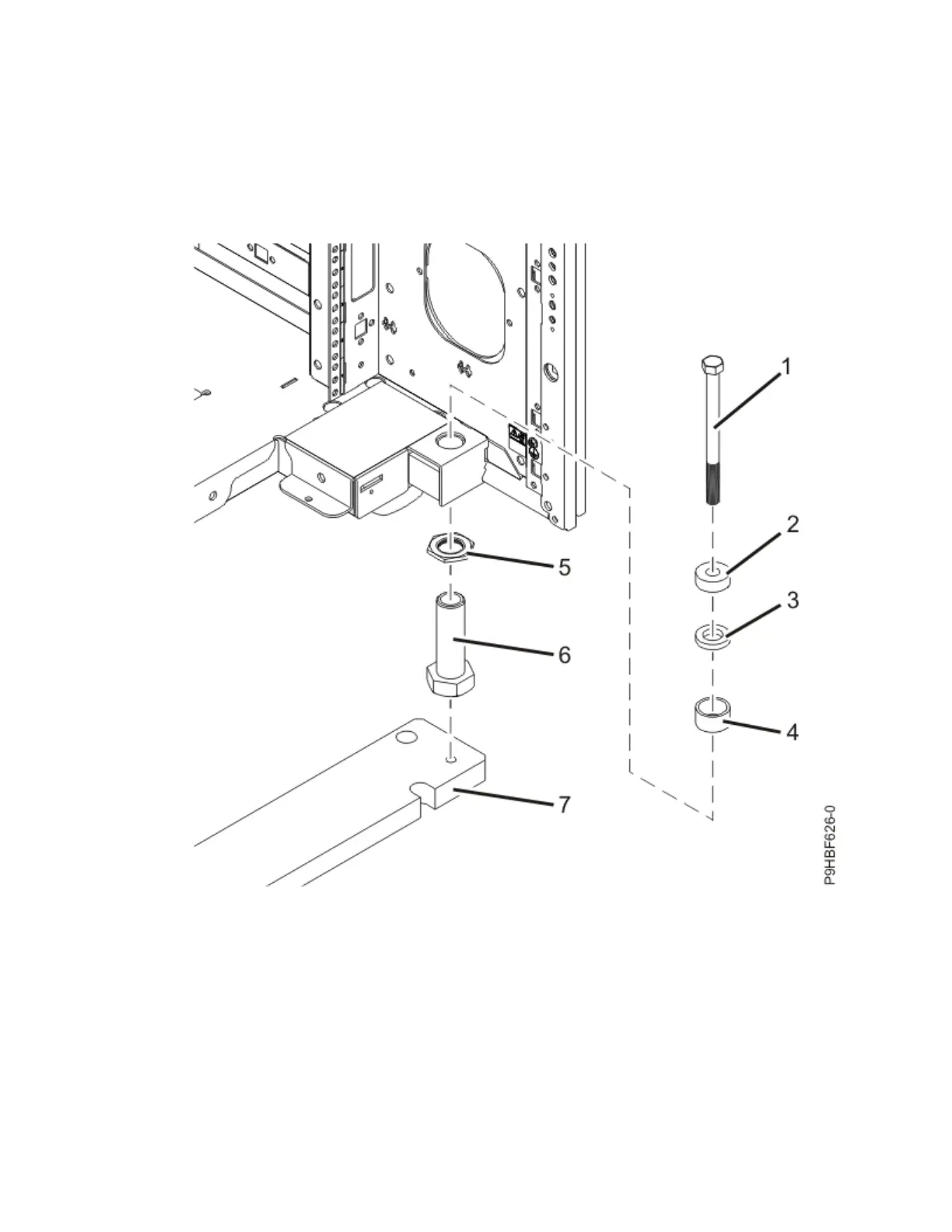

Figure 74. Rack bolt-down hardware
1
Rack-mounting bolt
2
Thick washer (12.7 mm)
3
Thick washer (6.4 mm)
4
Spacer
5
Jam nut
