should be ordered at the same time the rack is ordered. The ruggedized kit brackets are installed at the
manufacturer.
Releasing or securing the ruggedized brace
Before you begin

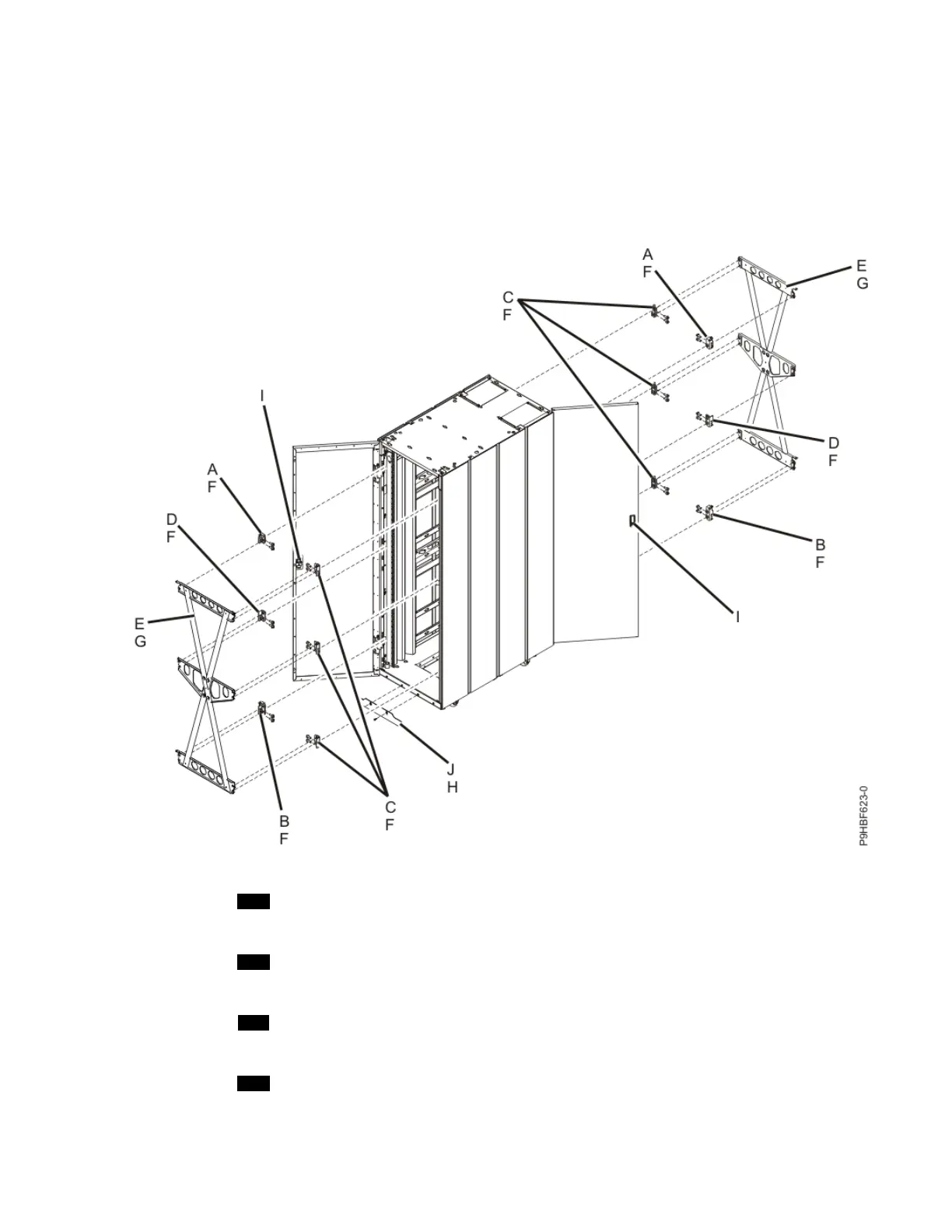

The following illustration highlights the contents of the kit and the approximate location of each bracket
and hinges in the event that you need to uninstall and reinstall a part.
Item Description
A/F A Hinge bracket (top)
F M8 x 20 Hex bolt, Hinge bracket (top)
B/F B Hinge bracket (bottom)
F M8 x 20 Hex bolt, Hinge bracket (bottom)
C/F C X brace latch bracket
F M8 x 20 Hex bolt, X brace latch bracket
D/F D X brace latch bracket (hinge side)
F M8 x 20 Hex bolt, X brace latch bracket (hinge side)
Racks and rack features 123
