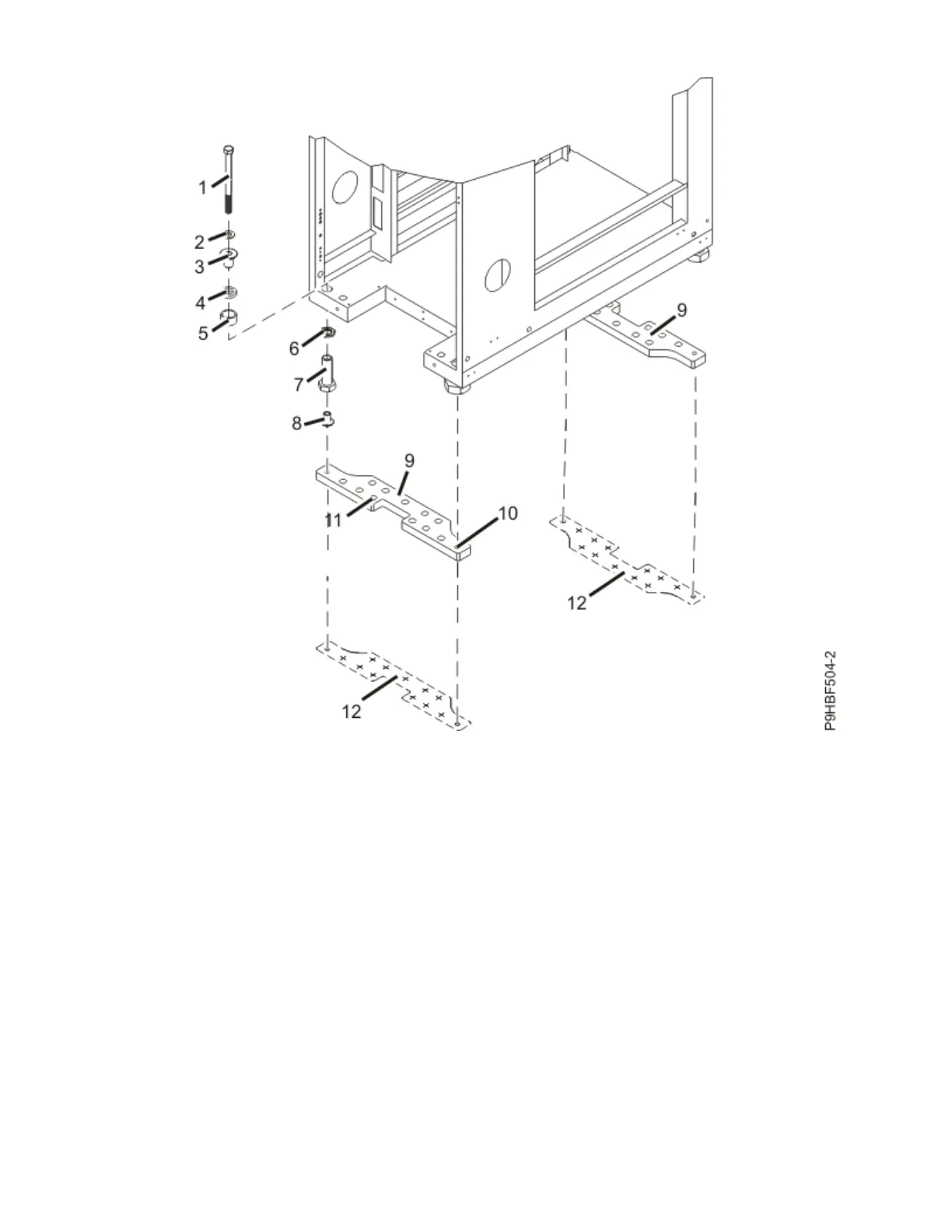

Figure 6. Securing the rack with the triangular brace to the floor
1
Rack-mounting bolt
2
Thin washer
3
Top plastic isolator bushing
4
Thick washer
5
Spacer
6
Jam nut
7
Leveling foot
8
Lower plastic isolator bushing (used only on DC powered systems)
Racks and rack features
9
22
24
Table of Contents
Default Chapter
3
Table of Contents
3
Safety Notices
5
Racks and Rack Features
15
7014-T00 and 7014-T42 Racks
15
Installing the 7014-T00 and 7014-T42 Racks
15
Installing the IBM Enterprise Slim Rack (7965-S42) Rack and Features
111
Completing a Parts Inventory
112
Rack Safety Notices
112
Positioning and Leveling the Rack
114
Attaching the Rack to a Concrete Floor
114
Attaching the Rack to a Concrete Floor Beneath a Raised Floor
120
Connecting Multiple Racks with Rack-To-Rack Attachment Kit for a 24-Inch Pitch
126
Connecting Multiple Racks with the Rack-To-Rack Attachment Kit for a 600 MM Pitch
128
Attaching the Stabilizer Brackets
130
Connecting the Power Distribution System
132
Attaching the Rack Doors
132
Ruggedized Kit for the 7965-S42 Rack
136
Earth (Ground) Bonding the Rack
138
Installing the Side Cover
142
Installing an Extender to the Rack
143
Installing the Airflow Management Kit
145
Removing the Rack Top Cover
148
Replacing the Top Cover
152
Installing the Rear Door Heat Exchanger
153
Water Cooling System Specification and Requirements
173
Notices
185
Accessibility Features for IBM Power Systems Servers
186
Privacy Policy Considerations
187
Trademarks
187
Electronic Emission Notices
187
Class a Notices
187
Class B Notices
191
Terms and Conditions
