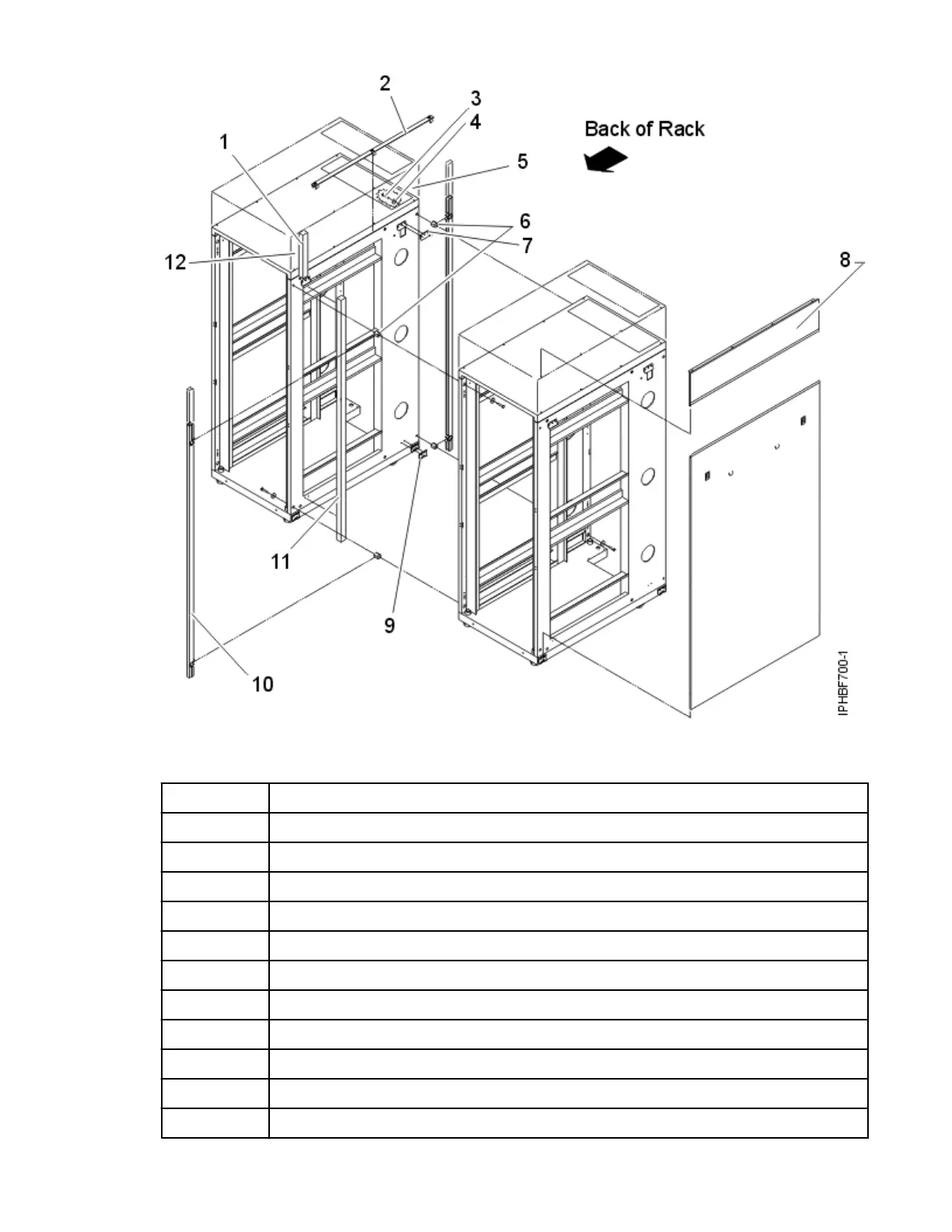

Figure 18. Removing the side panels, Z and J brackets, and installing standoffs and long foam to
connect multiple racks
Item
Description
1 Short foam strip (only on a 42U rack)
2 Top trim strip
3 Screw
4 Washer
5 Rack top cover (only on a 42U rack)
6 Standoff
7 Z bracket
8 Rack top side cover (only on a 42U tall rack)
9 J bracket
10 Front and rear trim strips
11 Long foam strip
24 Power Systems: Racks and rack features
