h. If the rack is on a raised floor, attach the -48 V DC power source cables to the rear of the rack with
cable-restraint straps.

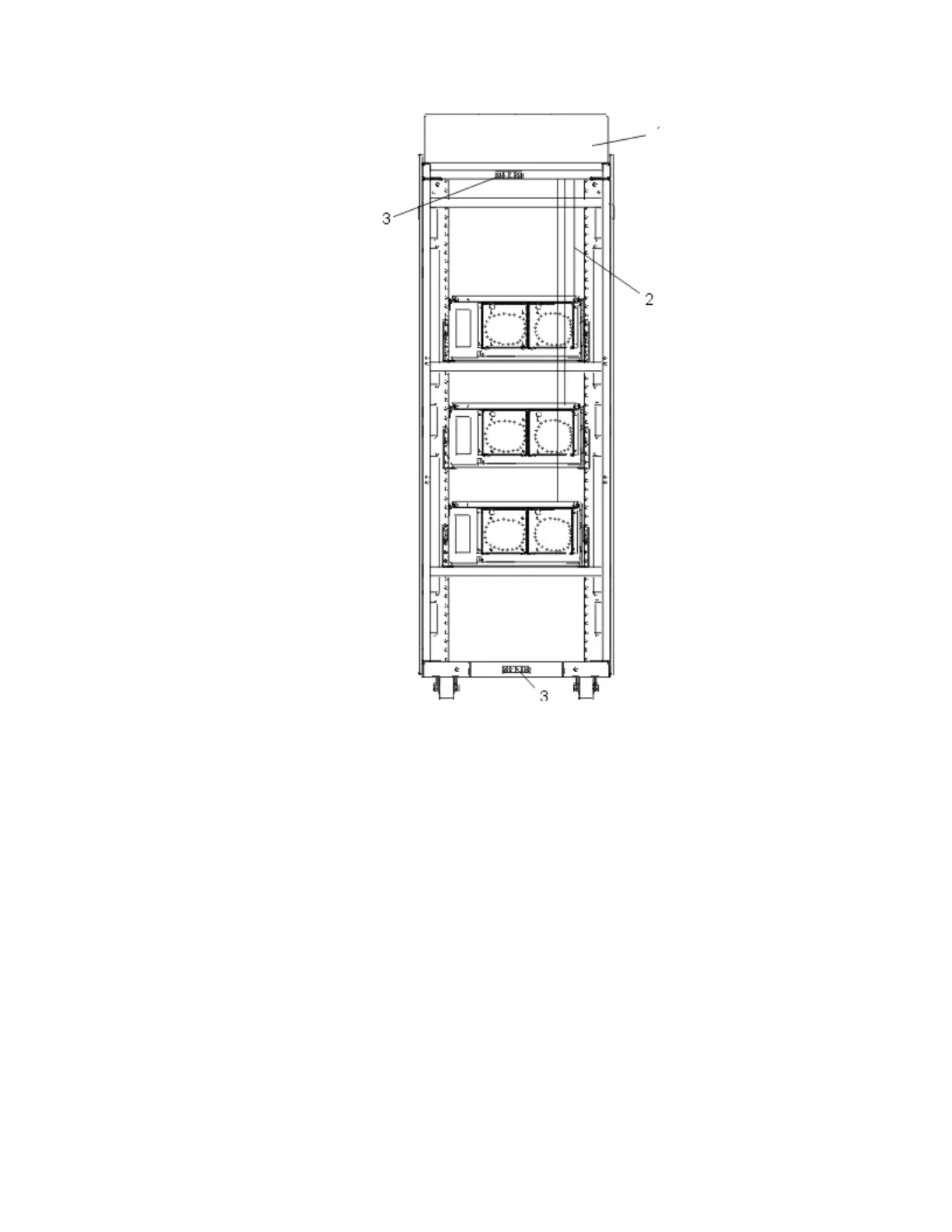

Figure 33. Cable locations
Item
Description
1 Rear view of rack (DC)
2 Power cable, power return cable, and ground
3 Ground cable (Install at either top or bottom of the rack)
5. Reinstall the -48 V DC bus bar shield.
6. Reinstall the top cover on the DC power distribution panel.
7. Reinstall the cable channel cover.
