If you want to install AC outlets on the front or rear AC outlet-mounting plate, complete the following
steps:
Procedure
1. Determine the number of AC outlets that you are installing.
2. Conrm with your contractor that the number and location of AC outlets to be installed are correct.
3. Remove the blank ller plates from the AC outlet-mounting plates for the number of AC outlets that
you are installing.
4. Install the AC outlets on the AC outlet-mounting plate.

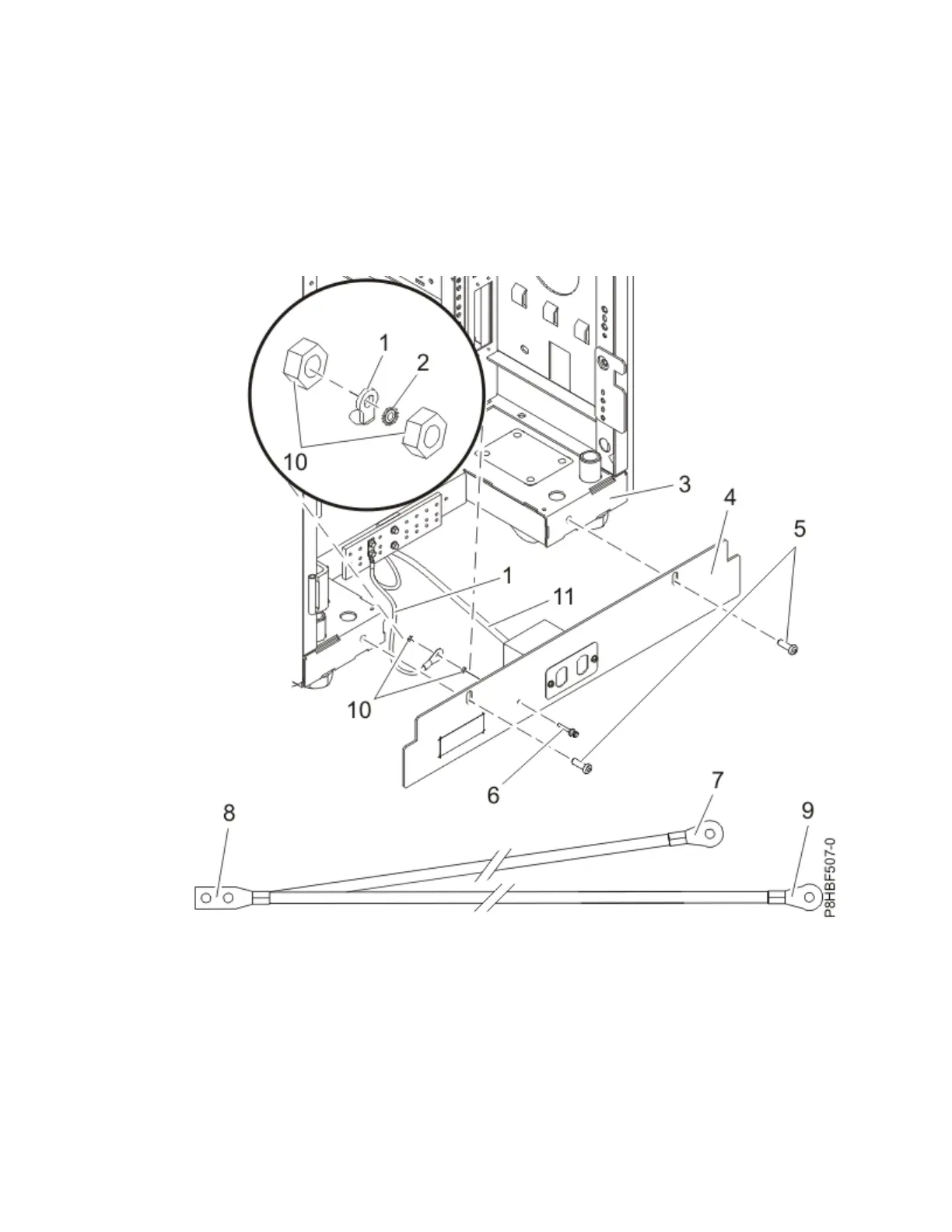

Figure 35. Installing the mounting plate
Item
Description Item Description
1 Ground cable 7 Ground connector (short end of
ground cable)
2 Star washer 8 "Y" end of ground cable
3 Rear of rack 9 Long end of ground cable
4 Mounting plate 10 Ground lug nut (quantity 2)
Racks and rack features 49
