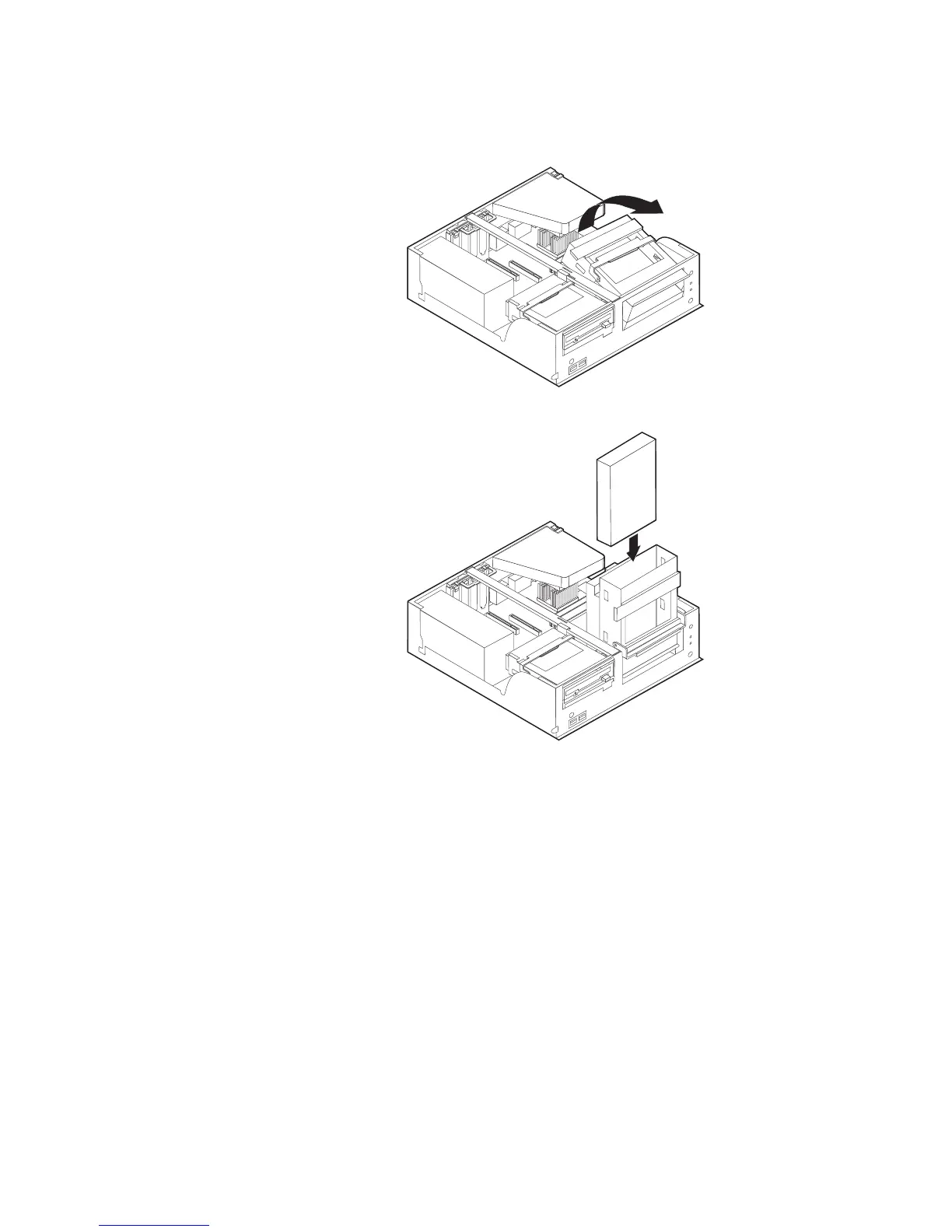

5.
Pivot
the
drive
bay
latch
handle
toward
the
front
of
the
computer
and
then
pivot
the
drive
bay
cage
upward,
as
shown,
until
it
is
latched
in
the
up
position.
6.
Install
the
drive
into
the
bay.
Align
the
screw
holes
and
insert
the
two
screws.
7.
Each
integrated
drive
electronics
(IDE)
drive
requires
two
cables;
a
four-wire
power
cable
that
connects
to
the
power
supply,
and
a
signal
cable
that
connects
to
the
system
board.
For
a
CD-ROM
drive,
you
might
also
have
an
audio
cable.
To
connect
a
CD-ROM
drive
or
DVD-ROM
drive
to
your
computer,
follow
these
steps:
a.
Locate
the
signal
cable
that
comes
with
your
computer
or
with
the
new
drive.
b.
Locate
the
PATA
secondary
IDE
connector
on
the
system
board.
See
“Identifying
parts
on
the
system
board”
on
page
10.
c.
Connect
one
end
of
the
signal
cable
to
the
PATA
secondary
IDE
connector
on
the
system
board
and
the
other
to
the
CD-ROM
drive
or
DVD-ROM
drive.
16
