Types
8303,
8304,
and
8312
The
following

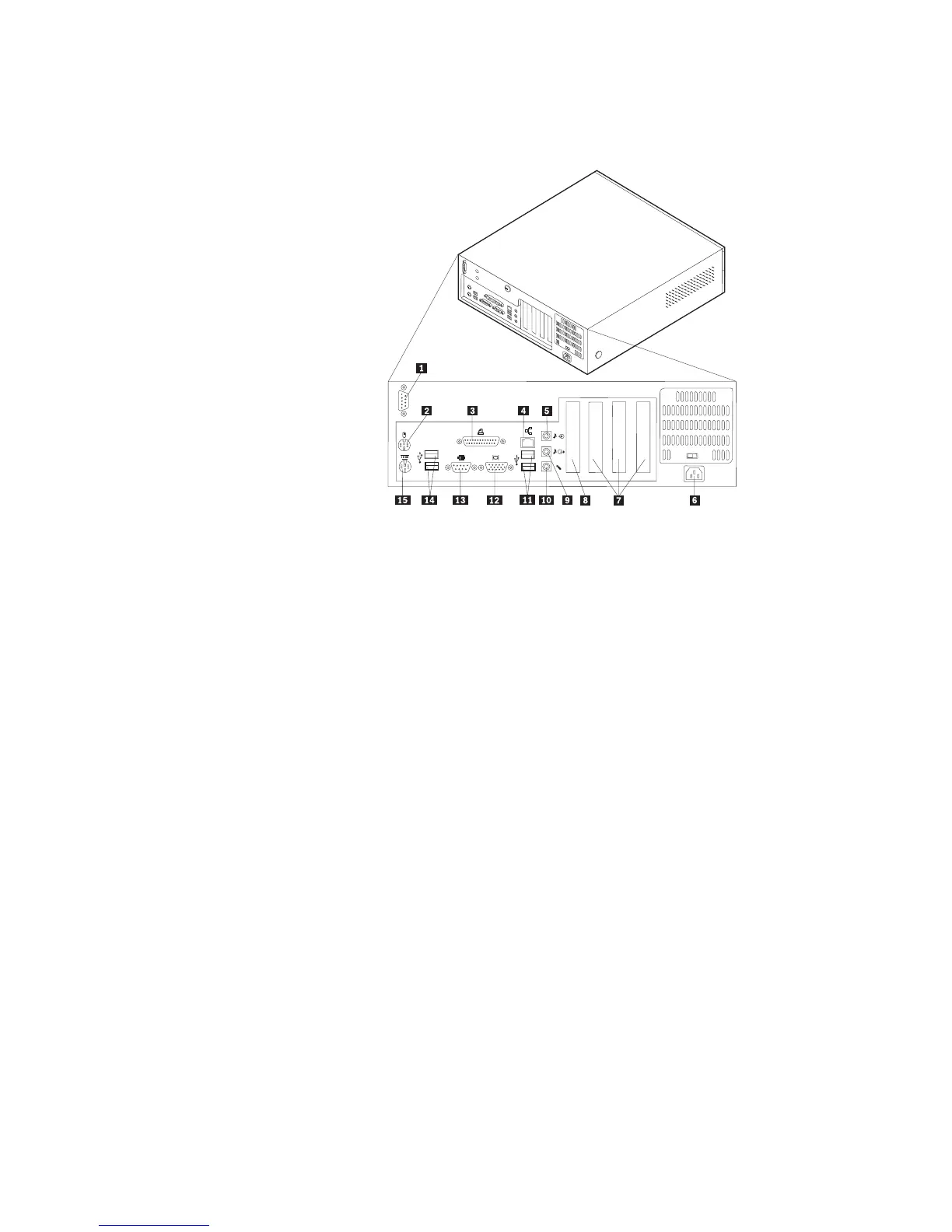

illustration
shows
the
locations
of
the
connectors
on
the
rear
of
the
computer.
1Serial
connector
9
Audio
line
out
connector
2Mouse
connector
10Microphone
connector
3Parallel
connector
11USB
connectors
4Ethernet
connector
12VGA
monitor
connector
5Audio
line
in
connector
13Serial
connector
6Power
connector
14USB
connectors
7PCI
slots
15Keyboard
connector
8AGP
slot
(some
models)
Note:
Some
connectors
on
the
rear
of
the
computer
are
color-coded
to
help
you
to
determine
where
to
connect
the
cables
on
your
computer.
Chapter
5.
Installing
Options
35
