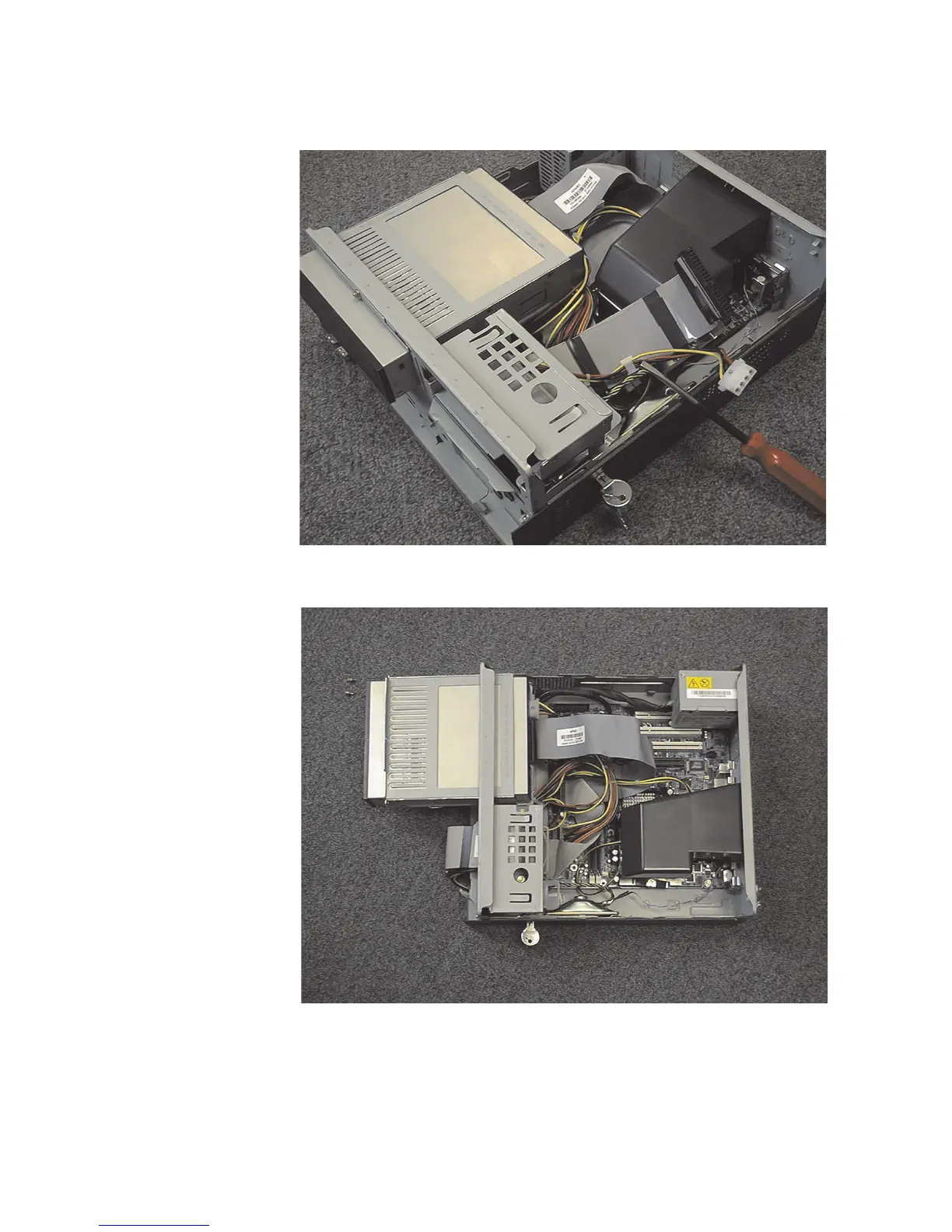

a.
Route
the
hard
disk
drive
power
cable
through
the
plastic
clip
attached
to
the
hard
disk
drive
IDE
cable
as
shown.
b.
Route
the
hard
disk
drive
IDE
cable
around
the
power
plug
on
the
board
as
shown.
c.
Route
both
the
hard
disk
drive
IDE
cable
and
the
hard
disk
drive
power
cable
through
the
plastic
clip
shown
on
the
back
of
the
power
supply.
84
Hardware
Maintenance
Manual
