3. Two PCIe2 SAS adapters with HD connectors to three 5887 enclosures via a mode 1 connection.

v No cascading allowed.

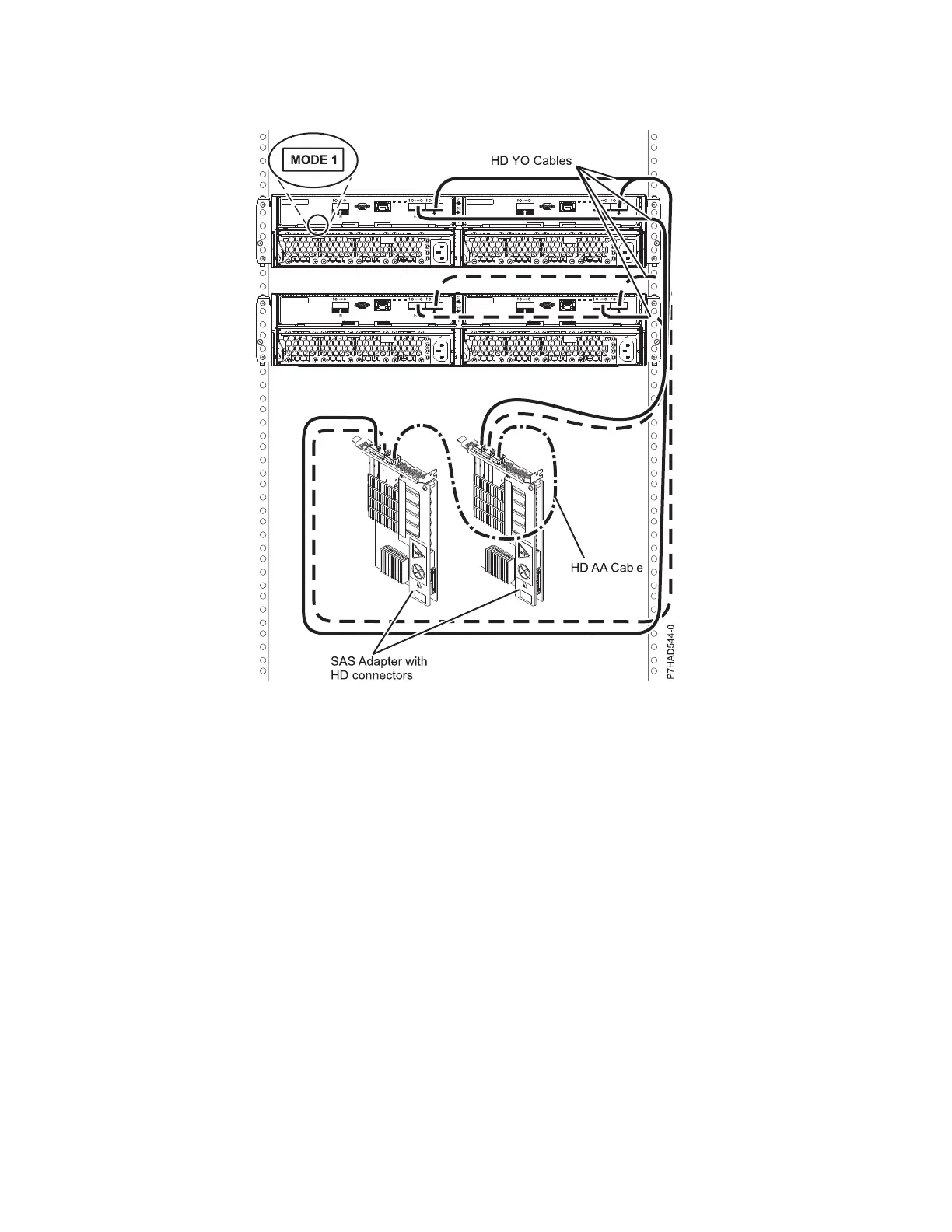

Figure 86. Mode 1 connection of two 5887 enclosures by using HD connectors to two PCIe2 SAS adapters

156 Site and hardware planning
