4. Two pairs of PCIe2 SAS adapters with HD connectors to one 5887 enclosure via a mode 2
connection.
v No cascading allowed.
v HD AA cable is required.

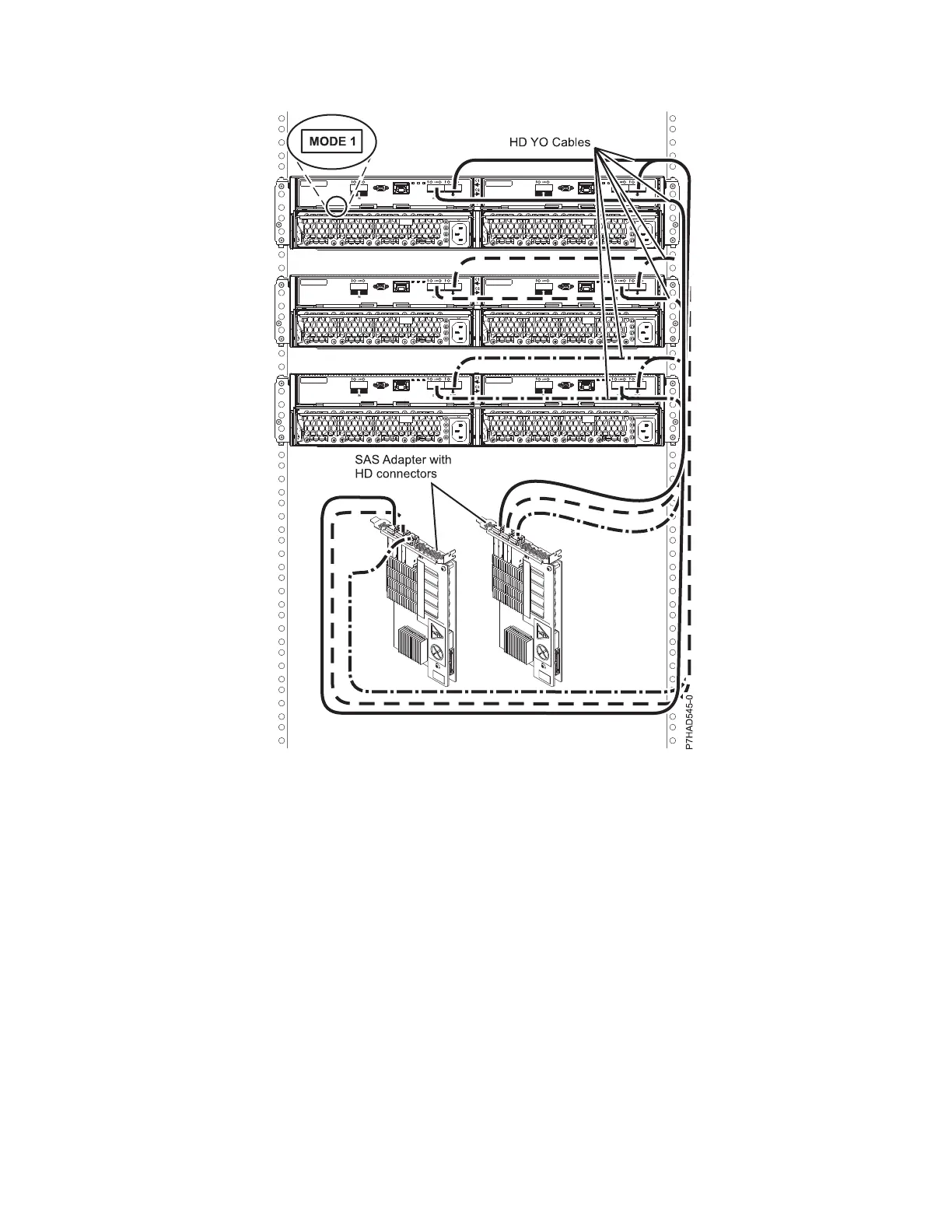

Figure 87. Mode 1 connection of three 5887 enclosures to two PCIe2 SAS adapters with HD connectors
Site and hardware planning 157
