1. The 1.8 meter rack has 10 EIA units of space remaining. This space will be filled with a 5 EIA filler
panel, a 3 EIA filler panel, and two of the 1 EIA filler panels. Because the rack does not have power
distribution, the model 830 requires a power cord of sufficient length to reach the receptacle. The
power cord for model 830 must be used to determine the appropriate receptacle.
2. Acoustic doors are available for the IBM racks. Feature code 6248 is available for the 0551 and
7014-T00 racks. Feature code 6249 is available for the 0553 and 7014-T42 racks. The overall sound
reduction is approximately 6 dB. The doors add 381 mm (15 in.) to the depth of the racks.
3. For a description of noise emission values, see Acoustics.
Caster and leveler locations
Figure 4 provides the caster and leveler locations for the 7014-T00, 7014-T42, 0551, 0553 and 0555 racks.
Model 0551, 0553, 0555, and 7014 rack configurations
The 0551 or 7014-T00 provide a 1.8 meter rack (36 EIA units of total space). The 7014-T42 or 0553
provides a 2.0 meter rack (42 EIA units of total space).

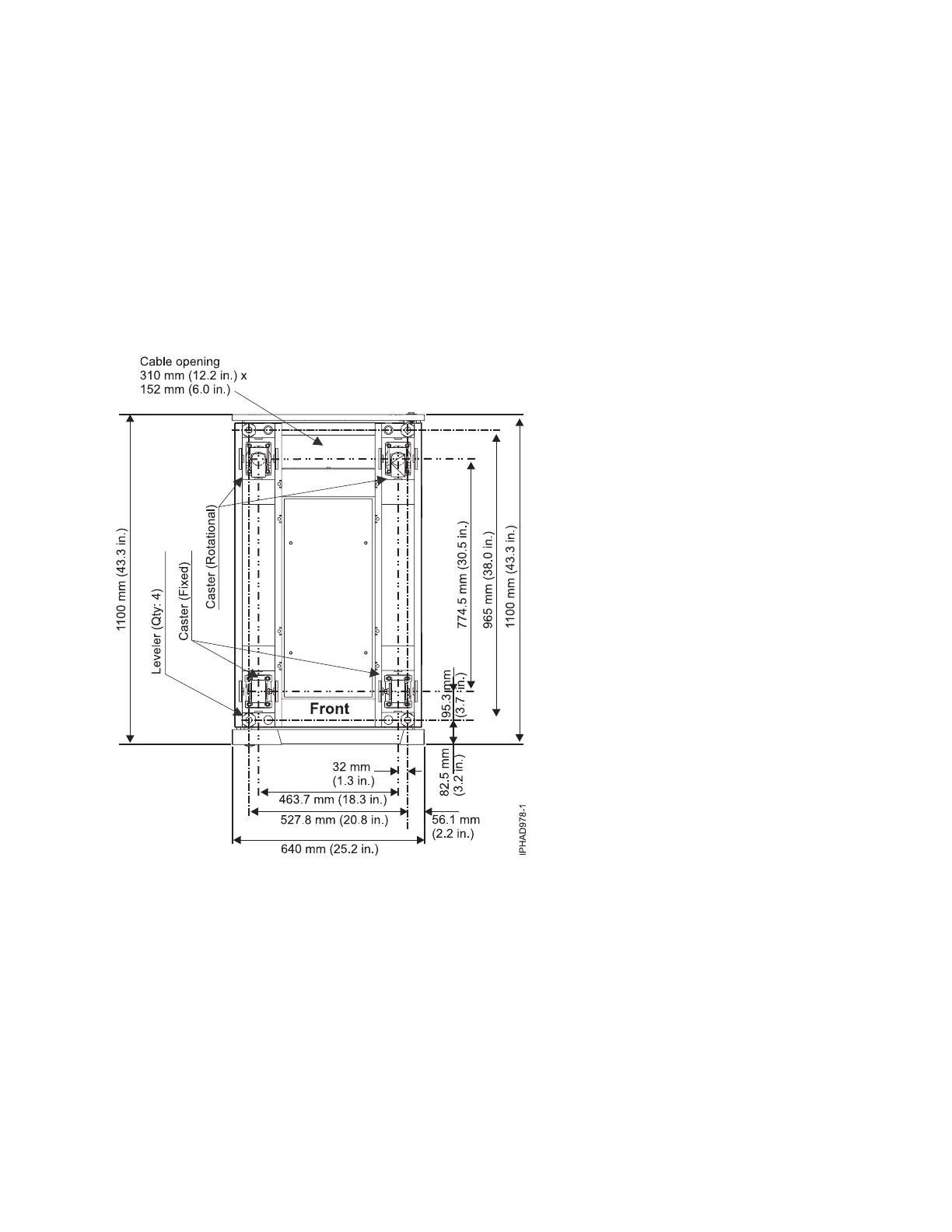

Figure 4. Caster and leveler locations
Site and hardware planning 21
