Using Interconnected V-Cables
The standard multiaccess enclosure base Parallel Channel Adapter connection to a
channel is a 1.8 m (6 ft) V-cable and two unique Channel Interface Cables (see
Figure 3-12 on page 3-34 and Figure 3-13 on page 3-35). However, multiple
adapters can be interconnected in a serial fashion by connecting cables as shown
in the figures that follow.
MAE
or

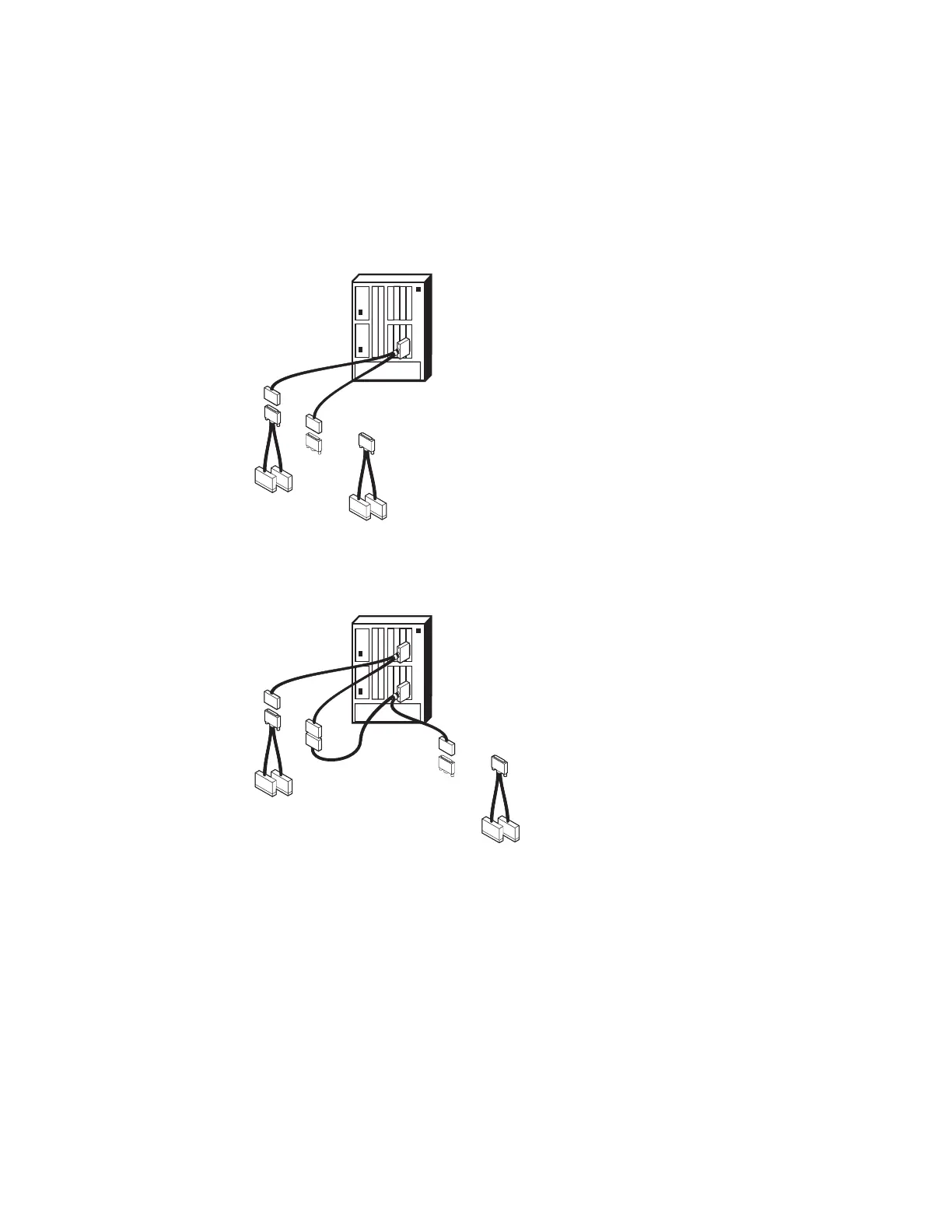

Figure 3-15. Standard Channel Connection
MAE
or
Figure 3-16. Two Adapters Attached to One Channel
Note: For the multiaccess enclosure, the Parallel Channel Adapters can be in
separate multiaccess enclosure.
3-38 3746-9X0: MAE Installation and Maintenance
