Activate MAE Configuration Via CCM
You should be logged ON on the service processor console.
Click on the 3746-9x0 on which you want to work.
The 3746-9x0 menu window is displayed.
Click on the Network Node Processor (NNP) Management option.
Double click on the CCM Controller Configuration and Management option.

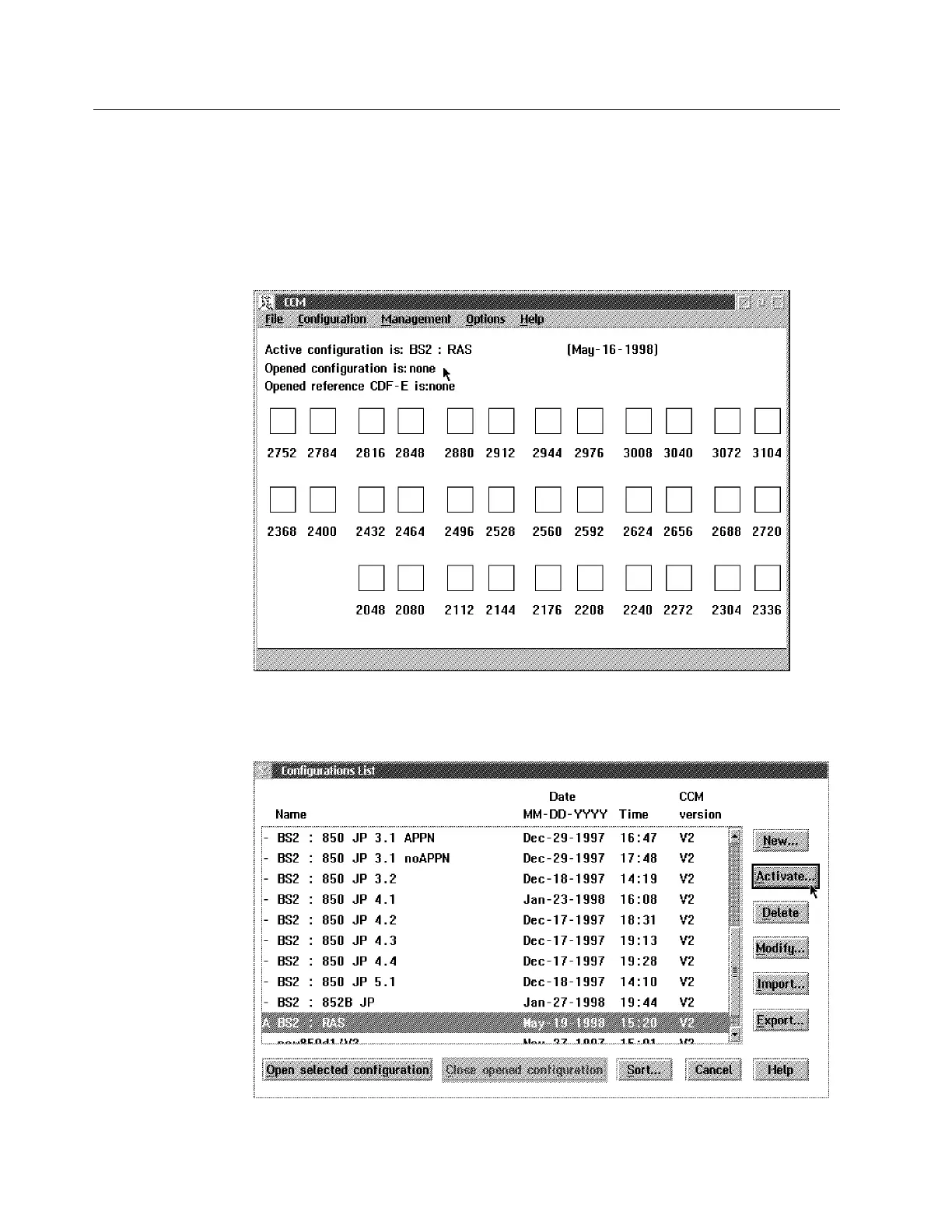

The CCM window is displayed:
Click on File in the title bar, then select Open. The Configuration List window
is displayed:
E-14 3746-9X0: MAE Installation and Maintenance
