14. Connect the ac outlet distribution box to the customer ac power as follows:
a. Plug the power cord .A/ (country dependant) into location IN of the ac
outlet distribution box.
A

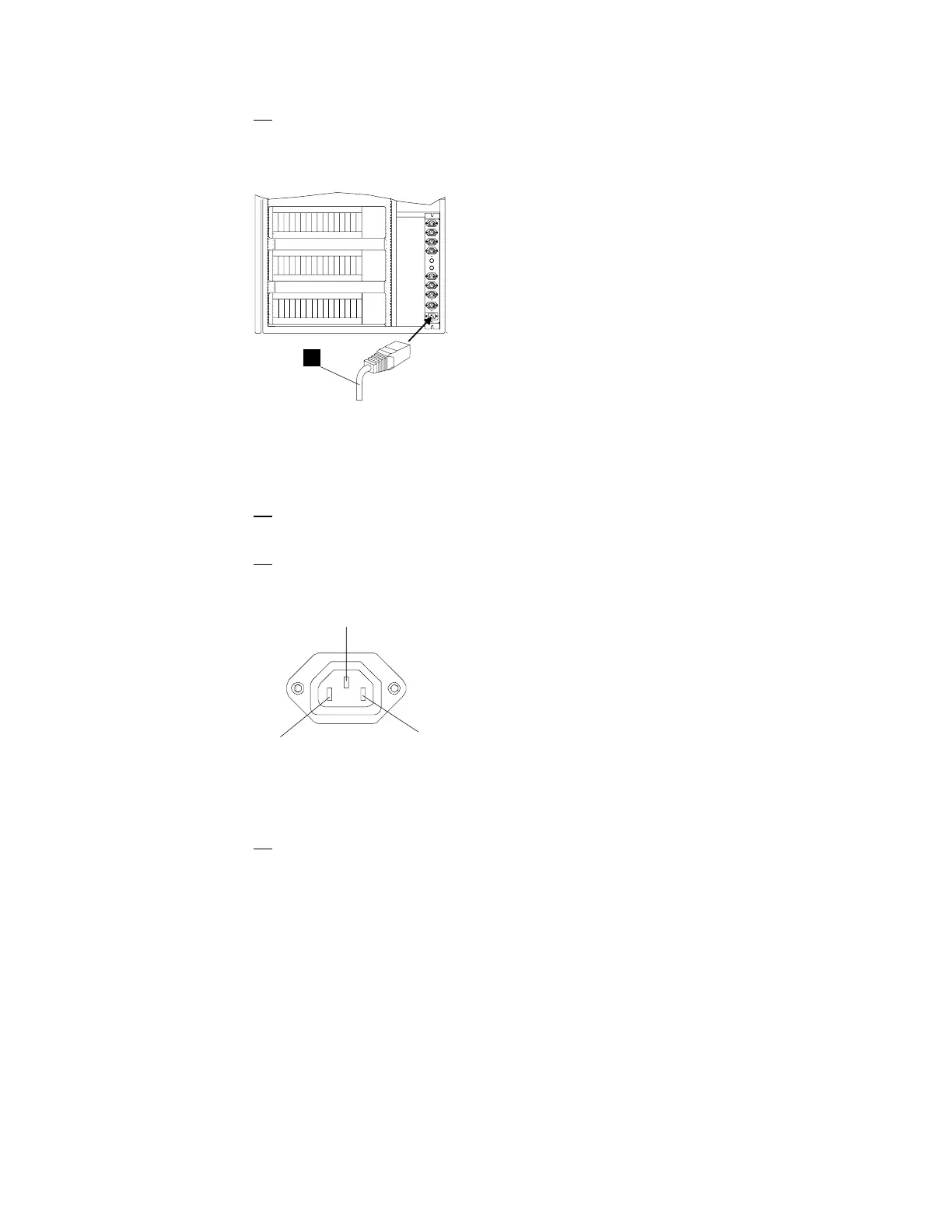

Figure 1-11. Power Cord Installation
b. Route and connect the other end of the power cord to the customer's
power socket.
15. Switch or ask the customer to switch ON the circuit breaker to be used for
the ac outlet distribution box.
16. Verify that the phase is distributed as shown below: if not, notify the
customer and do not proceed until the problem is corrected.
Ground
Neutral
Phase
Figure 1-12. Power Distribution
17. Depending on the service processor type installed, Go to:
7585, “Step 3.1 - Connecting the MAE to a 7585” on page 1-11
6275, “Step 3.2 - Connecting the MAE to a 6275” on page 1-12
1-10 3746-9X0: MAE Installation and Maintenance
