Connect the MAE to the 3746-9X0 thru 8228
Notes
1. You can have to install one or two links (TIC3 - 8228 - TR) from the
3746-9X0 and the MAE.
2. The TIC3(s) can be installed in any position in the basic or expansion
boards of the 3746-9X0.
1. Connect the cable(s) .4/ (PN 43G3953) from the token-ring adapter
connectors .2/ installed in location 1 of the MAE to any free plugs (1 to 8)
of the 8228.
2. Obtain from your customer the cable(s) .3/ PN 72F1236 (9M, 30 Ft) or any
longer token-ring cables. Plug these cables from the 8228 (any free plugs
1 to 8) to the TIC3 connectors .1/ available in the 3746-9X0.
1
2
3
4
3746 Basic or Expansion Board (Rear View)
MAE
8228
8228

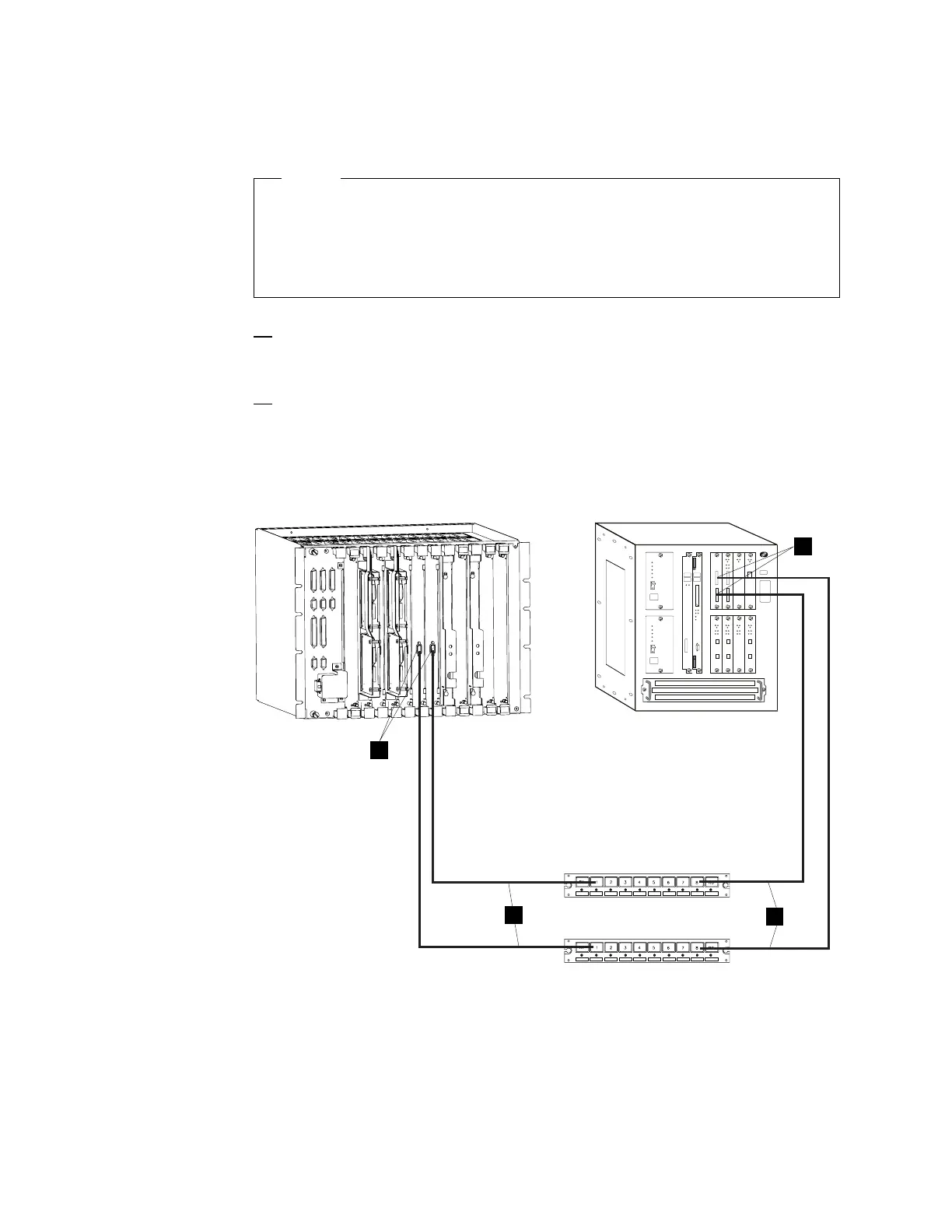

Figure 1-20. Connecting the MAE to the 3746-9X0 via 8228
Go to,“Connect the MAE from the SAC to the SIE Cassette” on page 1-19
1-18 3746-9X0: MAE Installation and Maintenance
