LED Indicators
The Multiaccess Enclosure has a number of light-emitting diodes (LEDs) that
indicate how the unit is functioning.
SAC Card
SAC Card LEDs
(Green and Yellow)
System Card
Power Supply Adapter Card

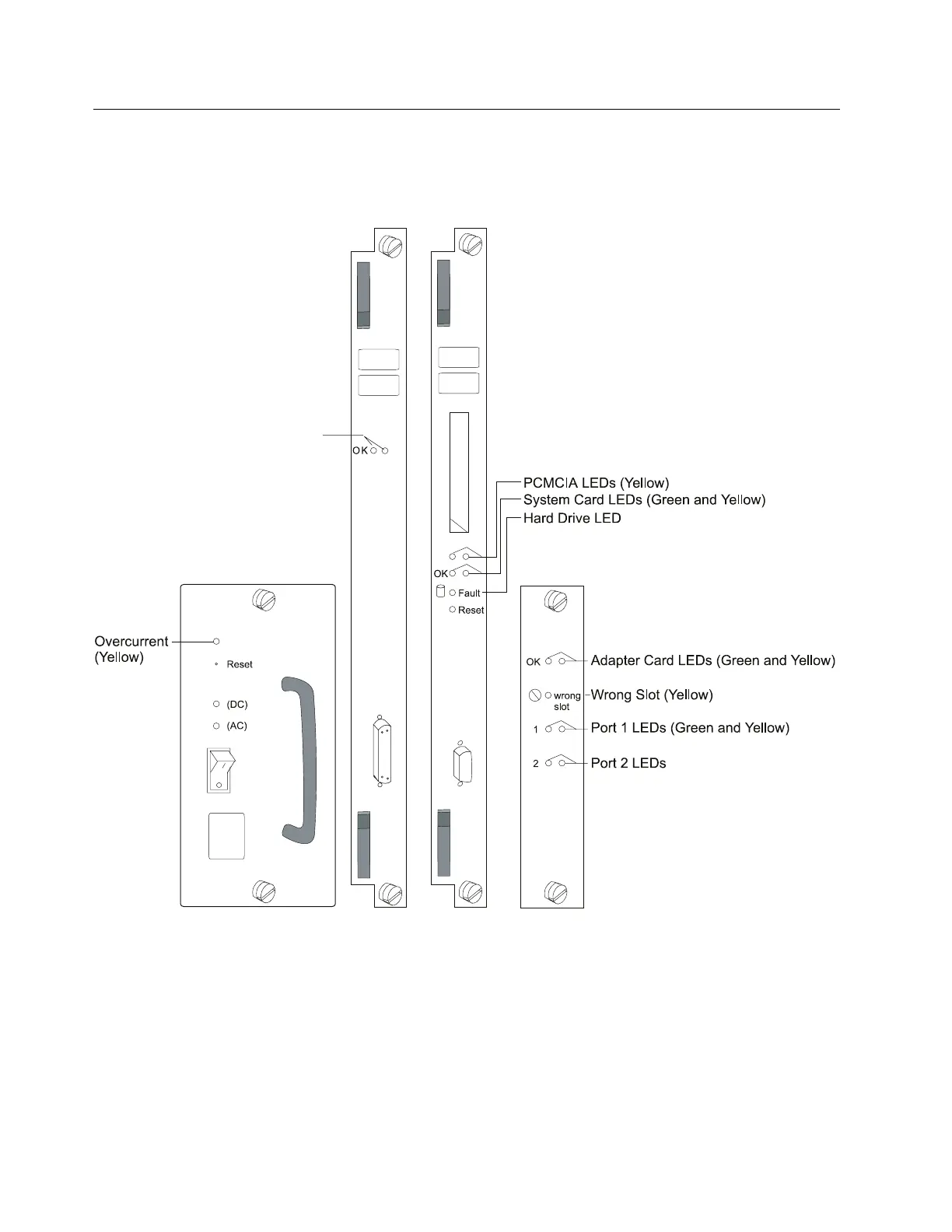

Figure 3-1. Power Supply, System Card, SAC Card, and Adapter Card LEDs
3-2 3746-9X0: MAE Installation and Maintenance
