Are there other units connected to the same range than the suspected unit?
Yes No
038
Go to Step 047 on page 3-14.
039
Check that the other units have their power ON/OFF switch to ON.
Are other units powered ON?
Yes No
040
Go to Step 042
041
Go to Step 053 on page 3-15.
042
Check the corresponding fuse.
Is the fuse OK?
Yes No
043
Switch to OFF all the units controlled by this fuse.
Exchange the defective fuse.
Switch ON all the units controlled by this fuse.
(Step 043 continues)
F2
F1

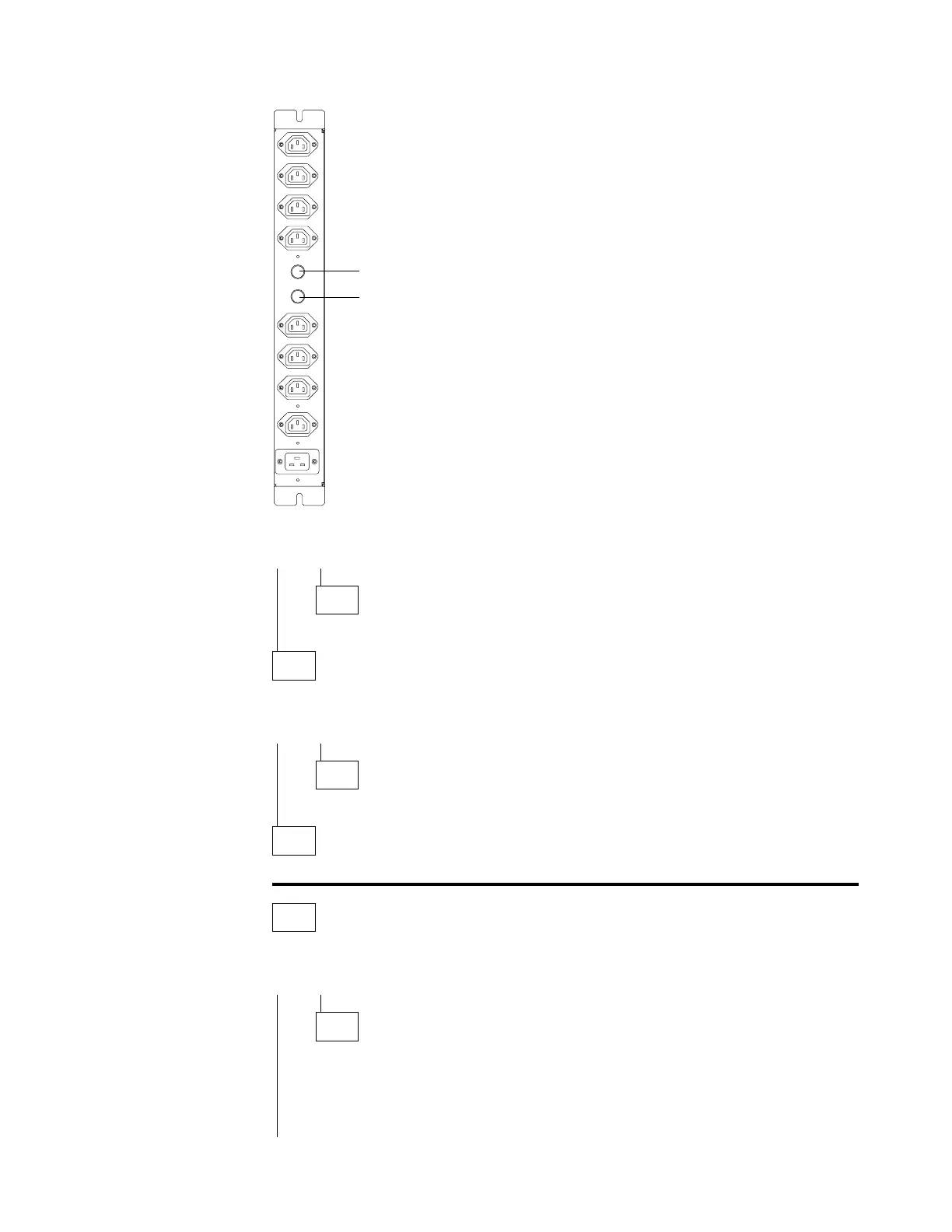

Fuse Location on ac outlet distribution box
On the ac outlet distribution box:
– Fuse F1 controls the range of connectors
J1 to J4
– Fuse F2 controls the range of connectors
J5 to J8.
Check if other units are connected to the same
range of connectors than the suspected unit.
Chapter 3. Multiaccess Enclosure Problem Determination 3-13
To Next Page
