11. Check the cache battery LEDs by examining the green LEDs (C) that is located above the cache
battery pack.
Is the cache battery LED flashing?
Yes, the LED is flashing. No, the LED is not flashing.
ā Go to step 13.
12. Stop removing the cache battery pack.

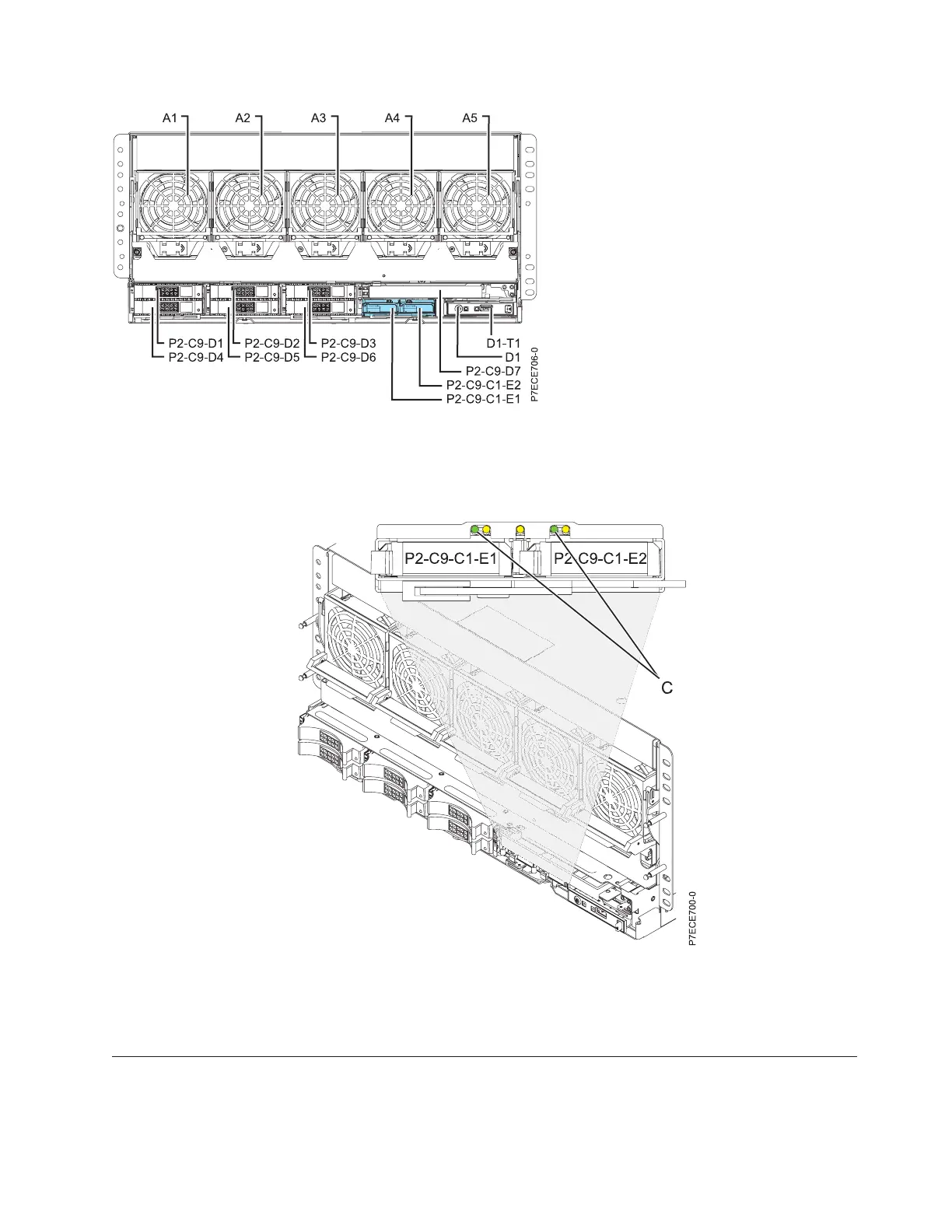

Figure 6. Slot locations of the cache battery pack P2-C9-C1-E1 and P2-C9-C1-E2
Figure 7. Cache battery LEDs
Removing and replacing the cache battery pack 13
